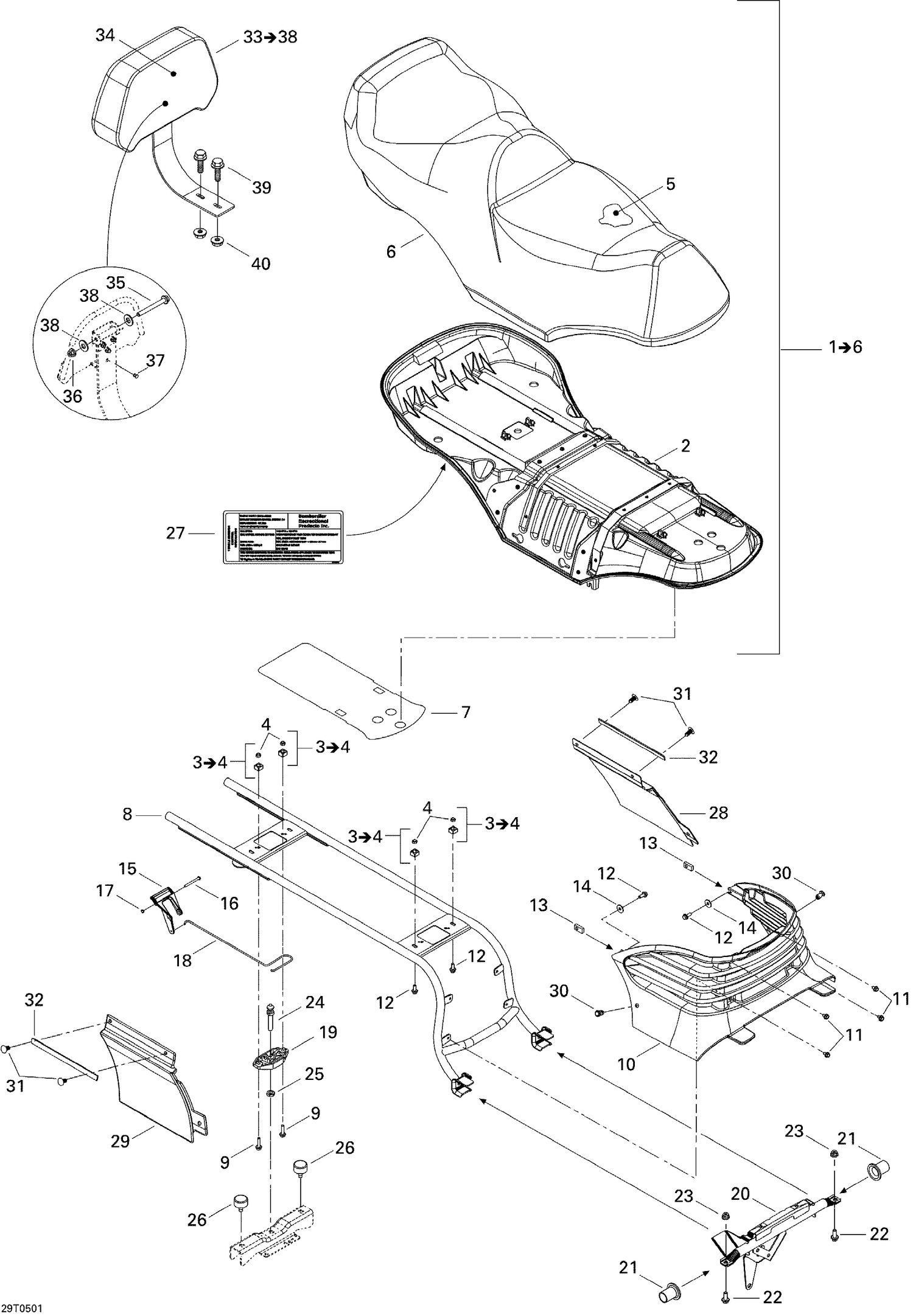

09- Seat
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Seat Base |
| 4 | 232061600 | Hex. Nut M6 |
| 5 | Not | Available As Spare Part - Seat Foam |
| 7 | 708000434 | Reflective Sheet |
| 8 | 708000345 | Seat Support |
| 9 | 207662544 | Hex. Flange Screw M6 X 25 |
| 10 | 708000388 | Engine Cover |
| 11 | 210261050 | Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 12 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 13 | 708000042 | Nut Housing M6 |
| 14 | 224061201 | Flat Washer |
| 15 | 708000010 | Lever Latch |
| 16 | 293150062 | SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership |
| 17 | 389804300 | Push Nut |
| 18 | 708000015 | SPRING - Call your local BRP dealership |
| 19 | 708000034 | Latch Base |
| 20 | 708000411 | Seat Pivot |
| 21 | 708000019 | SEAT BUSHING - Call your local BRP dealership |
| 22 | 207682046 | Hex. Flange Screw M8 X 20 |
| 23 | 233281416 | Hex. Elastic Flange Nut M8 |
| 24 | 291000945 | SEAT STUD - Call your local BRP dealership |
| 25 | 232100600 | Hex. Jam Nut M10 |
| 26 | 708000758 | Rubber Stopper This part replaces 708000006. |
| 27 | 704900876 | Emission Label |
| 30 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 31 | 293730010 | Black Dart |
| 32 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 34 | 708000408 | Backrest Cover |
| 35 | 207089544 | Hex. Screw M8 X 95 |
| 36 | 233281414 | Hex. Flange Elastic Nut M8 |
| 37 | 293150104 | Pop Rivet 3/16" |
| 38 | 706200281 | Hardened Washer |
| 39 | 207682544 | Hex. Flange Screw M8 X 25 |
