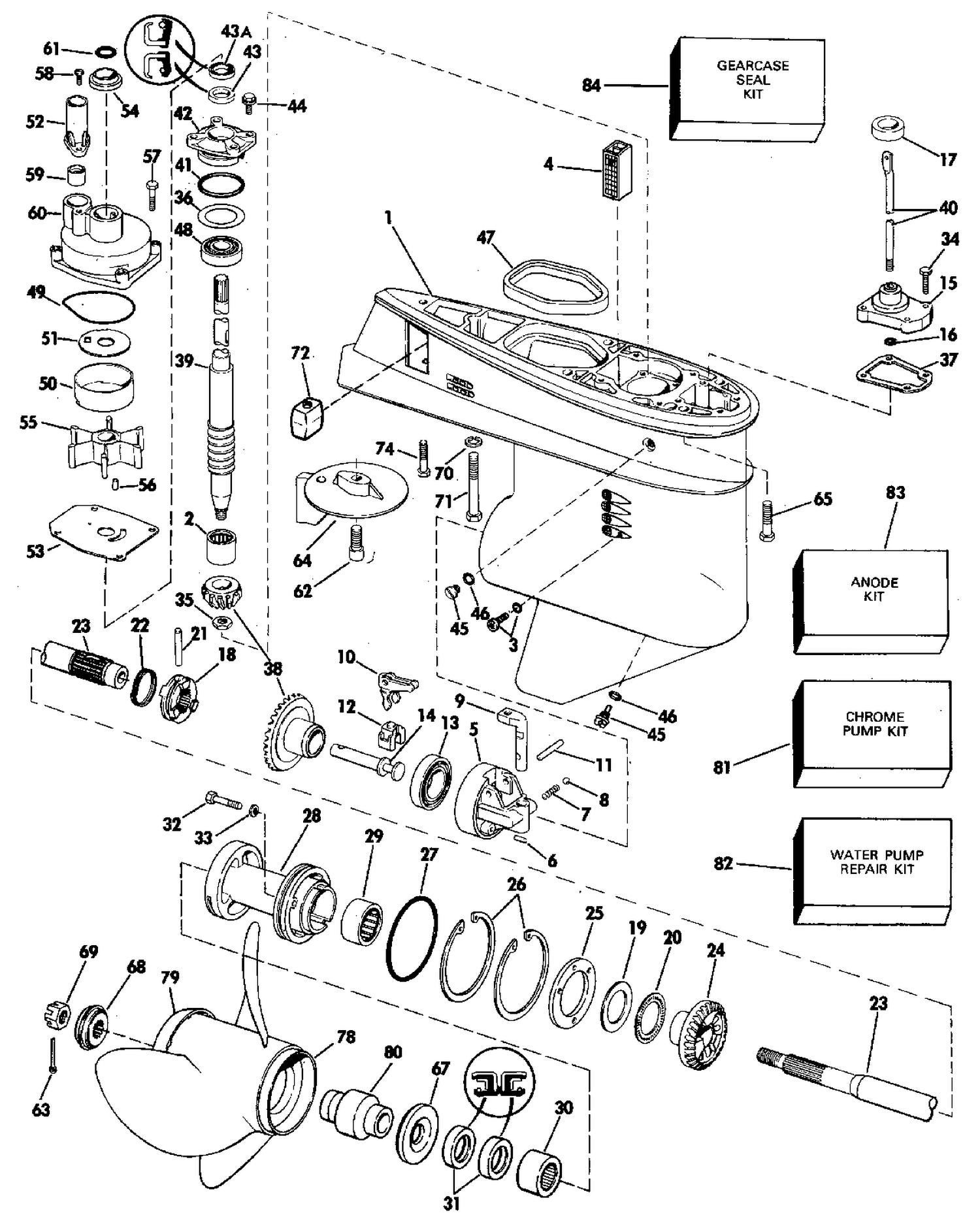

GEARCASE
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0392196 | GEARCASE & BRG ASSY |
| 5 | 0387066 | BEARING HOUSING & PIN |
| 9 | 0322636 | DETENT, Shifter |
| 10 | 0320120 | LEVER, Shifter |
| 13 | 3854249 | BEARING, Driveshaft, lower This part replaces 0386768. |
| 14 | 0320172 | SHAFT, Shifter |
| 18 | 0319895 | SHIFT,Clutch dog |
| 19 | 0320115 | THRUST WASHER |
| 20 | 0386719 | THRUST BEARING, Rev gear |
| 23 | 0386659 | PROPELLER SHAFT ASSY |
| 24 | 0320113 | GEAR, Reverse |
| 25 | 0320304 | RETAINER PLATE, Brg hsg |
| 26 | 0320309 | RETAINER RING |
| 27 | 0320303 | O RING, Housing |
| 28 | 0386920 | BEARING HOUSING ASSY |
| 0396731 | 0396731 | GEARCASE ASSY. |
