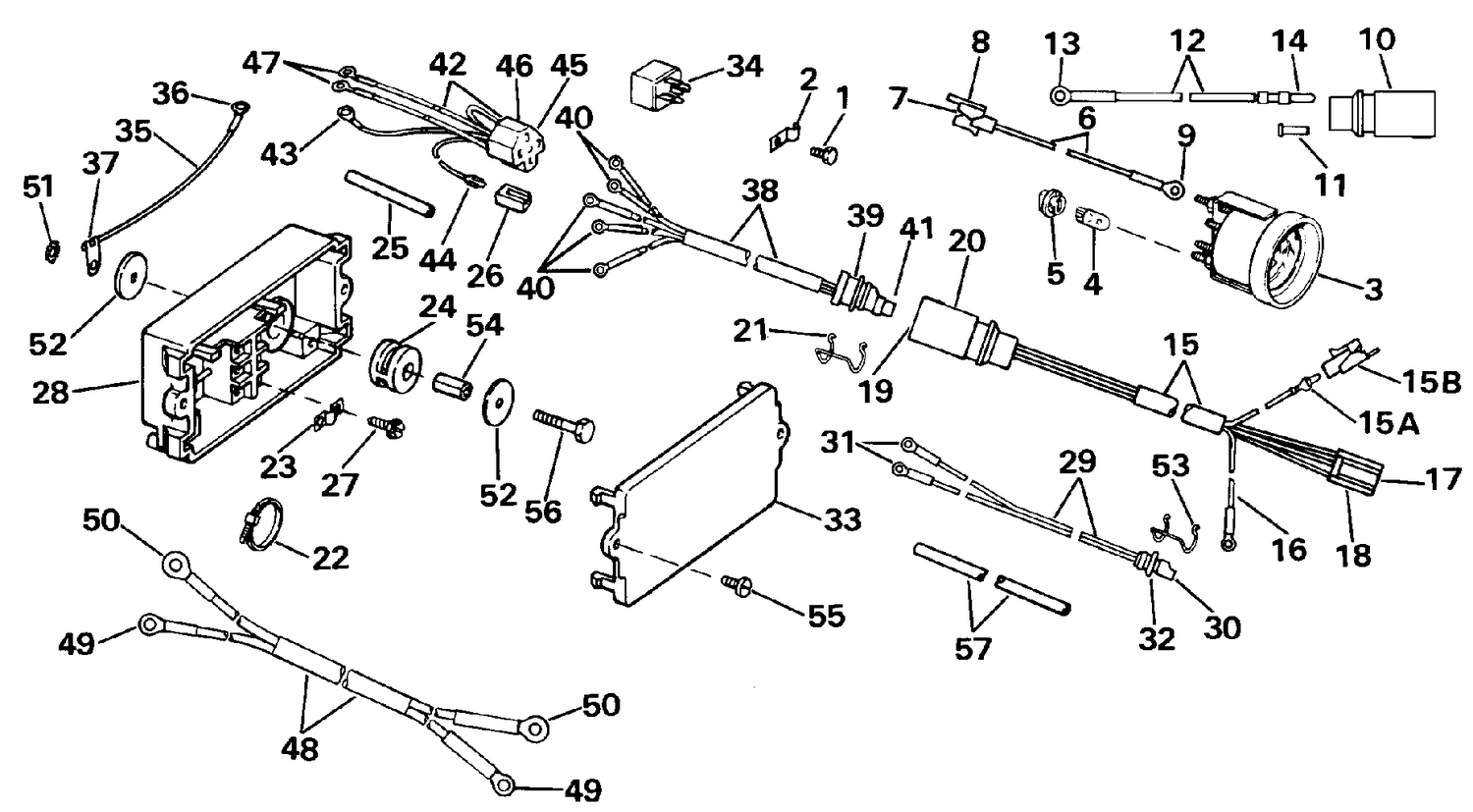

| Ref | Part Number | Description |
|---|
| 2 |
0317000 |
COLLIER, câble |
| 3 |
0175483 |
TRIM/TILT GAUGE KIT, CLASSIC SERIES This part replaces 0583254. |
| 6 |
0583255 |
LEAD ASSEMBLY |
| 12 |
0582093 |
LEAD ASSY This part replaces 0582092. |
| 21 |
0512743 |
DISPOSITIF DE RETENUE |
| 22 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 23 |
0315004 |
FIL DE LIAISON, bornier |
| 24 |
0315057 |
MOUNT, Bracket |
| 27 |
0329182 |
VIS, borne |
| 28 |
0512776 |
BASE Junction box |
| 29 |
0583105 |
CABLE ASSY., Sending unit |
| 33 |
0583707 |
COVER ASSY This part replaces 0583090. |
| 35 |
0582671 |
LEAD ASSY. Junction box ground |
| 38 |
0583158 |
CONNECTOR |
| 42 |
0582986 |
CONN ASSY., Blue leads (trim up) |
| 42 |
0582987 |
CONN ASSY., Green leads (trim down) |
| 48 |
0583010 |
CABLE ASSY |
| 53 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 54 |
0331984 |
CLAMP, Hose |
| 55 |
0329182 |
VIS, borne |
| 56 |
0313606 |
SCREW, Junction box mount |
| 0583106 |
0583106 |
JUNCTION BOX & COVER ASSY. |
| 0583206 |
0583206 |
GAUGE & CABLE ASSY. |
