Parts Catalog

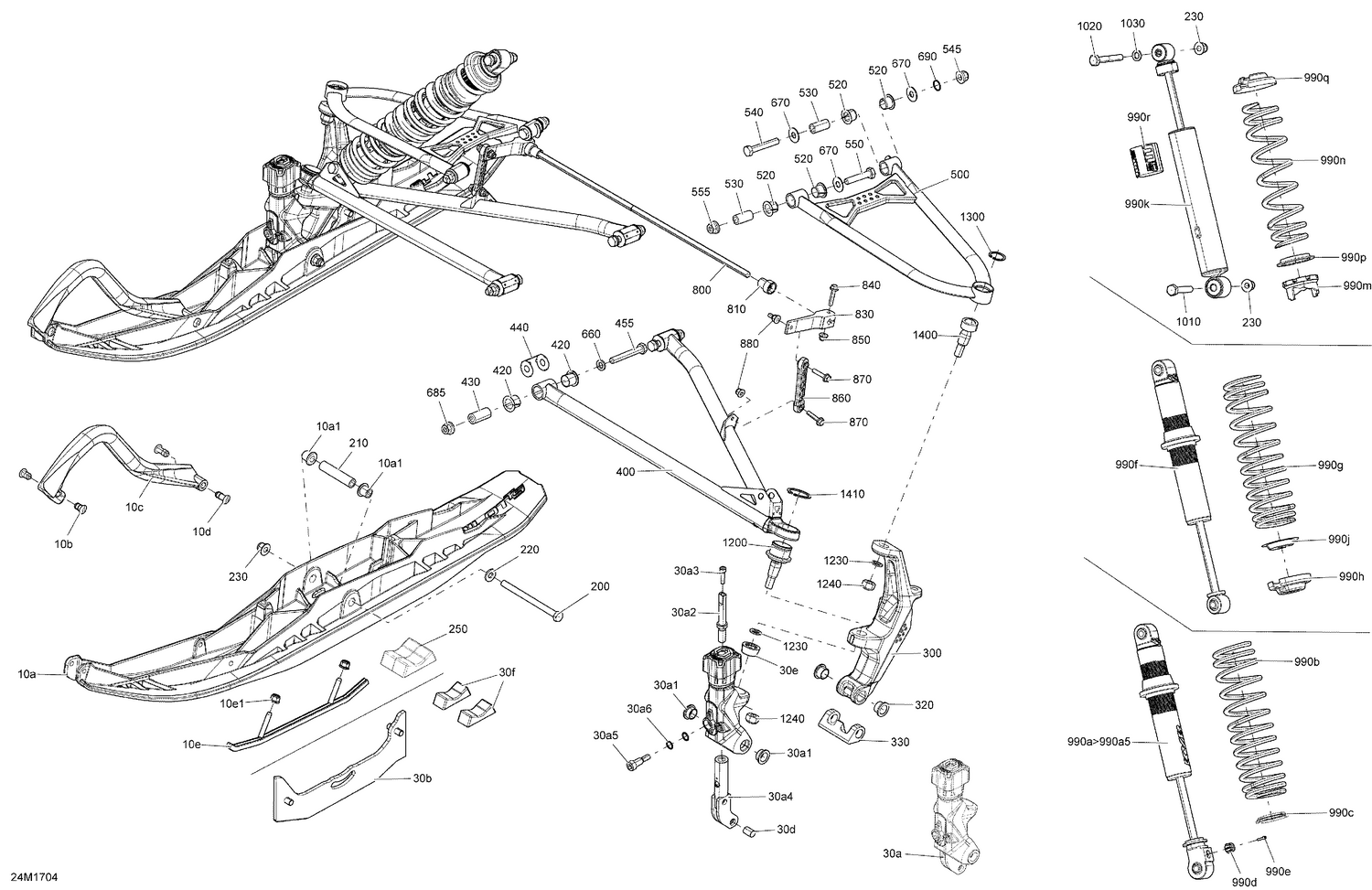

07- Front Suspension And Ski - All Models

Parts (46)

Ref	Part Number	Description
10a1	505071781	Ski Bushing
10b	505071812	Retainer 17mm long
10d	505072133	Retainer 23mm Long
200	250000703	Hex. Screw M10 X 130
210	506133300	Spacer
220	503192496	Washer
230	233201464	Hex. Flange Elastic M10 x 1.5
300	505073807	Black LH Ski Leg
300	505073808	Black RH Ski Leg
300	505073867	SKI-LEG MACHINED - Call your local BRP dealership
300	505073868	SKI LEG - Call your local BRP dealership
320	505072690	Leg Bushing
420	505072208	Bushing
430	505072209	Sleeve
440	505072634	Wear Plate
455	250001024	Screw Hex. M10 X 70 This part replaces 250000291.
520	505072250	Bushing
530	505072143	Sleeve
540	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
545	250100165	Hex. Flange Elastic Nut M10
550	250001022	Screw Hex. M10 X 50 This part replaces 250000289.
555	250100165	Hex. Flange Elastic Nut M10
660	503189564	Washer
670	505072392	Washer
685	250100165	Hex. Flange Elastic Nut M10
690	505072448	O-Ring
800	505072602	Stabilisator
810	505072064	Bushing
830	505072394	Stabilisator Lever
840	207663056	Hex. Flange Screw M6 X 1.0 X 30
850	233261466	Hex. Flange Elastic Nut M6
860	505072204	Sway Bar Double Joint Link
870	207663056	Hex. Flange Screw M6 X 1.0 X 30
880	233261466	Hex. Flange Elastic Nut M6
1010	207005554	Hex Screw M10 X 1.5 X 55
1020	207006544	Hex. Screw M10 X 1.5 X 65
1030	503189564	Washer
1200	505073636	Ball Joint
1230	503192491	Washer
1240	232521464	Hex Elastic Nut M12 X 1.25
1300	293370070	Circlip
1400	505072913	Upper Ball Joint
1410	293370035	Circlip
6000	503192496	Washer
6001	233201464	Hex. Flange Elastic M10 x 1.5
6002	505072594	Ski Stopper
