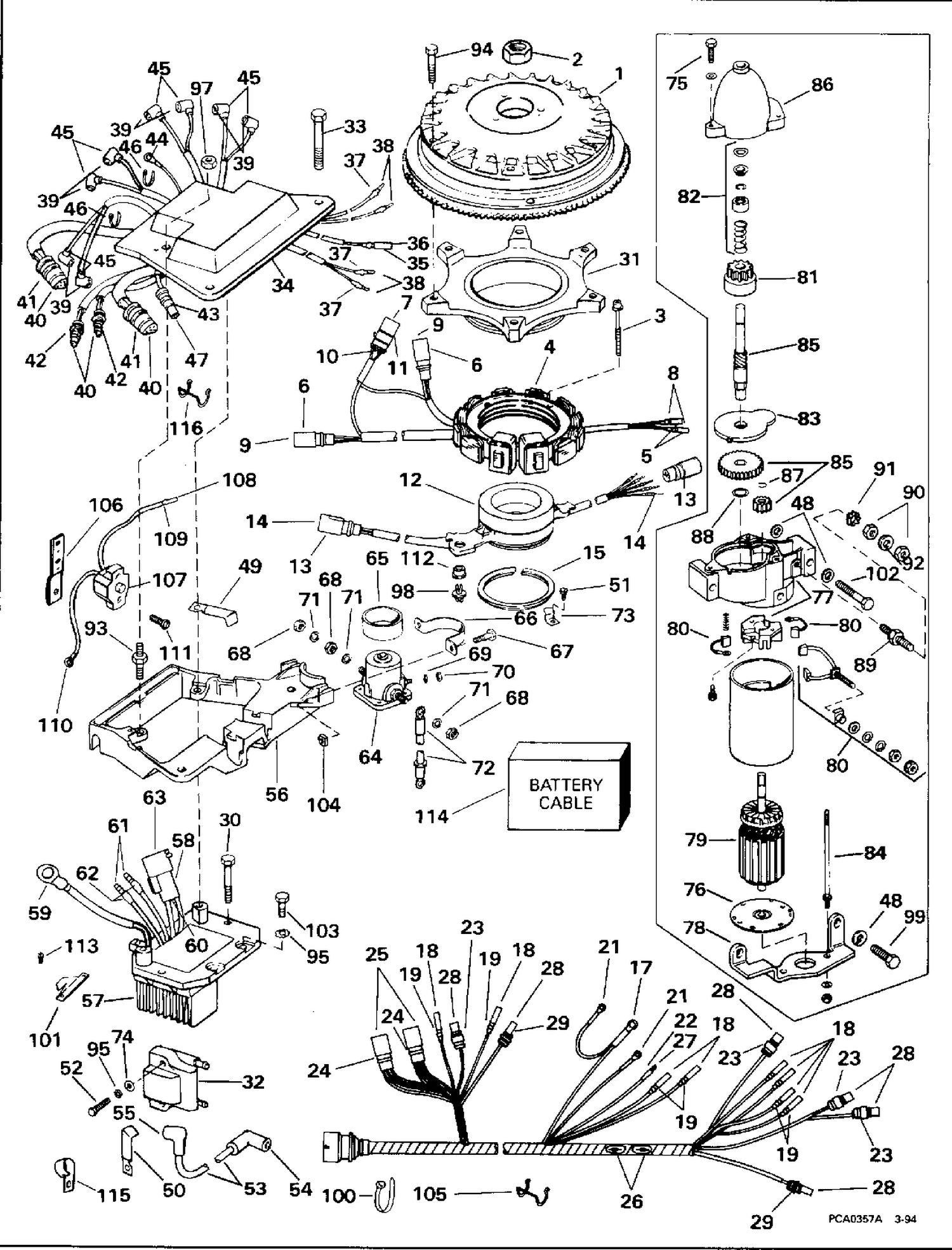

| Ref | Part Number | Description |
|---|
| 1 |
0583969 |
FLYWHEEL ASSY. |
| 4 |
0584643 |
STATOR ASSY. |
| 12 |
0583531 |
TIMBER BASE & SENSOR ASSY. |
| 15 |
0313666 |
RET., Distributor base 1 |
| 16 |
0584886 |
ENGINE CABLE ASSY. |
| 32 |
0582508 |
COIL ASSY |
| 34 |
0584642 |
POWER PACK |
| 53 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 56 |
0583997 |
ELECTRICAL BRACKET ASSY. |
| 57 |
0586271 |
RECTIFIER & REGULATOR ASSY. This part replaces 0584641. |
| 65 |
0311217 |
MANCHON, solénoïde |
| 66 |
0330112 |
BRIDE, solénoïde vers démarreur |
| 87 |
0513398 |
ANNEAU DE RETENUE, pignon d'attaque |
| 89 |
0331540 |
BOLT, Double end |
| 93 |
0334109 |
BOLT, Double end |
| 94 |
0325115 |
SCREW, Oil tank/EMM mount |
| 98 |
0330368 |
BUSHING, Timber base |
| 99 |
0552940 |
SCREW, Stern bracket |
| 100 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 101 |
0514005 |
SUPPORT, connecteur sectionneur de batterie |
| 102 |
0331644 |
SCREW, Starter, mounting |
| 103 |
0304027 |
VIS, arbre de commande de sens de marche |
| 105 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 106 |
0338688 |
BRACKET, Circuit breaker |
| 107 |
0584663 |
CIRCUIT BREAKER |
| 111 |
0308754 |
SCREW |
| 112 |
0329168 |
SOCKET |
| 115 |
0330157 |
CLAMP |
| 0431929 |
0431929 |
KIT ADHÉSIF, supports d'emplacement |
| 0584799 |
0586890 |
STARTER MOTOR ASSEMBLY This part replaces 0584799. |
