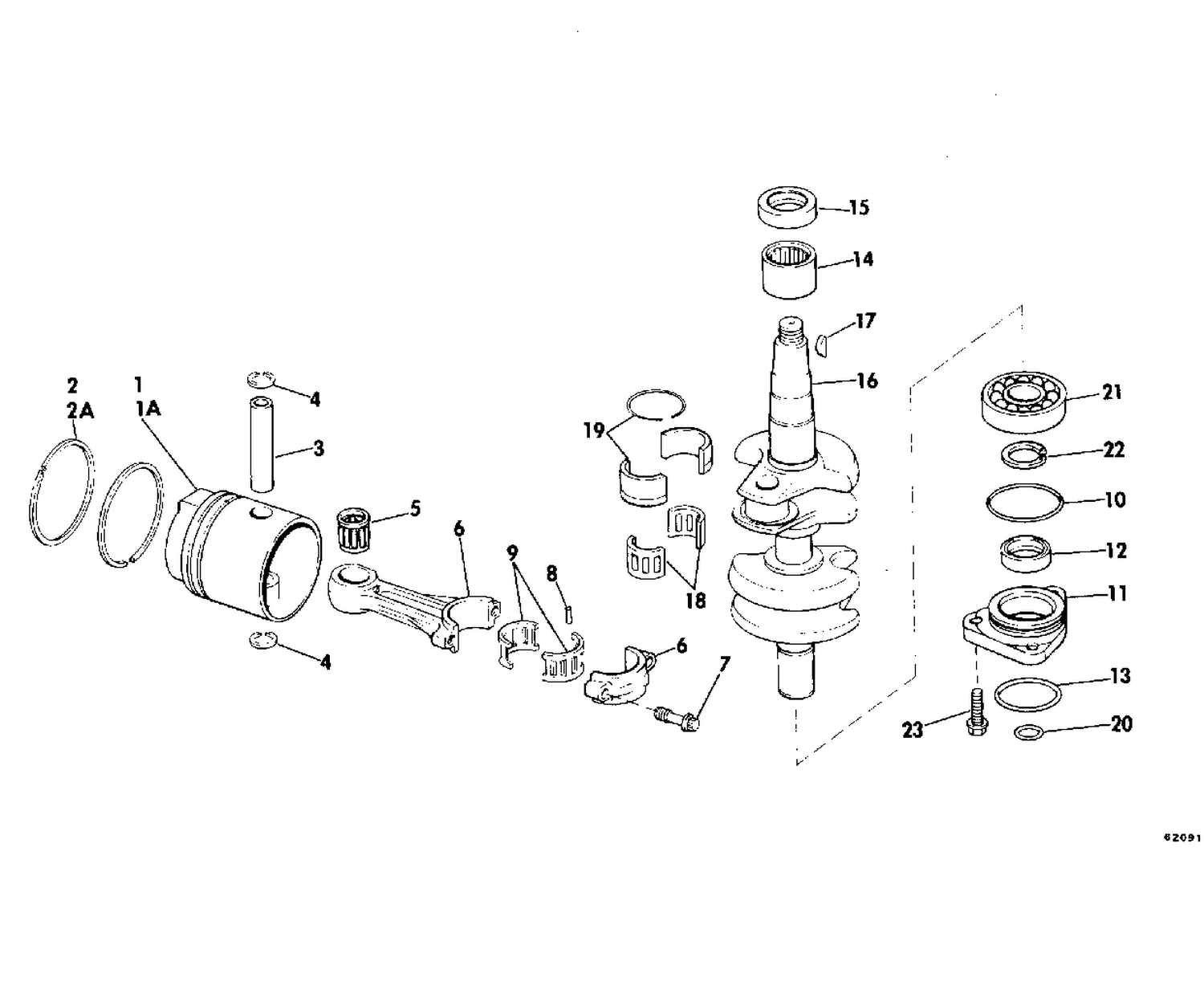

| Ref | Part Number | Description |
|---|
| 1 |
0389155 |
PISTON, Standard This part replaces 0386415. |
| 1A |
5006663 |
Pstn&Rng Kit This part replaces 0387708. |
| 2 |
0396377 |
RING SET Standard This part replaces 0385807. |
| 2A |
0396379 |
RING SET, .030 O.S This part replaces 0385809. |
| 3 |
0553742 |
WRIST PIN |
| 4 |
0302577 |
RETAINING RING |
| 5 |
0378251 |
BEARING SET, Needle, wrist pin |
| 6 |
0387465 |
CONNECTING ROD ASSY |
| 8 |
0387142 |
NEEDLE SET, RD |
| 9 |
0437088 |
BEARING Assy This part replaces 0378528. |
| 11 |
0433470 |
CRANKCASE HEAD & SEAL This part replaces 0386450. |
| 14 |
0386481 |
ROLLER BEARING ASSY |
| 15 |
0321504 |
SEAL |
| 16 |
0319456 |
CRANKSHAFT |
| 18 |
0378838 |
REATINER & NEEDLES, Center bearing |
| 19 |
0309010 |
SLEEVE, Split, center bearing |
