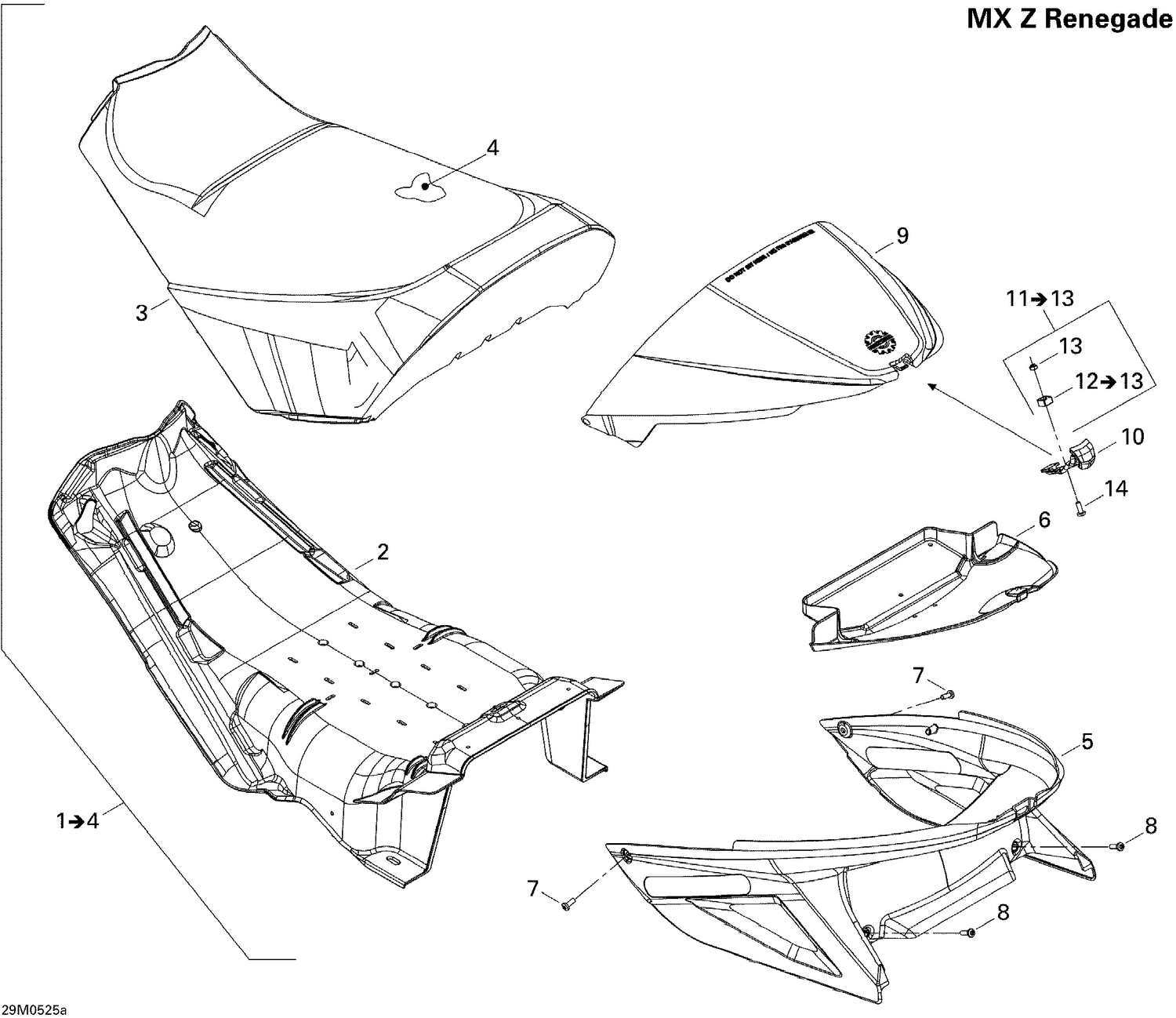

09- Seat Renegade
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 510004575 | SEAT BASE - Call your local BRP dealership |
| 3 | 510004499 | Seat Cover |
| 4 | 510004275 | SEAT FOAM - Call your local BRP dealership |
| 5 | 510004230 | Deep Black, Trunk |
| 5 | 510004278 | Coffre, Jaune, B-190 |
| 6 | 510004600 | BOX LINER - Call your local BRP dealership |
| 7 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 8 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 9 | 510004309 | Couvercle, Jaune, B-190 |
| 9 | 510004311 | Deep Black, Cover |
| 10 | 510003917 | Bracket |
| 13 | 232061600 | Hex. Nut M6 |
