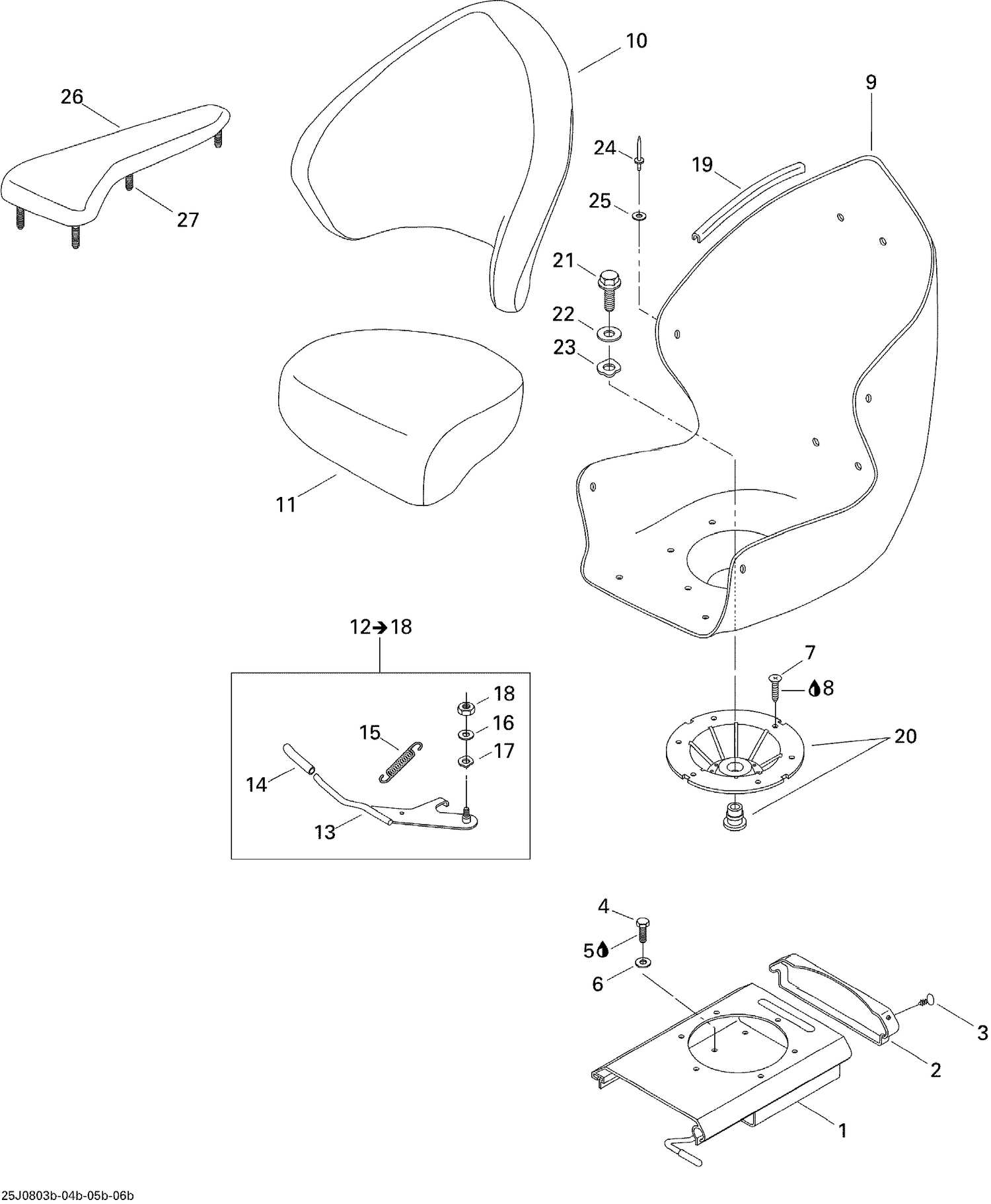

09- Seat 2
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204614118 | Seat Base Ass'y |
| 2 | 204610376 | Rear Protector |
| 3 | 293730006 | Black, Dart |
| 4 | 207163560 | Hex. Screw M6 X 35 |
| 5 | 293800060 | Loctite 243, 10 ml |
| 6 | 234062600 | Flat Washer M6, Stainless |
| 7 | 208561660 | PHILLIPS SCREW M6 X 16 - Call your local BRP dealership |
| 8 | 293800060 | Loctite 243, 10 ml |
| 9 | 204611146 | Seat Base |
| 10 | 204613410 | Backrest Cushion Ass'y |
| 11 | 204613412 | Seat Cushion Ass'y |
| 13 | 204610524 | Lever Arm |
| 14 | 204610348 | Handle |
| 15 | 204610349 | SPRING - Call your local BRP dealership |
| 16 | 234061600 | Stainless Flat Washer M6 |
| 17 | 211200059 | Washer |
| 18 | 232561600 | Hex. Elastic Stop Nut M6 |
| 19 | 204610371 | TRIM, BLACK - Call your local BRP dealership |
| 20 | 204610513 | SWIVEL PLATE - Call your local BRP dealership |
| 21 | 211000172 | SCREW-SHOULDER - Call your local BRP dealership |
| 22 | 211200058 | FLAT WASHER - Call your local BRP dealership |
| 23 | 293200056 | WASHER - Call your local BRP dealership |
| 24 | 293150201 | RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014. |
| 25 | 204100059 | FLAT WASHER #10 - Call your local BRP dealership |
| 26 | 204613405 | Elbowrest Ass'y, Starboard |
| 26 | 204613407 | ELBOWREST ASS'Y, PORT SIDE - Call your local BRP dealership |
