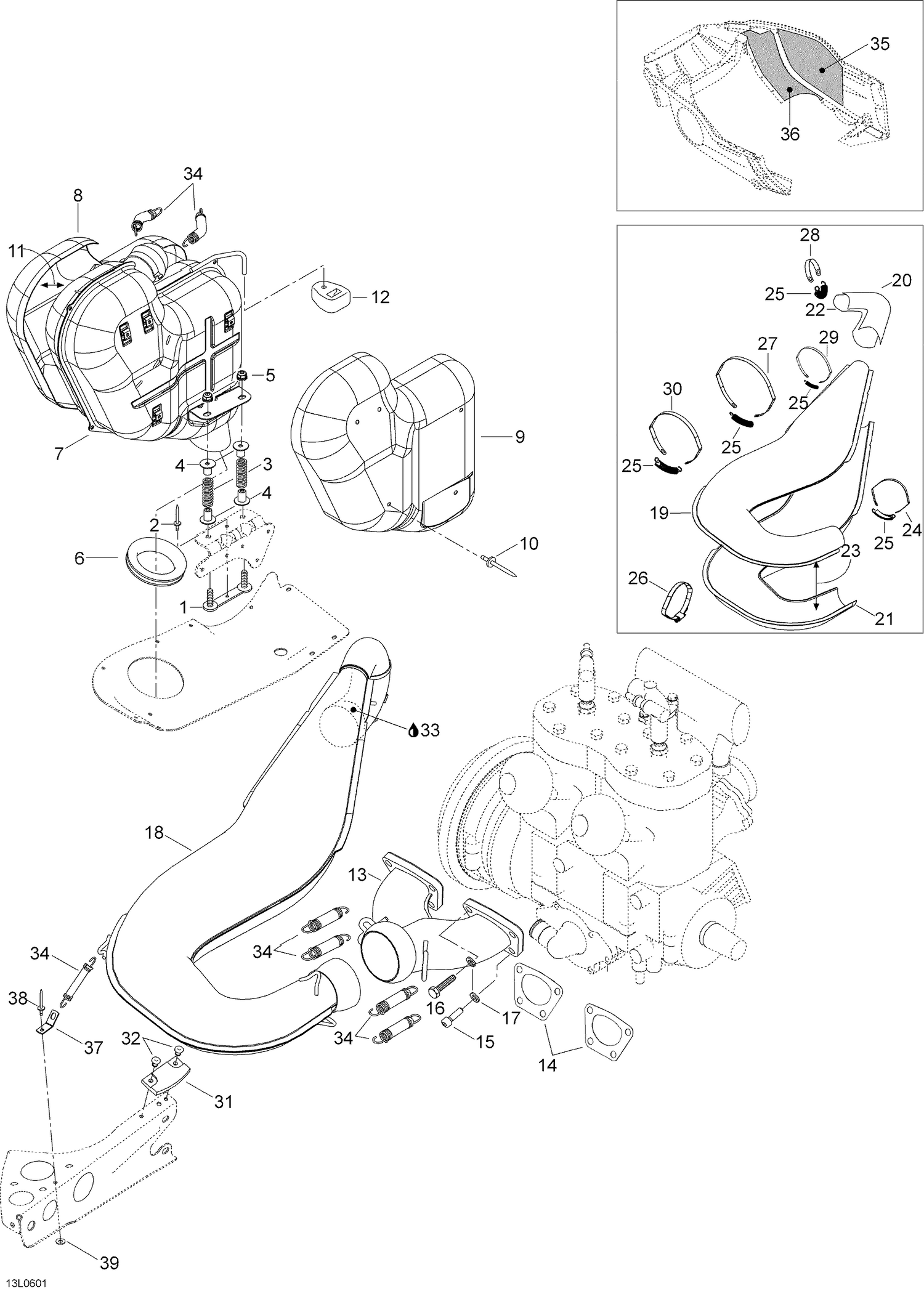

01- Exhaust System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5447628 | Bracket |
| 2 | 36083 | Rivet |
| 3 | 414913700 | SPRING - Call your local BRP dealership |
| 4 | 514053343 | GUIDE - Call your local BRP dealership |
| 5 | 33029 | Elastic stop nut M8 |
| 6 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 8 | 514053160 | R.H. heat shield |
| 9 | 514052733 | L.H. heat shield |
| 10 | 390910000 | Rivet |
| 11 | 514052734 | R.H. insulating wool |
| 11 | 514052844 | L.H. insulating wool |
| 12 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 13 | 420979543 | Exhaust manifold ass'y |
| 14 | 420931610 | Gasket |
| 15 | 40289 | Socket head screw M8 x 25 |
| 16 | 40036 | Hex. screw M8 x 20 |
| 17 | 20014 | Lock washer A8 |
| 19 | 514053181 | UPPER FRONT HALF ENVELOPPE - Call your local BRP dealership |
| 20 | 514053193 | REAR UPPER ENVELOPE - Call your local BRP dealership |
| 21 | 514053367 | LOWER ENVELOPE - Call your local BRP dealership |
| 22 | 514053196 | REAR LOWER ENVELOPE - Call your local BRP dealership |
| 23 | 514053285 | INSULATING WOOL - Call your local BRP dealership |
| 24 | 514053498 | Norma gear clamp |
| 25 | 514053643 | Spring |
| 26 | 514053501 | Norma gear clamp |
| 27 | 514053540 | RETAINING STRAP - Call your local BRP dealership |
| 28 | 293650491 | Norma gear clamp |
| 29 | 514053500 | RETAINING STRAP - Call your local BRP dealership |
| 30 | 514052512 | Norma gear clamp |
| 31 | 570044100 | Rubber damper |
| 32 | 36037 | Rivet |
| 33 | 293800090 | Srealant, Loctite, 80ml |
| 34 | 415107100 | Spring |
| 35 | 514052718 | Isolering |
| 36 | 514053390 | REFLECTIVE SHEET - Call your local BRP dealership |
| 37 | 5447086 | Bracket |
| 38 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
