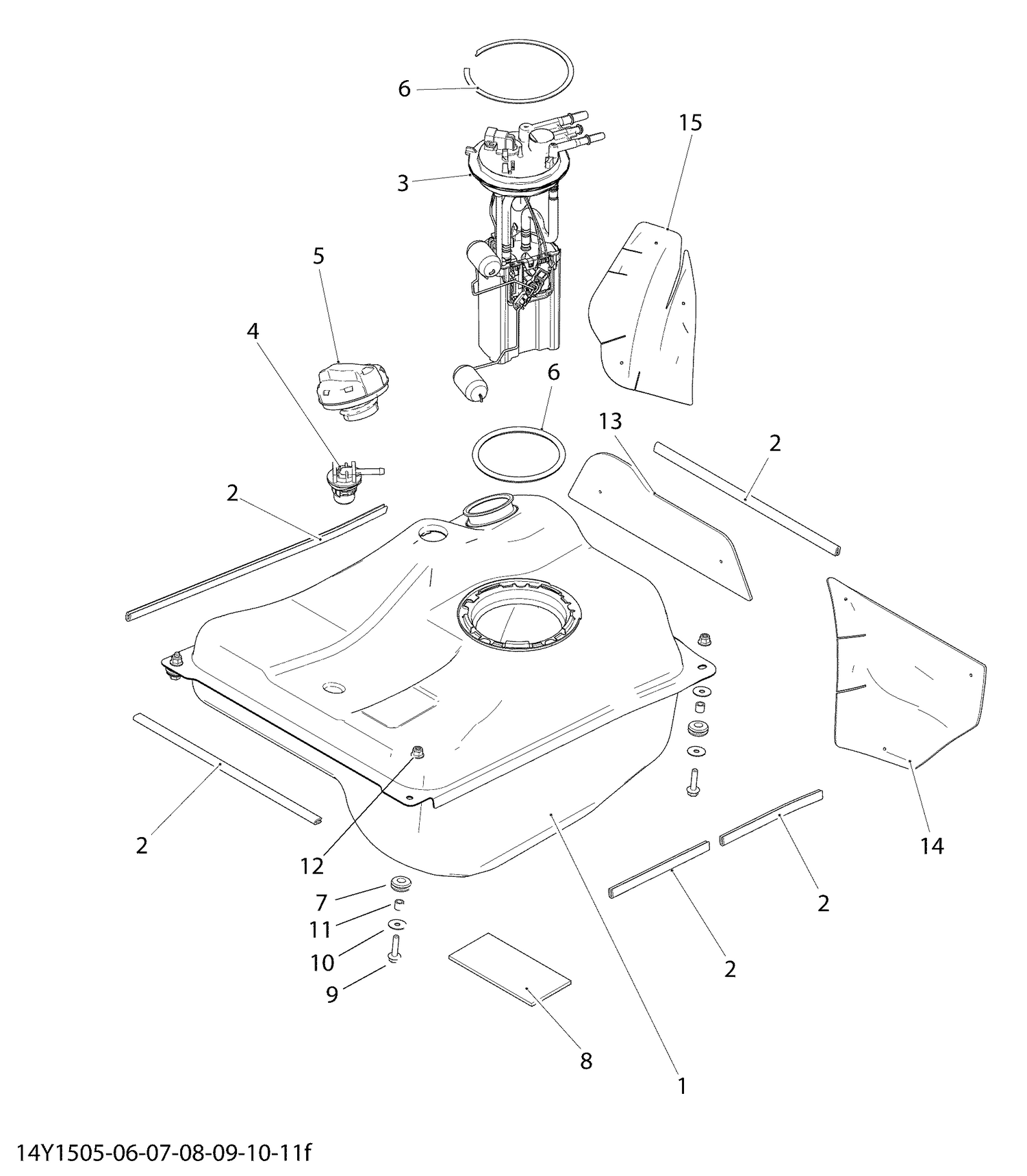

02- Fuel Tank - Pump _14Y1505f
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 219800298 | Fuel Tank |
| 2 | 219704354 | Trim 1000Mm Long |
| 3 | 709000088 | Pump Module |
| 4 | 709000413 | Rollover Valve |
| 5 | 709000660 | Fuel Cap |
| 6 | 219800248 | Seal Kit |
| 7 | 709000582 | Grommet |
| 8 | 709000130 | Carpet |
| 9 | 207662544 | Hex. Flange Screw M6 X 25 |
| 10 | 224060201 | Flat Washer |
| 11 | 709000162 | Bushing |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 709000157 | Reflective Sheet |
| 14 | 709000158 | REFLECTIVE SHEET - Call your local BRP dealership |
