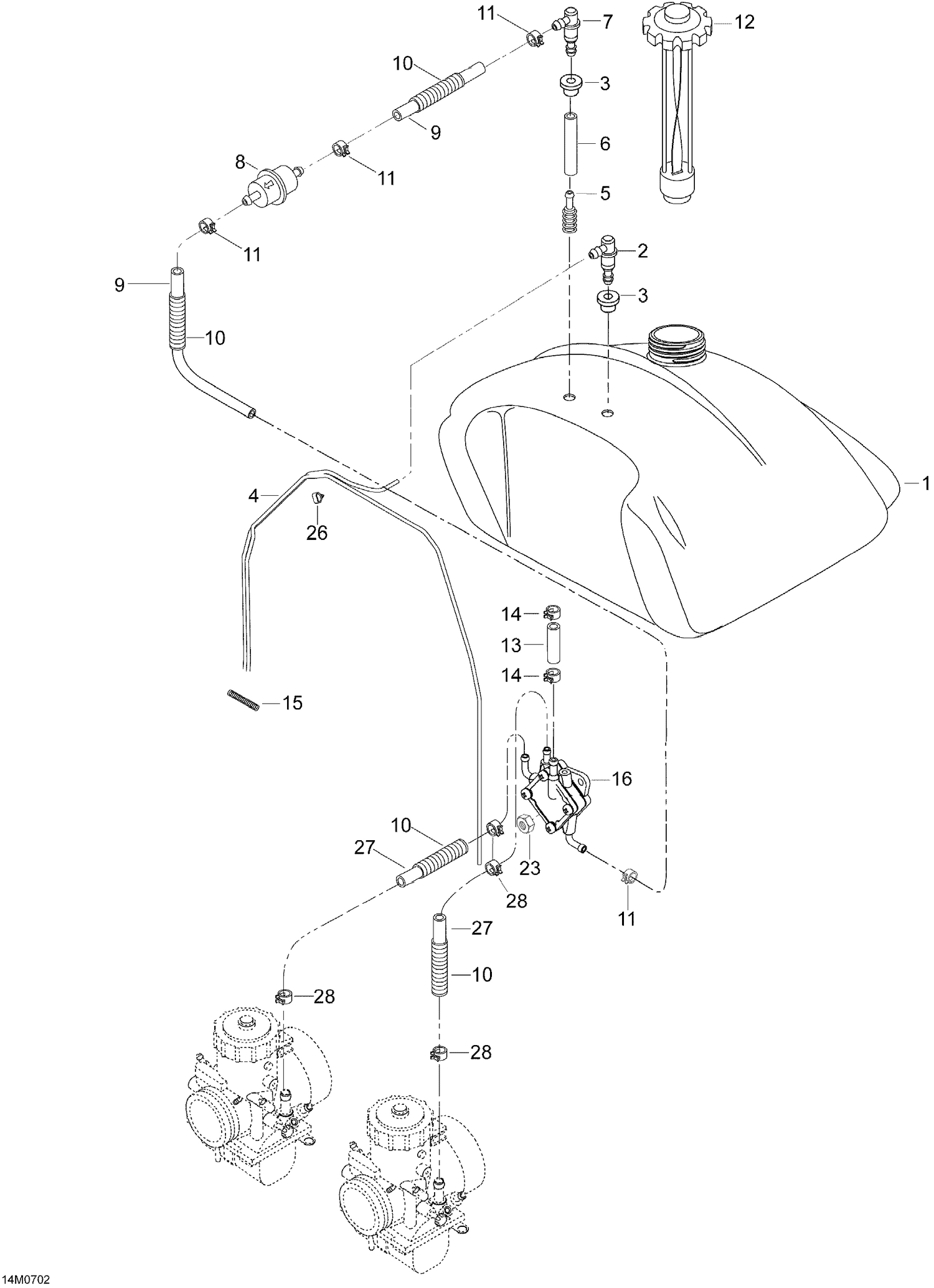

| Ref | Part Number | Description |
|---|
| 1 |
M519393 |
Fuel Tank |
| 2 |
533535 |
Male Connector This part replaces M533535. |
| 3 |
280000674 |
Grommet This part replaces M28037. |
| 4 |
M39035 |
HOSE - Call your local BRP dealership |
| 5 |
414872100 |
Fuel Filter Strainer |
| 6 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 7 |
5341709 |
CONNECTOR-MALE - Call your local BRP dealership This part replaces M5341709. |
| 8 |
605352516 |
Fuel Filter |
| 9 |
219704397 |
Hose 5/8 1000MM LONG - Call your local BRP dealership |
| 10 |
M28012 |
HOUSING - Call your local BRP dealership |
| 11 |
414554800 |
Spring Clamp |
| 12 |
605349994 |
Cap Fuel Tank |
| 13 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 14 |
414420700 |
Spring Clamp |
| 15 |
XXX |
Not Available As Spare Parts |
| 16 |
403800600 |
FUEL PUMP - Call your local BRP dealership |
| 23 |
232561414 |
Elastic Stop Nut M6 |
| 26 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 27 |
219704397 |
Hose 5/8 1000MM LONG - Call your local BRP dealership |
