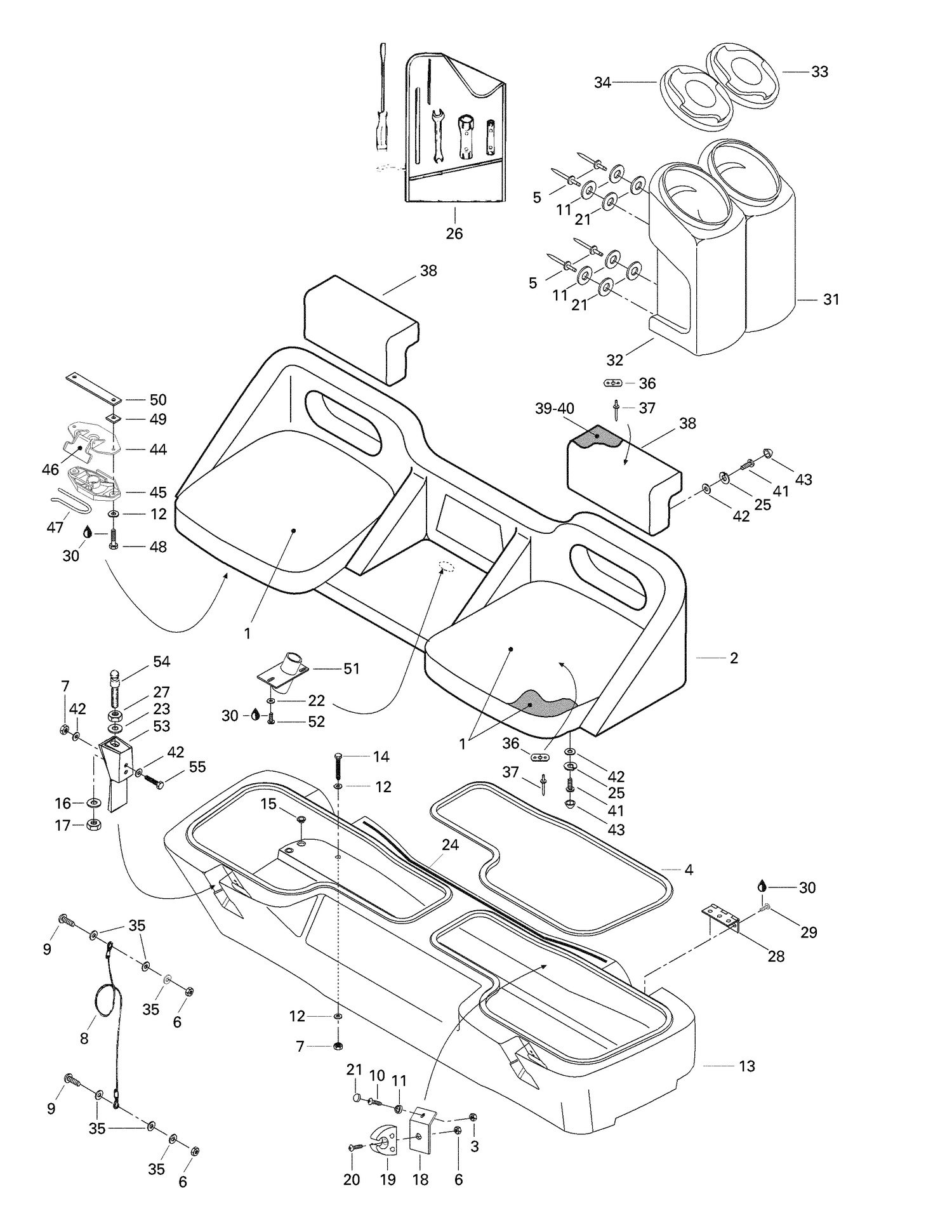

| Ref | Part Number | Description |
|---|
| 1 |
269000179 |
Seat Ass'y (Incl. It. 39,40) |
| 2 |
269000203 |
Seat Base / coffre (incl. it 4) |
| 3 |
232541600 |
Elastic Stop Nut M4 This part replaces 218041600. |
| 4 |
219704368 |
Seal Tray 1000Mm Long |
| 5 |
Not |
Available As Spare Part - Rivet 5/32 |
| 6 |
232551600 |
Hex. Elastic Nut M5 This part replaces 212000004. |
| 7 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 8 |
204000117 |
RETAINER CABLE - Call your local BRP dealership |
| 9 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership This part replaces 215851668. |
| 10 |
216142060 |
SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership |
| 11 |
414436800 |
RETAINER CAP - Call your local BRP dealership |
| 12 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 13 |
291001115 |
Rear Tray |
| 14 |
207163560 |
Hex. Screw M6 X 35 This part replaces 210000014. |
| 15 |
291000279 |
Black Plug |
| 16 |
234002600 |
Flat Washer 10 mm, Stainless This part replaces 217002600. |
| 17 |
232501600 |
HEX. ELASTIC NUT M10 - Call your local BRP dealership This part replaces 212000003. |
| 18 |
269500200 |
Base Support |
| 19 |
291000642 |
Pole Support |
| 20 |
216152560 |
Screw M5 x 25 |
| 21 |
414576500 |
Snap Cap (White) |
| 22 |
234051600 |
Flat Washer M5, Stainless This part replaces 213200004. |
| 23 |
234001600 |
Flat Washer 10 mm, Stainless This part replaces 213200003. |
| 24 |
219704365 |
Was 293200017 Neoprene Seal |
| 25 |
234161601 |
Lock Washer Helical M6 This part replaces 217361500. |
| 26 |
295000066 |
Tool Kit |
| 27 |
232100600 |
Hex. Jam Nut M10 This part replaces 218300600. |
| 28 |
269000125 |
Seat Hinge |
| 29 |
216151260 |
Screw M5 x 12 |
| 30 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 31 |
269500606 |
EXTINGUISHER HOUSING - Call your local BRP dealership This part replaces 269500180. |
| 32 |
269500606 |
EXTINGUISHER HOUSING - Call your local BRP dealership This part replaces 269500151. |
| 33 |
269500237 |
Storage Housing Cap |
| 34 |
269501939 |
EXTINGUISHER HOUSING CAP - Call your local BRP dealership This part replaces 269500236. |
| 35 |
234052600 |
Flat Washer 5 mm, Stainless This part replaces 213200015. |
| 36 |
204000065 |
Spring Nut M5 |
| 37 |
204000080 |
Rivet 3/32" |
| 39 |
269000198 |
Backrest Cover |
| 40 |
269000199 |
Backrest Foam |
| 41 |
216662560 |
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership |
| 42 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 43 |
269000252 |
Cap (1/2") |
| 44 |
269700109 |
Latch Ass'y This part replaces 269700020. |
| 45 |
269700109 |
Latch Ass'y This part replaces 269000015. |
| 46 |
269700109 |
Latch Ass'y This part replaces 269000016. |
| 47 |
269700017 |
Latch Spring This part replaces 269000017. |
| 48 |
207064560 |
HEX. SCREW M6 X 45 - Call your local BRP dealership This part replaces 210000013. |
| 49 |
269000254 |
Shim-Spacer |
| 50 |
269000243 |
Retainer Plate |
| 51 |
269000244 |
Base-Rear Lamp |
| 52 |
215851068 |
Screw M5 x 10 |
| 53 |
204610206 |
Stud Support |
| 54 |
291000689 |
LATCH STUD - Call your local BRP dealership |
| 269000196 |
Seat |
Cover 269000196 |
| 269000214 |
Rear |
Seat Foam 269000214 |
