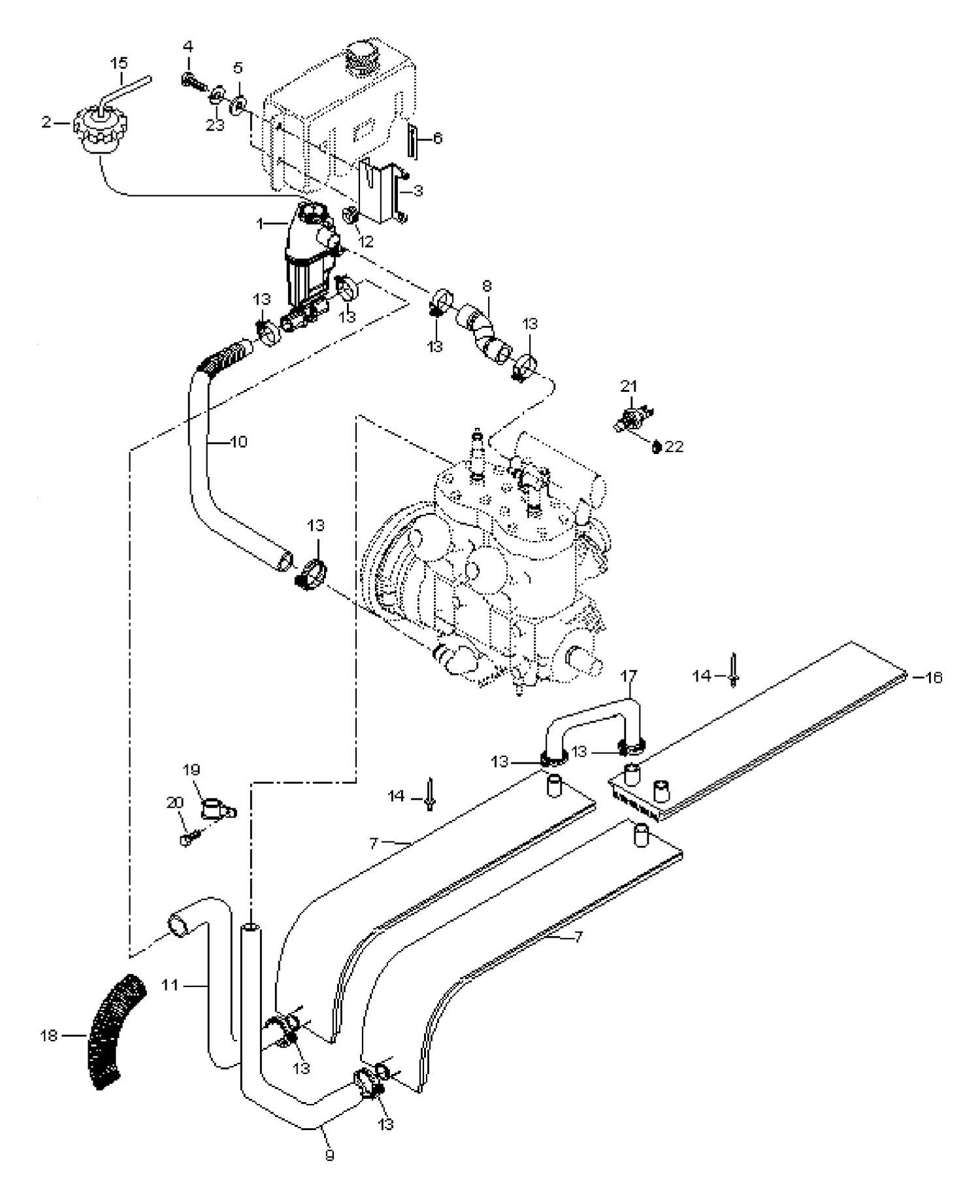

01- Radiator, Hoses
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000134 | Coolant tank |
| 2 | 509000187 | Pressure Cap |
| 3 | 5347031 | Support, coolant tank |
| 4 | 40322 | SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 5 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 6 | 5447032 | Support plate |
| 7 | 5146385 | R.H. radiator |
| 7 | 5146386 | RADIATOR LH - Call your local BRP dealership |
| 8 | 5348268 | Hose, tank->engine |
| 9 | 5346201 | Hose, engine->radiator |
| 10 | 5343357 | Hose, engine->tank |
| 11 | 605349198 | Hose, tank->radiator |
| 12 | 28022 | Grommet |
| 13 | 27003 | Clamp |
| 14 | 36108 | Rivet |
| 15 | 39038 | Overflow hose |
| 16 | 5345916 | Back radiator |
| 17 | 5445970 | Hose |
| 18 | 390003 | Tubing 1000 mm |
| 19 | 27011 | Clamp |
| 20 | 40327 | Screw M6 x 12 |
| 21 | 512047000 | Sensor temp |
| 22 | 293800018 | SEALANT LOCTITE 592 - Call your local BRP dealership |
