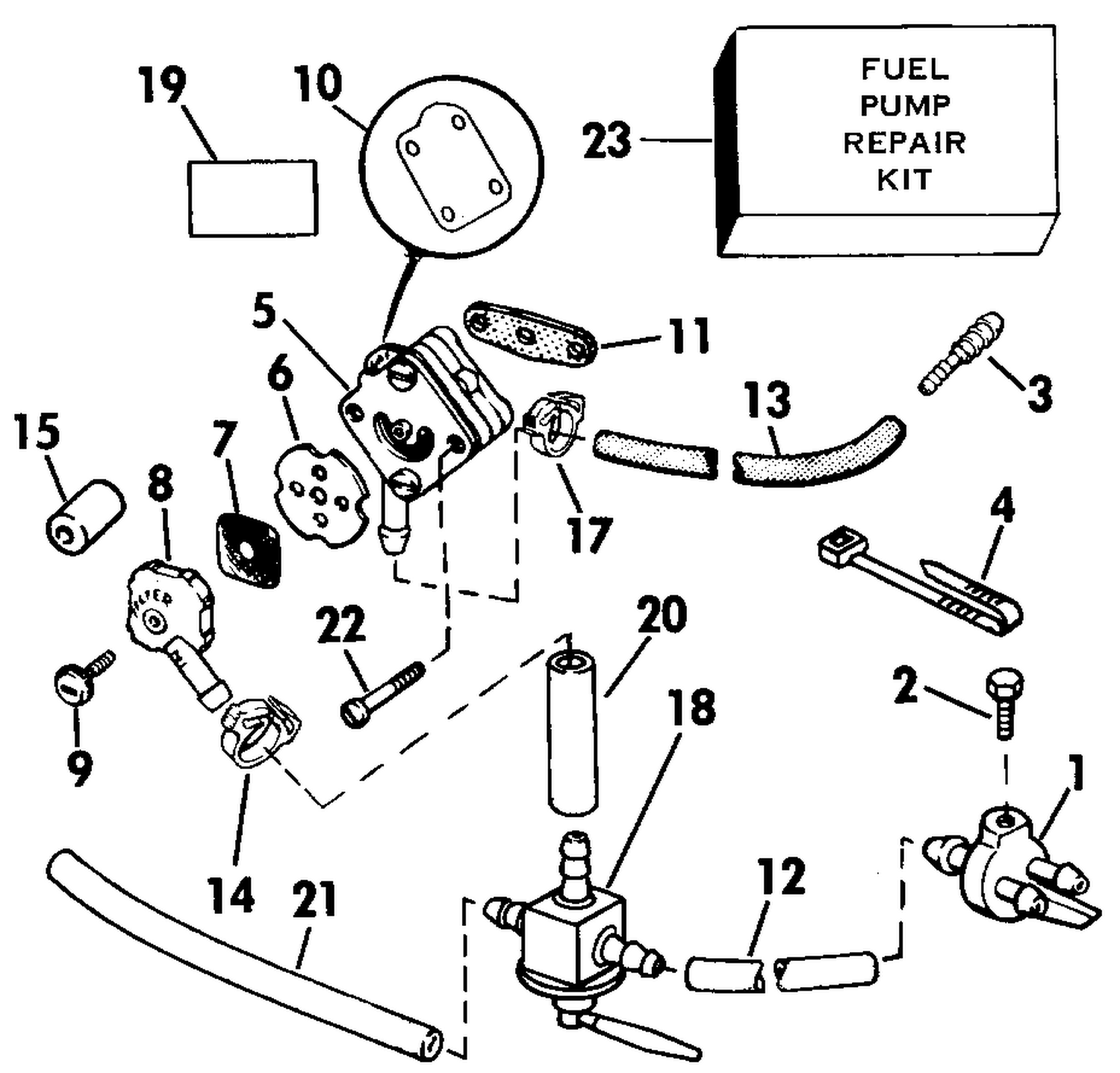

| Ref | Part Number | Description |
|---|
| 1 |
0393334 |
CONNECTEUR, carburant - mâle |
| 2 |
0313117 |
SCR,Clamp,eng cable |
| 3 |
0322524 |
INDICATOR FITTING |
| 4 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 5 |
0397445 |
FUEL PUMP ASSY |
| 11 |
0303615 |
GASKET |
| 12 |
HOSE, |
Valve to connector, 13 in. (330mm) |
| 13 |
HOSE, |
Fuel, 6 1/4 in. (159mm) |
| 14 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 17 |
0322653 |
CLAMP |
| 18 |
0173727 |
VALVE ASSEMBLY |
| 19 |
0123694 |
DECAL |
| 20 |
HOSE, |
Valve to pump, 3 in. (76mm) |
| 21 |
HOSE, |
Fuel pump to connector, 26 in. (660mm) |
| 22 |
0310356 |
SCREW |
| 0174510 |
0174510 |
ADAPTER KIT, Remote fuel tank with valve |
