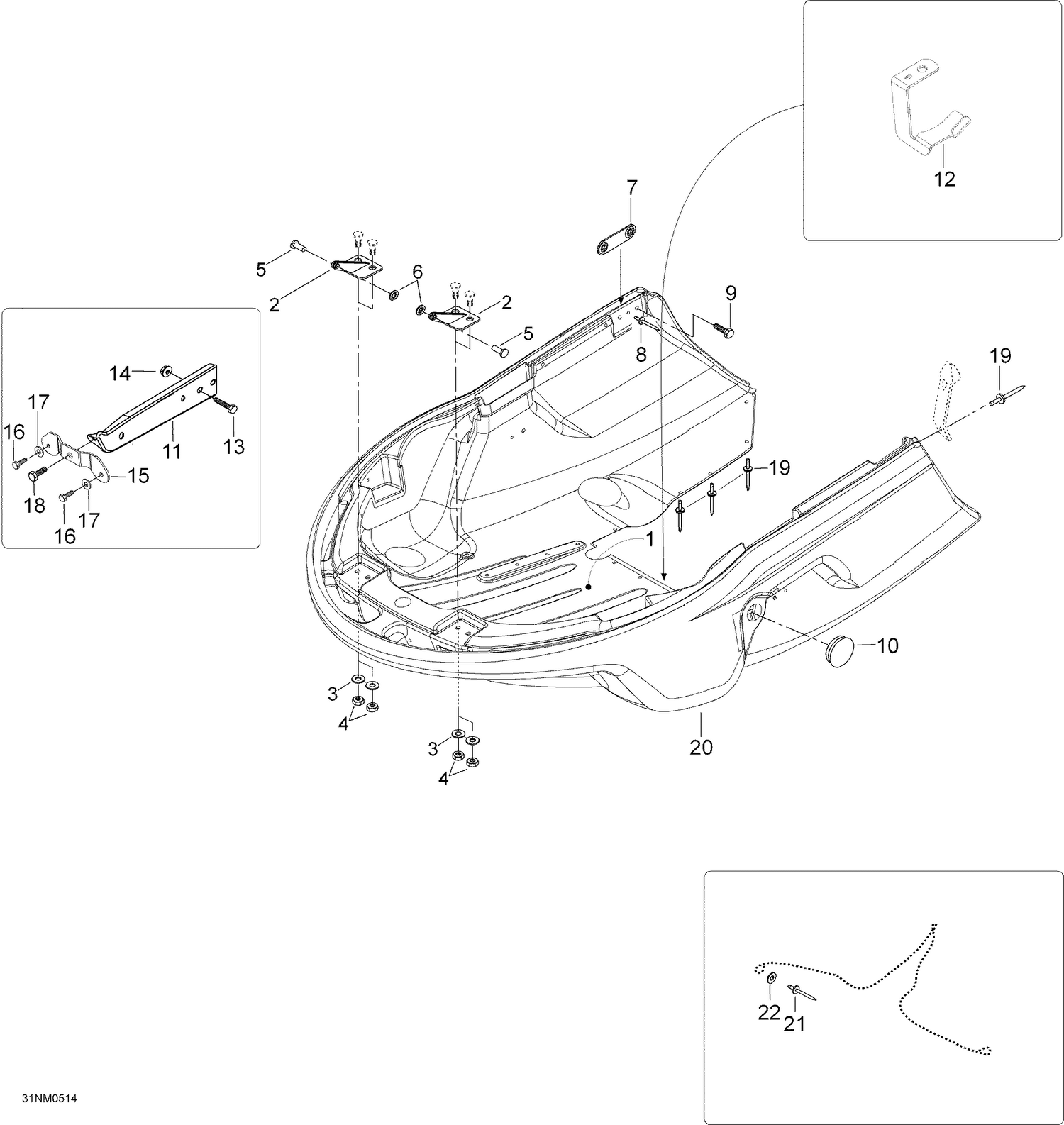

| Ref | Part Number | Description |
|---|
| 1 |
5444437 |
Heat protector |
| 2 |
517289900 |
Hinge |
| 3 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 4 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 5 |
390906200 |
FLAT HEAD STEEL RIVET - Call your local BRP dealership |
| 6 |
389804300 |
Push Nut |
| 7 |
5446213 |
FASTENING PLATE - Call your local BRP dealership |
| 8 |
36009 |
Rivet |
| 9 |
40377 |
Self tapping screw M6 x 20 |
| 10 |
570277300 |
Plug |
| 11 |
5246183 |
BUMPER SUPPORT - Call your local BRP dealership |
| 12 |
605351520 |
RH BRACKET - Call your local BRP dealership |
| 12 |
605351521 |
LH BRACKET - Call your local BRP dealership |
| 13 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 14 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 15 |
605352393 |
BOTTOM PAN FRONT - Call your local BRP dealership |
| 16 |
250000676 |
Forming Screw M5 x 16 This part replaces 732600030. |
| 17 |
20117 |
Washer |
| 18 |
40377 |
Self tapping screw M6 x 20 |
| 19 |
36036 |
Rivet |
| 20 |
605151334 |
Bottom pan |
| 21 |
36009 |
Rivet |
