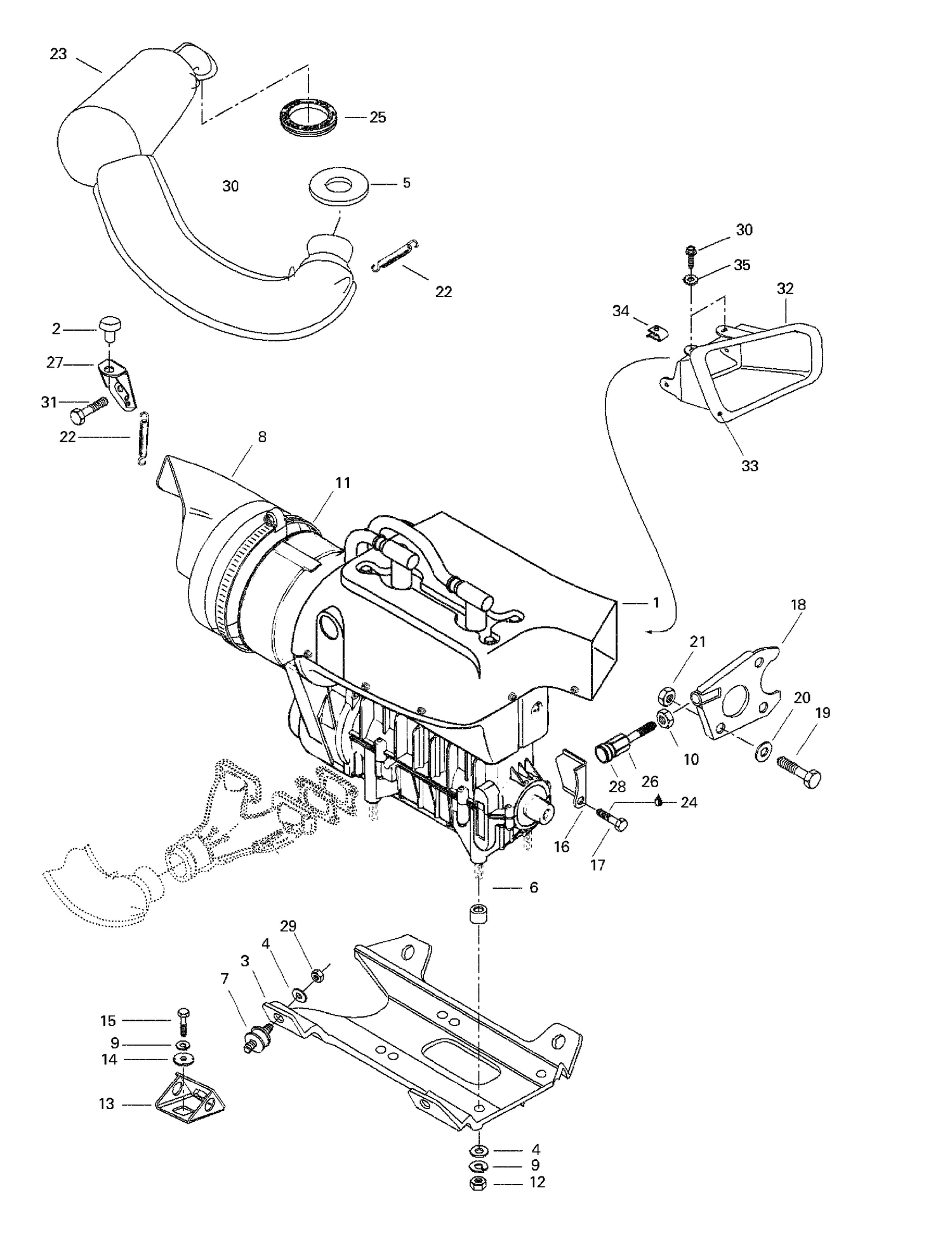

| Ref | Part Number | Description |
|---|
| 1 |
400308700 |
Moteur «377» |
| 2 |
570044700 |
Rubber Bumper |
| 3 |
512054500 |
Engine Support |
| 4 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 5 |
570049400 |
Exhaust Grommet |
| 6 |
512051900 |
Spacer |
| 7 |
570127700 |
RUBBER MOUNT - Call your local BRP dealership |
| 8 |
572058400 |
Air Deflector |
| 9 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 10 |
232120414 |
HEX. NUT M12 - Call your local BRP dealership This part replaces 228020045. |
| 11 |
408803600 |
Gear Clamp Tridon |
| 12 |
232006414 |
Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 13 |
512050900 |
Engine Support |
| 14 |
512056700 |
Lock Washer |
| 15 |
207102544 |
Hex. Screw M10 X 25 This part replaces 222002565. |
| 16 |
512052200 |
Stopper Plate |
| 17 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 18 |
517271800 |
Support Plate |
| 19 |
207182544 |
Hex. Screw M8 X 25 This part replaces 222082565. |
| 20 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 21 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 22 |
517182100 |
SPRING - Call your local BRP dealership |
| 23 |
514046000 |
Muffler |
| 24 |
293800005 |
Loctite 271, 10 ml This part replaces 413707400. |
| 25 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
| 26 |
517244200 |
Screw |
| 27 |
514038800 |
Muffler Support |
| 28 |
570025100 |
Rod retainer |
| 29 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 30 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 31 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership This part replaces 222006065. |
| 32 |
572098000 |
Outlet Duct |
| 33 |
415104000 |
Seal |
| 34 |
389812800 |
Speed Nut |
