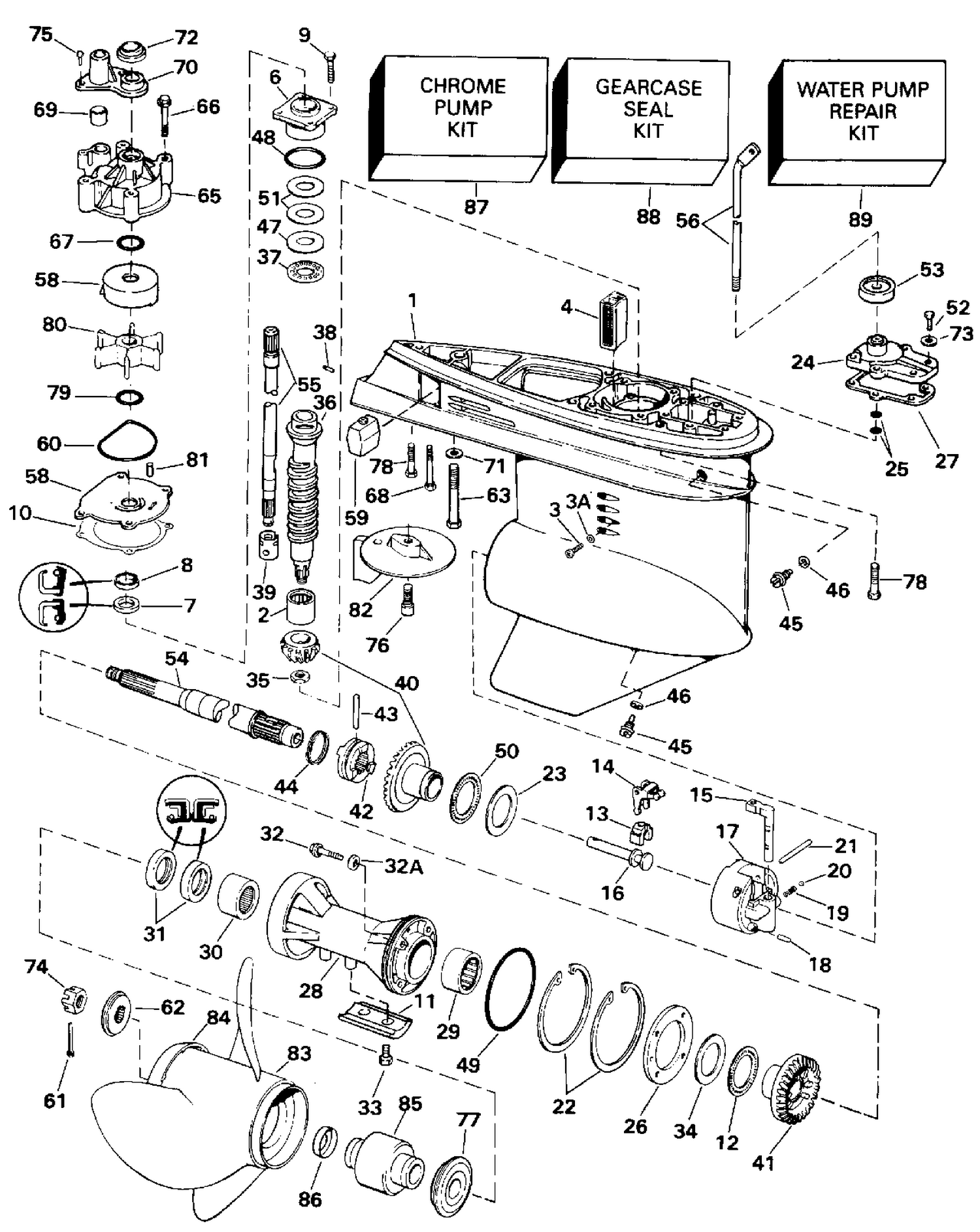

| Ref | Part Number | Description |
|---|
| 1 |
0431642 |
GEARCASE & BEARING ASSY. |
| 28 |
0397087 |
BEARING HOUSING SEAL ASSY. |
| 32 |
0316563 |
SCREW |
| 32A |
0332583 |
SCREW & SEAL ASSY. |
| 36 |
0335722 |
DRIVESHAFT, Lower |
| 54 |
0436888 |
PROPELLER SHAFT ASSY. This part replaces 0387818. |
| 55 |
5007671 |
DRIVESHAFT Assembly, Upper This part replaces 0338556. |
| 56 |
0323269 |
SHIFT ROD |
| 58 |
0435027 |
CUP & PLATE |
| 58 |
0435526 |
CHROME CUP & PLATE KIT |
| 60 |
0331353 |
Seal, Impeller Housing Plate. |
| 63 |
0331998 |
SCREW, Gearcase to housing |
| 65 |
0435485 |
IMPELLER HOUSING ASSY. |
| 67 |
0331188 |
O-Ring |
| 76 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 78 |
0331999 |
SCREW, Gearcase housing |
| 82 |
0127466 |
TRIM TAB This part replaces 0337348. |
| 83 |
PROPELLER |
Ref: 84 0332393 *Converging Ring 0332393 |
| 87 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0395059. |
| 88 |
5006373 |
GEARCASE SEAL KIT This part replaces 0396354. |
| 0435474 |
5000356 |
G/C Ay*Cv4&Lv4 .50 This part replaces 0435474. |
