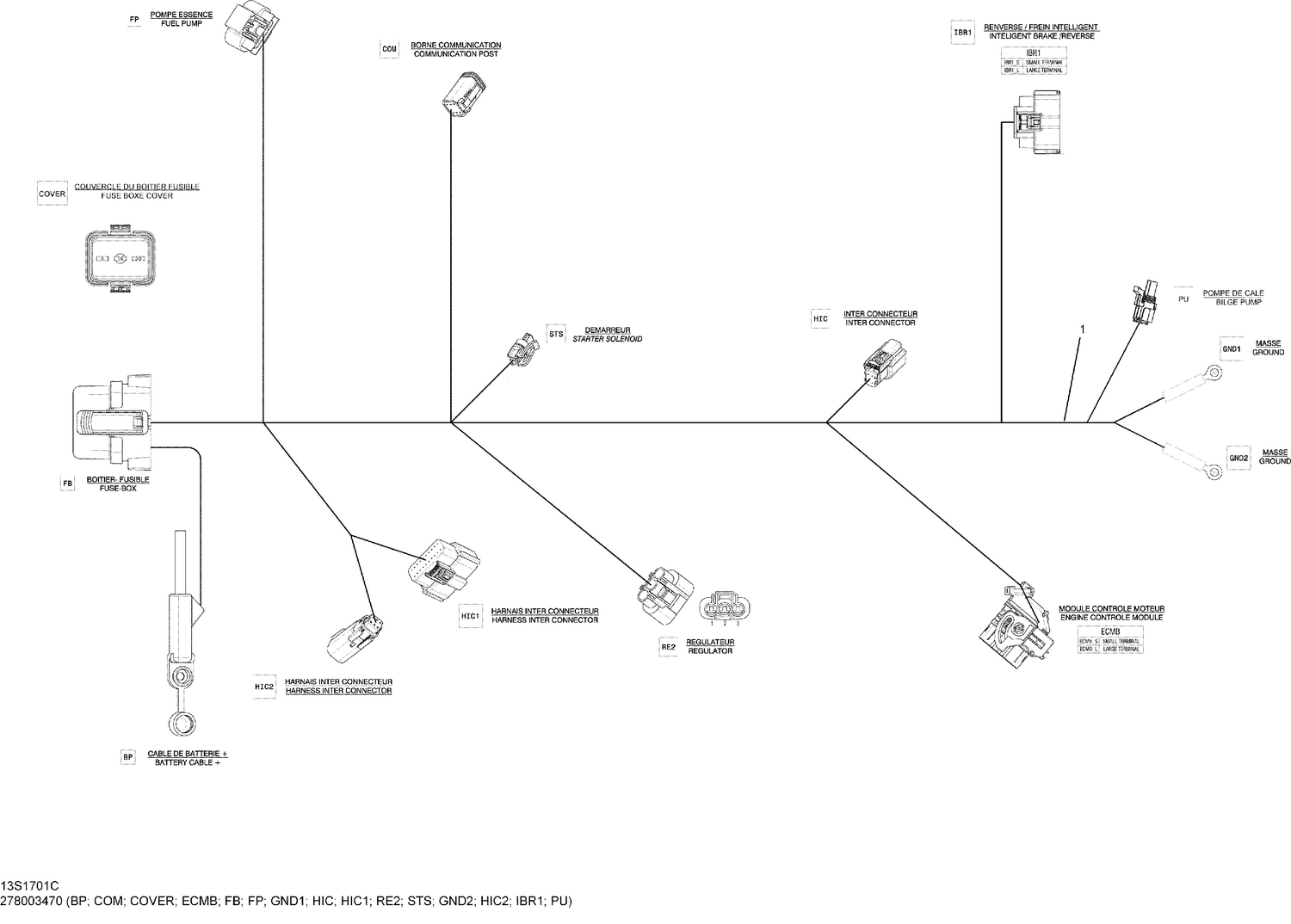

| Ref | Part Number | Description |
|---|
| BP |
278002993 |
Battery Cable |
| COM |
278000632 |
Female Terminal |
| COM |
278001665 |
Female Terminal |
| COM |
278002896 |
Housing, 6 Circuits |
| COM |
515175678 |
Male Wedge, 6 Circuits |
| COVER |
710000742 |
Little Fuse, 5 Amperes |
| COVER |
710000745 |
Little Fuse, 15 Ampere |
| COVER |
710000747 |
Little Fuse, 30 Amperes |
| ECMB_L |
710001590 |
Female Terminal |
| ECMB_L |
710001593 |
Plug |
| ECMB_L |
710001727 |
Female Terminal |
| ECMB_S |
710001588 |
Female Terminal Housing, 48 Circuits |
| ECMB_S |
710001589 |
Female Terminal |
| ECMB_S |
710001591 |
Cover, 48 positions |
| ECMB_S |
710001592 |
Plug |
| FB |
278000218 |
Wire Seal |
| FB |
278001065 |
Wire Seal |
| FB |
278002578 |
Female Terminal |
| FB |
278002824 |
Case Ass'y with seal, 24 positions |
| FB |
278002825 |
Fuse Cover |
| FB |
278002880 |
Seal Plug |
| FB |
278003828 |
Relay 30 Amp This part replaces 278002822. |
| FB |
710000048 |
Wire Seal |
| FB |
710000742 |
Little Fuse, 5 Amperes |
| FB |
710000744 |
Little Fuse, 10 Amperes |
| FB |
710000745 |
Little Fuse, 15 Ampere |
| FB |
710000747 |
Little Fuse, 30 Amperes |
| FB |
710000890 |
Female Terminal |
| FB |
710000918 |
Female Terminal |
| FB |
710001008 |
Little Fuse, 3 AMP |
| FP |
278002185 |
Male Housing, 4 Circuits |
| FP |
278002186 |
Wire Seal |
| FP |
278002187 |
Female Terminal |
| FP |
710001222 |
Lock |
| GND1 |
278001392 |
Open Barrel Terminal |
| GND2 |
278000992 |
Open Barrel |
| HIC |
278002453 |
Female Terminal |
| HIC |
278002854 |
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership |
| HIC1 |
278002453 |
Female Terminal |
| HIC1 |
278002457 |
Seal Plug |
| HIC1 |
278002642 |
Female Terminal |
| HIC1 |
278002858 |
Female Housing 20 Circuits |
| HIC2 |
278002454 |
Male Terminal |
| HIC2 |
278002906 |
Male Housing, 6 Circuits |
| IBR1_L |
278002880 |
Seal Plug |
| IBR1_L |
278003045 |
Female Terminal |
| IBR1_L |
278003046 |
Seal |
| IBR1_S |
278002453 |
Female Terminal |
| IBR1_S |
278002860 |
Sealing Cap |
| IBR1_S |
278003484 |
Female Housing ,16 Circuits This part replaces 278003044. |
| PU |
278000220 |
Male Connector, 2 Circuits |
| PU |
278000223 |
Female Terminal |
| PU |
278001065 |
Wire Seal |
| RE2 |
710000877 |
Female Terminal |
| RE2 |
710000879 |
Female Housing, 3 Circuits |
| RE2 |
710000881 |
Seal |
| RE2 |
710000882 |
Cap |
| STS |
515177192 |
Female Housing, 2 Circuits |
| STS |
710001163 |
Wire Seal |
| 1 |
278003470 |
Main Harness |
