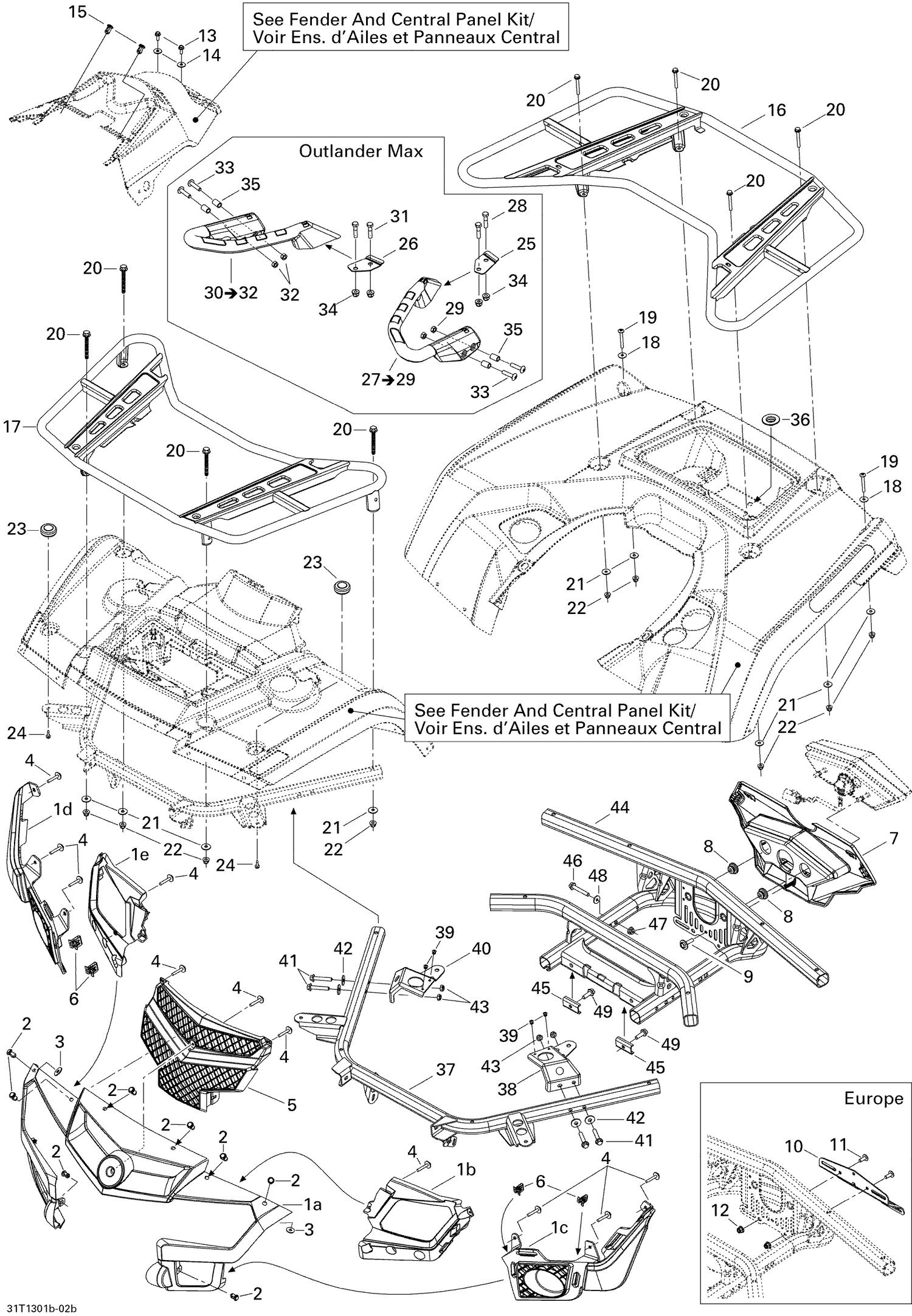

| Ref | Part Number | Description |
|---|
| 1b |
705002825 |
LH HEAD LAMP SUPPORT - Call your local BRP dealership |
| 1e |
705002826 |
RH Head Lamp Support |
| 2 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 3 |
506151252 |
Washer |
| 4 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 5 |
705002779 |
UPPER GRILL - Call your local BRP dealership |
| 6 |
517302785 |
Edge Clip |
| 13 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 14 |
250200082 |
Flat Washer This part replaces 391302000. |
| 15 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 16 |
705002617 |
Rear Luggage Rack |
| 17 |
705002616 |
Front Luggage Rack |
| 18 |
250200040 |
Flat Washer |
| 19 |
250000749 |
Torx Truss Screw M6 X 50 This part replaces 250000239. |
| 20 |
207065544 |
Hex. Screw M6 X 55 |
| 21 |
224061201 |
Flat Washer This part replaces 250200072. |
| 22 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 23 |
705003667 |
RUBBER CAP - Call your local BRP dealership |
| 24 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 25 |
705002762 |
LH FIXATION PLATE - Call your local BRP dealership |
| 26 |
705002760 |
RH FIXATION PLATE - Call your local BRP dealership |
| 27 |
705002700 |
LH HANDLE - Call your local BRP dealership |
| 28 |
207083544 |
Hex. Screw M8 X 35 |
| 29 |
232081494 |
HEX. NUT - Call your local BRP dealership |
| 30 |
705002699 |
RH HANDLE - Call your local BRP dealership |
| 31 |
207083544 |
Hex. Screw M8 X 35 |
| 32 |
232081494 |
HEX. NUT - Call your local BRP dealership |
| 33 |
250000441 |
TORX SCREW M8 X 35 - Call your local BRP dealership |
| 34 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 35 |
705002153 |
Bushing |
| 36 |
414859400 |
CAP - Call your local BRP dealership |
| 37 |
705003655 |
FRONT SUPPORT - Call your local BRP dealership |
| 38 |
705002995 |
LH ANCHOR PLATE - Call your local BRP dealership |
| 39 |
390402300 |
Pop Rivet 3/16" |
| 40 |
705002997 |
RH Anchor Plate |
| 41 |
207684544 |
Hex. Flange Screw M8 X 45 |
| 42 |
234082410 |
Flat Washer 8 mm |
| 43 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 44 |
705003656 |
Rear Support |
| 45 |
705003647 |
U Reinforcement |
| 46 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 47 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 48 |
234082410 |
Flat Washer 8 mm |
