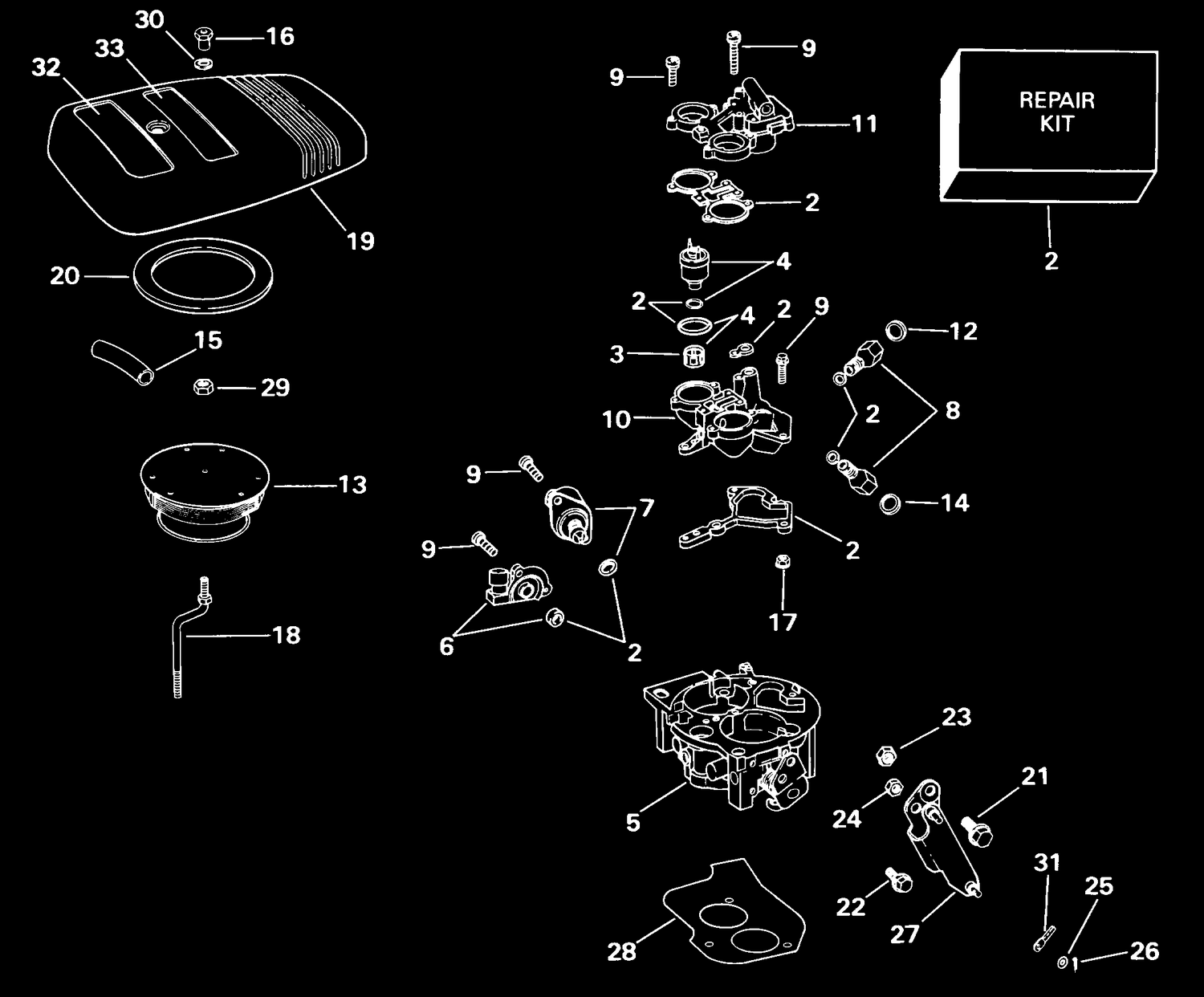

| Ref | Part Number | Description |
|---|
| 1 |
3856395 |
THROTTLE BODY ASSY. |
| 2 |
3855179 |
REPAIR KIT |
| 3 |
3854189 |
COVER & SEAL, ECA module |
| 4 |
3857398 |
FUEL INJECTOR |
| 5 |
3855183 |
THROTTLE BODY |
| 6 |
3855184 |
THROTTLE POSITION SENSOR |
| 7 |
3855185 |
IDLE AIR CONTROL VALVE |
| 8 |
3855186 |
FUEL NUT KIT |
| 9 |
3855187 |
SCREW, Assortment |
| 10 |
3857396 |
FUEL METER BODY |
| 11 |
3857397 |
PRESSURE REGULATOR COVER |
| 12 |
3850424 |
O-RING, 3/8 in. |
| 13 |
3856913 |
FLAME ARRESTOR |
| 14 |
3850423 |
O-RING, 5/16 in. |
| 15 |
3852668 |
HOSE Crankcase vent |
| 16 |
3852749 |
NUT, Cover |
| 17 |
0316355 |
BUT, Carburetor mounting This part replaces 3852142. |
| 18 |
3850274 |
STUD, Flame arrestor |
| 19 |
3850510 |
COVER, Flame arrestor |
| 20 |
3850458 |
PAD, Flame arrestor |
| 21 |
3853428 |
SCREW, Anchor bracket |
| 22 |
3850411 |
SCREW, Throttle lever |
| 23 |
0123227 |
LOCKNUT, Motor bracket This part replaces 3852009. |
| 24 |
3852420 |
LOCKNUT, Throttle lever |
| 25 |
0329241 |
RONDELLE This part replaces 3852193. |
| 27 |
3856211 |
THROTTLE LEVER & PIN ASSY. |
| 28 |
3850355 |
GASKET, Throttle body |
| 29 |
3853561 |
NUT, Arrestor to carburetor |
| 31 |
3850950 |
ANCHOR, Cable |
| 32 |
3856274 |
DECAL, 5.7 GSi |
| 32 |
3857653 |
DECAL, 5.0 Gi |
