Home / BRP / STERN DRIVE / 1992 / 3.20 / 32DAPEAMH 1992 / POWER TRIM AND TILT

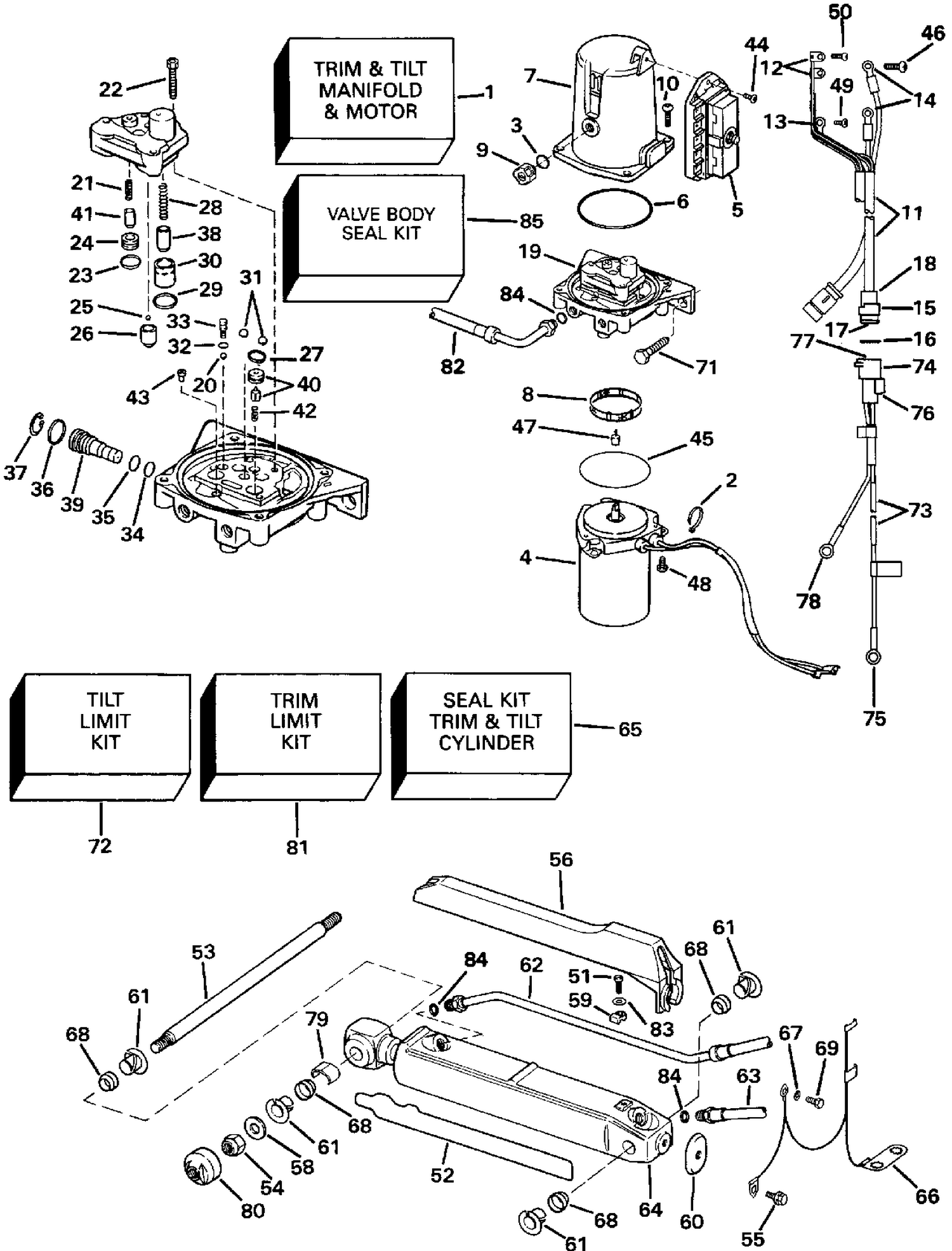

POWER TRIM AND TILT

POWER TRIM AND TILT

Parts (66)

RefPart NumberDescription
1 3860879 Manifold & Pump Ay This part replaces 0986914.
2 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
4 0986280 MOTOR ASSY
5 0986281 RELAY & CIRCUIT BREAKER ASSY
6 3852508 O-RING, Reservoir This part replaces 0910702.
7 0986535 RESERVOIR
8 0914045 FILTER
9 0914047 PLUG, Fill hole
10 0914048 SCREW, Reservoir to manifold
11 3854038 CABLE ASSY This part replaces 0986961.
12 0510827 RING TERMINAL
19 3850033 Manf This part replaces 0986278.
21 0911965 SPRING, Pump relief
22 0914054 SCREW, Pump to manifold
23 0914055 O-RING, Valve seat
24 0914056 BALL, Piston, pump control
25 0914057 BALL Piston, pump control
26 0914058 PISTON pump control
27 0914059 O-RING, Piston, pump control
28 0914060 SPRING, Valve core, trim up
29 0914061 O-RING, Valve seat, trim up
30 0914062 SEAT, Valve core, trim up
32 0914064 O-RING, Cap manual release
33 0914065 CAP, Manual release
34 0914066 BACK-UP RING, Manual release
35 0914067 O-RING, Manual release
36 0914068 O-RING, Manual release
38 0983786 VALVE CORE & SEAL
39 0986279 VALVE, Manual release
40 0986283 CHECK VALVE ASSY
41 0986284 VALVE CORE & SEAL ASSY
42 0914046 SPRING, Check valve
43 0914712 FILTER, Oil
44 0914049 SCREW, Motor to manifold
46 0914052 SCREW, Terminal
48 0914049 SCREW, Motor to manifold
49 0914050 SCREW, Terminal
50 0914051 SCREW, Terminal
52 3853332 APPLIQUE, Tilt cylinder This part replaces 0914789.
53 3853422 PIVOT PIN, Tilt cylinder This part replaces 0915049.
54 3853329 LOCKNUT, Transom plate This part replaces 0912920.
55 3852568 SCREW, Cover This part replaces 0911859.
56 3852378 COVER, Tilt cylinder This part replaces 0911907.
58 3852573 WASHER, Pivot pin This part replaces 0911915.
59 3852579 RETAINER, Oil line This part replaces 0911967.
60 3852681 RETAINER, Cover This part replaces 0913245.
61 3853423 BUSHING, Pivot pin This part replaces 0915050.
62 3853923 OIL LINE, Starboard, down This part replaces 0986146.
62 3853926 OIL LINE, Port, down This part replaces 0986150.
63 3853924 OIL LINE, Starboard, up This part replaces 0986147.
63 3853925 OIL LINE, Port, up This part replaces 0986148.
64 0986951 CYLINDER ASSY.
65 0985060 SEAL KIT
66 3854048 GROUND STRAP This part replaces 0987009.
67 0329241 RONDELLE
68 3853424 GROMMET, Pivot pin This part replaces 0915051.
71 3852581 LAG SCREW This part replaces 0911975.
72 3850887 TILT LIMIT KIT, 33 Degree This part replaces 0985574.
73 3854031 CABLE ASSY., Trim/tilt This part replaces 0986915.
75 3852527 RING TERMINAL This part replaces 0911523.
79 3853421 SPRING, Ground This part replaces 0915048.
80 3852958 CAP, Pivot shaft This part replaces 0914022.
81 0987142 TRIM LIMIT KIT
82 3853921 OIL LINE, Pump to manifold, down This part replaces 0986144.
82 3853922 OIL LINE, Pump to manifold, up This part replaces 0986145.
0913361 3854248 SPACER, Tilt limit This part replaces 0913361.
