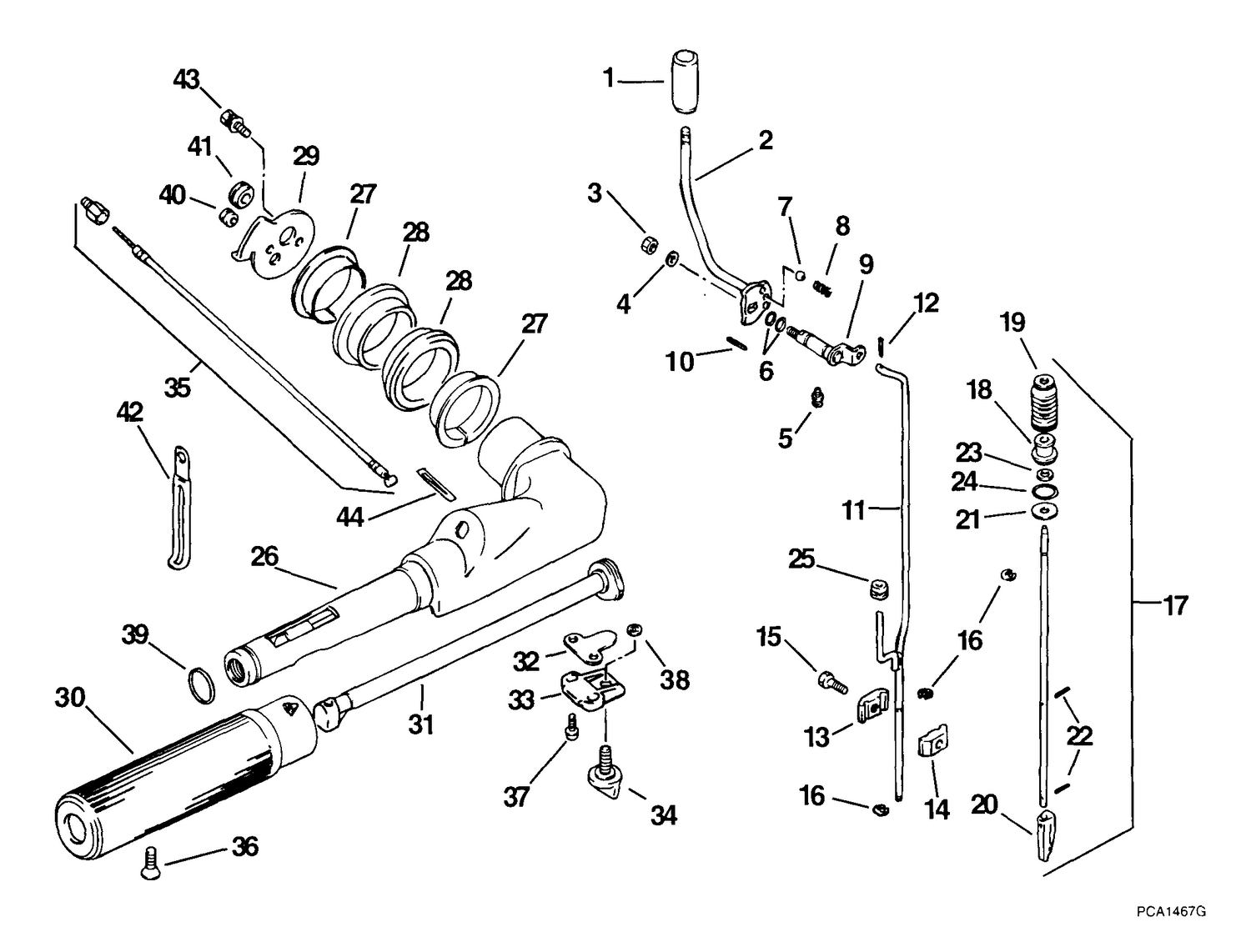

| Ref | Part Number | Description |
|---|
| 1 |
5030205 |
Knob |
| 2 |
5030203 |
SHIFT HANDLE |
| 3 |
5030052 |
NUT |
| 5 |
5030207 |
FITTING, GREASE |
| 7 |
5030096 |
BALL |
| 8 |
5030139 |
SPRING |
| 9 |
5030206 |
SHAFT, Handle to rod |
| 10 |
5030090 |
BOLT, Holder |
| 11 |
5030208 |
ROD, Shift handle, long |
| 11 |
5030209 |
ROD, Shift handle, short |
| 13 |
5030210 |
CONNECTOR, Rod, No. 1 |
| 14 |
5030211 |
CONNECTOR, Rod, No. 2 |
| 16 |
5030130 |
E RING |
| 17 |
5030212 |
ROD ASSY., Shift |
| 18 |
5030213 |
GUIDE, TIGE DE COMMANDE DE SENS DE MARCHE |
| 19 |
5030215 |
SOUFFLET DE PROTECTION, TIGE DE COMMANDE DE SENS DE MARCHE |
| 20 |
5030216 |
CAM, Shift |
| 21 |
5030055 |
RONDELLE (5,5X20X1,2mm) |
| 23 |
5030102 |
JOINT TORIQUE |
| 24 |
5030104 |
JOINT TORIQUE |
| 25 |
5034189 |
BUSHING This part replaces 5030115. |
| 26 |
5032517 |
Handle This part replaces 5031180. |
| 27 |
5030312 |
BUSHING, Tiller handle |
| 28 |
5030313 |
MOUNT, Tiller handle |
| 29 |
5030314 |
STOP, Tiller handle |
| 31 |
5030317 |
ROD, Handle |
| 32 |
5030318 |
PLATE, HANDLE |
| 34 |
5032475 |
KNOB, THROTTLE ADJUST This part replaces 5030320. |
| 35 |
5030321 |
CABLE, Throttle |
| 36 |
*5030049 |
SCREW (6X23mm) |
| 37 |
5030050 |
Screw |
| 39 |
5030105 |
O RING |
| 40 |
5030117 |
GROMMET, Stop switch lead |
| 41 |
5030118 |
GROMMET, Throttle cable |
| 42 |
5030135 |
BRIDE |
