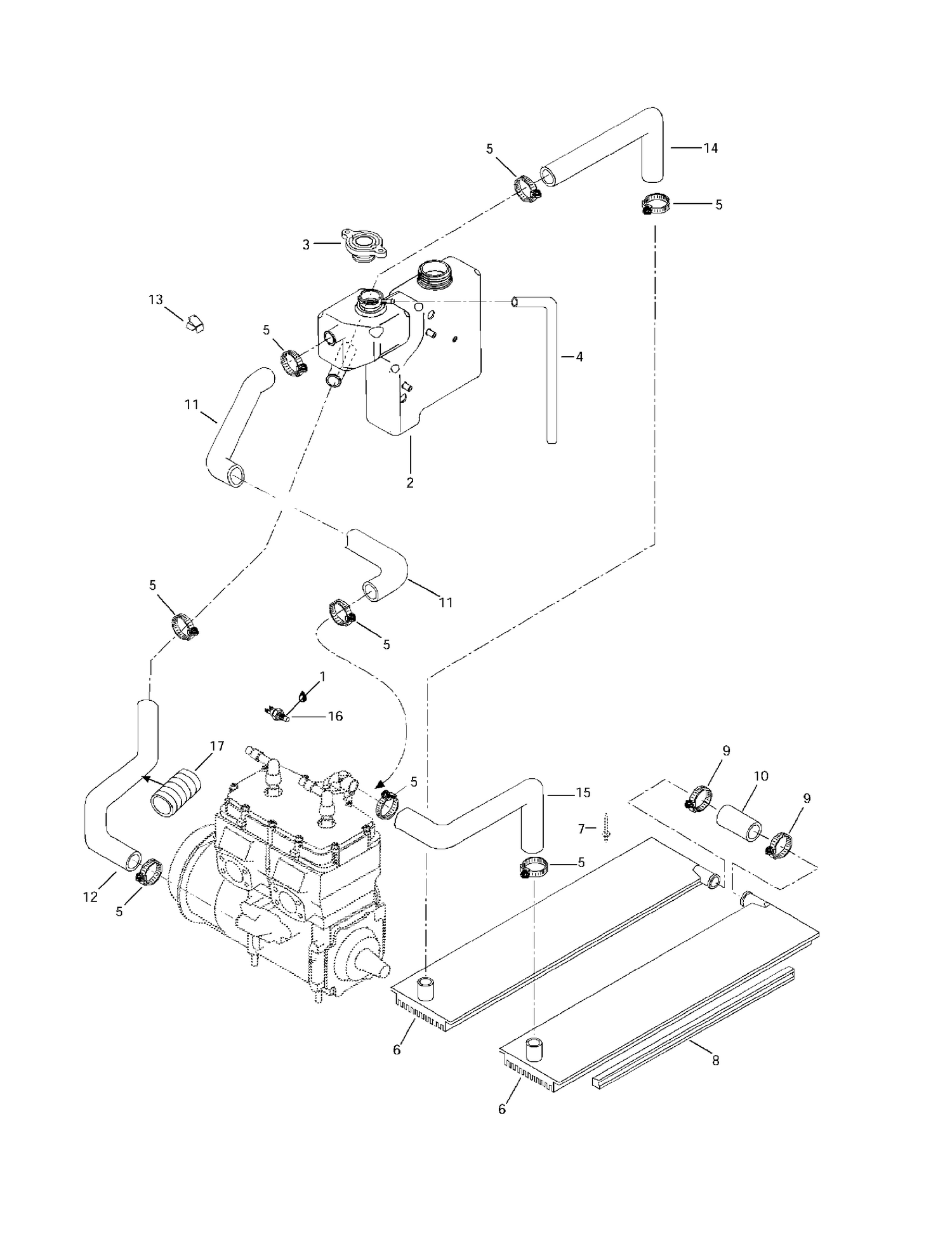

01- Cooling System
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 2 | 572076900 | Coolant Tank |
| 3 | 509000187 | Pressure Cap This part replaces 414684700. |
| 4 | 219704410 | Polyurethane Hose 10000Mm Long |
| 5 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 7 | Not | Available As Spare Part - Rivet |
| 9 | 408803400 | Clamp Tridon |
| 10 | 414795800 | Radiator Hose |
| 12 | 415010400 | Engine Inlet Hose |
| 13 | 414227300 | Clip |
| 14 | 414973000 | Radiator Outlet Hose |
| 16 | 512047000 | Temperature Sensor |
