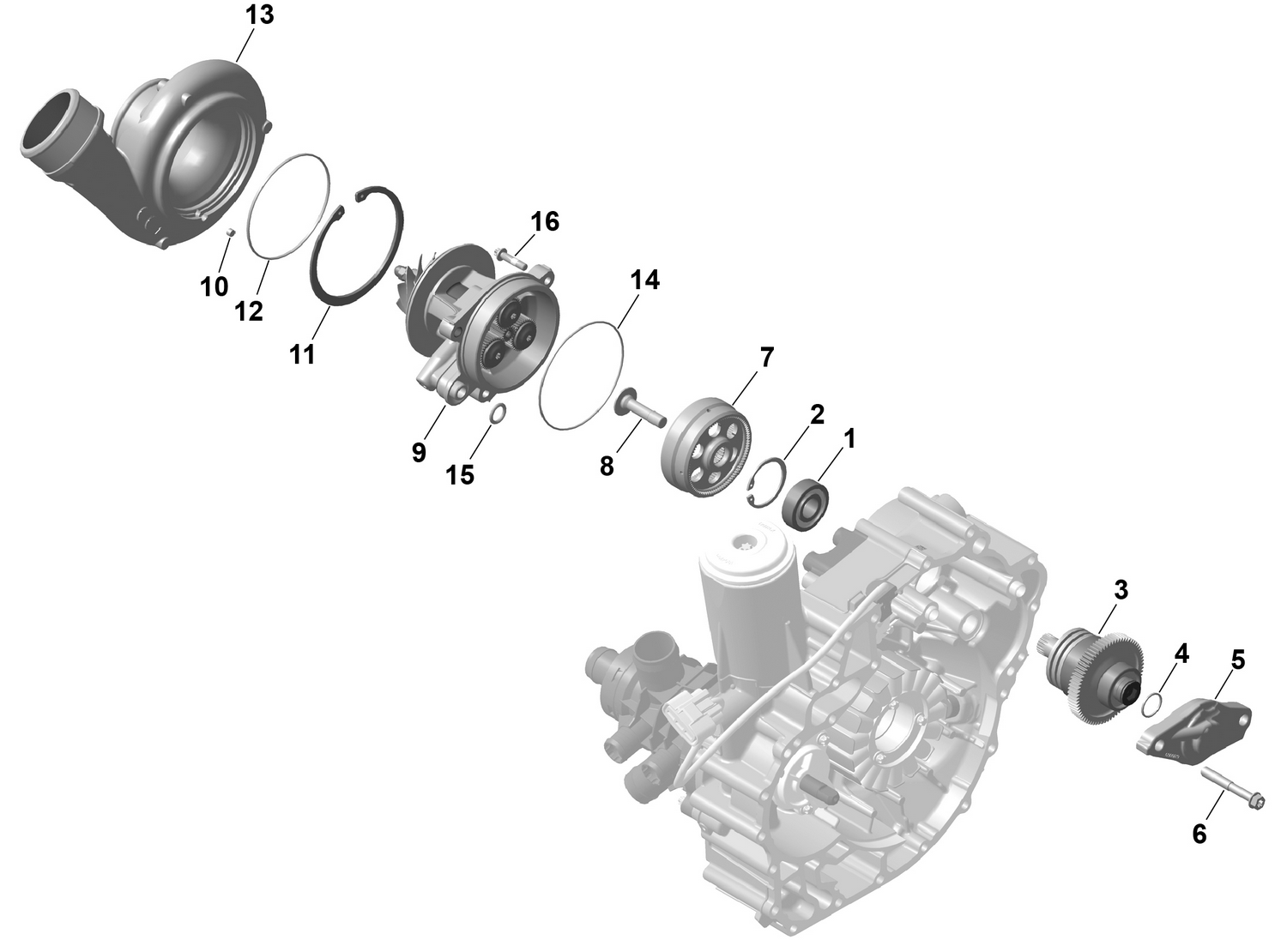

01- ROTAX - SuperCharger
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420232855 | Balll Bearing |
| 2 | 420945880 | Lock Ring |
| 4 | 420230410 | Gasket Ring |
| 5 | 420210869 | Bearing Bracket |
| 6 | 420641213 | Torx Flange Screw M8 X 55 This part replaces 420440397. |
| 7 | 420940826 | Hollow Wheel 91 Teeth |
| 8 | 420242421 | Flat Head Screw M10X1 |
| 10 | 420629320 | Needle Pin |
| 11 | 420651867 | Retaining Ring |
| 12 | 293300026 | O-Ring This part replaces 420850540. |
| 13 | XXX | Not Available As Spare Parts |
| 14 | 420650275 | O-Ring |
| 15 | 420250290 | O-ring |
