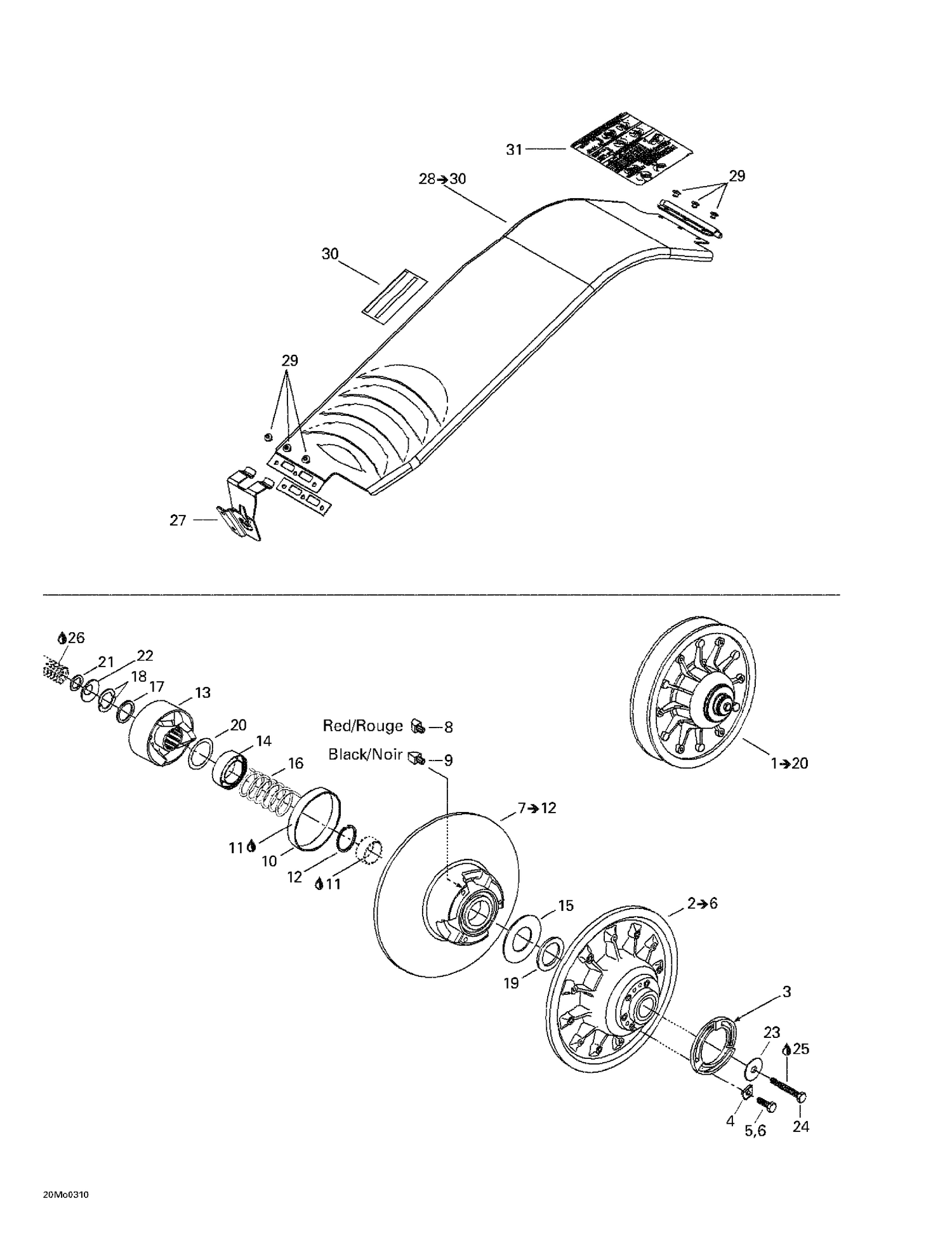

| Ref | Part Number | Description |
|---|
| 3 |
415005800 |
Adjustment Ring |
| 4 |
415005900 |
Adjustment Shim |
| 5 |
207162544 |
Hex. Screw M6 X 25 |
| 6 |
207162244 |
HEX. SCREW M6 X 22 - Call your local BRP dealership |
| 8 |
417126373 |
REAR CAM SLIDER SHOE, RED - Call your local BRP dealership |
| 9 |
417126374 |
Front Cam Slider Shoe, Black |
| 10 |
417126902 |
BUSHING - Call your local BRP dealership This part replaces 414978100. |
| 11 |
413703100 |
Loctite 609, 10 ml |
| 12 |
371911200 |
CIRCLIP - Call your local BRP dealership |
| 14 |
417126381 |
GUARD - Call your local BRP dealership |
| 15 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 16 |
414978300 |
Release Spring, Purple |
| 17 |
417126375 |
Spacer |
| 18 |
371911000 |
HALF KEY - Call your local BRP dealership |
| 19 |
504112300 |
SHIM - Call your local BRP dealership |
| 20 |
417126322 |
SWIVEL ABUTMENT - Call your local BRP dealership |
| 21 |
417300265 |
Spacer This part replaces 417300054. |
| 22 |
417300055 |
Protector |
| 23 |
517302322 |
Strength Washer |
| 24 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 25 |
293800060 |
Loctite 243, 10 ml |
| 26 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 27 |
417300001 |
Bracket |
| 29 |
390402200 |
Pop Rivet 3/16" |
| 30 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 31 |
516001640 |
Decal, Suspension Adjustment Decal |
