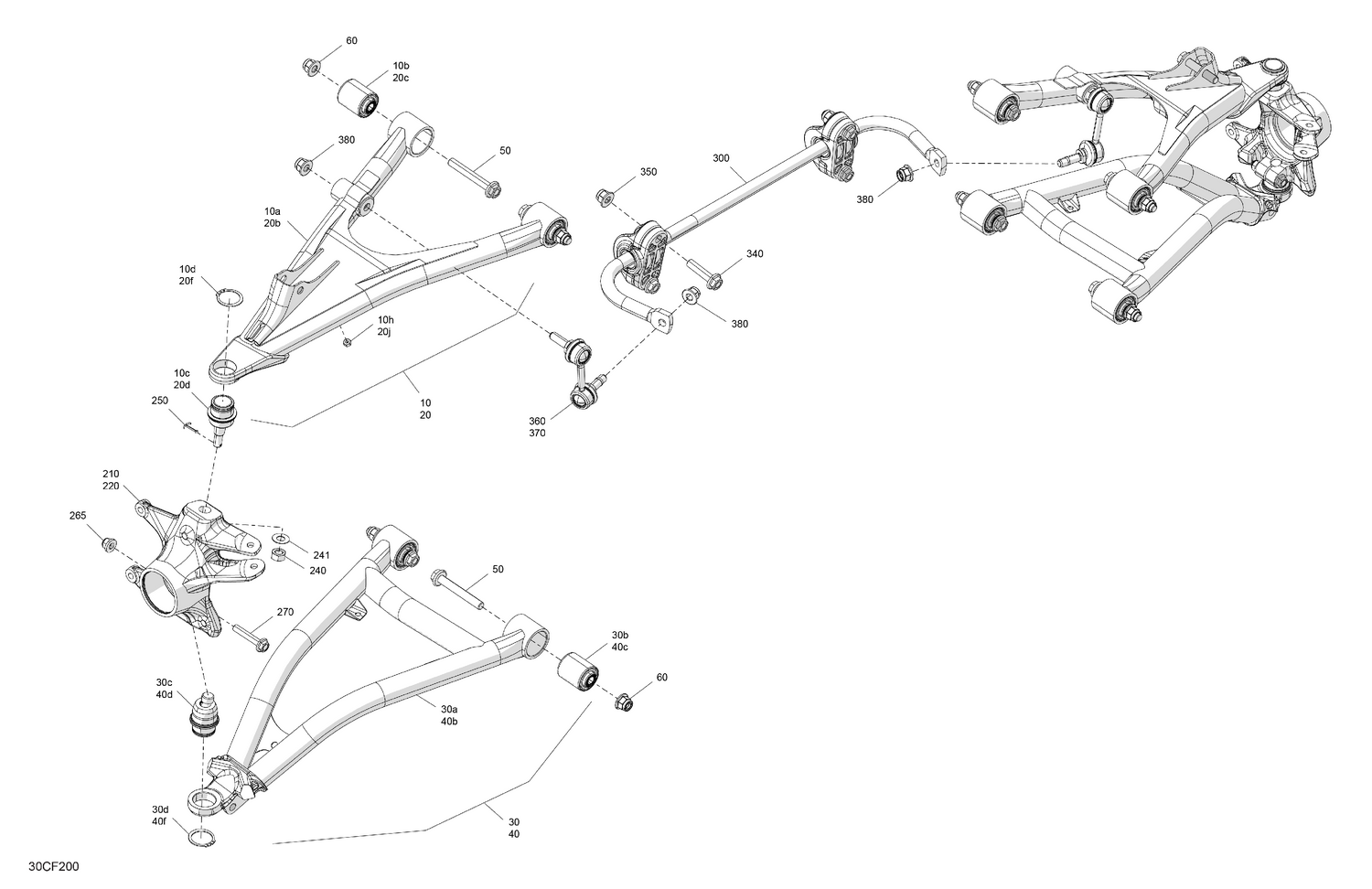

05- Suspension - Front Components
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10a | XXX | Not Available As Spare Parts |
| 10b | 706005367 | Suspension Arm Bushing |
| 10c | 706203084 | Ball Joint |
| 10d | 293370035 | Circlip |
| 10h | 232061600 | Hex. Nut M6 |
| 20b | XXX | Not Available As Spare Parts |
| 20c | 706005367 | Suspension Arm Bushing |
| 20d | 706203084 | Ball Joint |
| 20f | 293370035 | Circlip |
| 20j | 232061600 | Hex. Nut M6 |
| 30a | XXX | Not Available As Spare Parts |
| 30b | 706005367 | Suspension Arm Bushing |
| 30c | 706202045 | Ball Joint |
| 30d | 293370035 | Circlip |
| 40b | XXX | Not Available As Spare Parts |
| 40c | 706005367 | Suspension Arm Bushing |
| 40d | 706202045 | Ball Joint |
| 40f | 293370035 | Circlip |
| 50 | 250000859 | Flange Screw M12 X 85 |
| 60 | 250001195 | Elastic Flange Nut M12 |
| 210 | 706205528 | LH Front Machined Knuckled |
| 220 | 706205530 | RH Front Knuckle Machined |
| 240 | 250100239 | Hex Nut M12 |
| 241 | 706200281 | Hardened Washer |
| 250 | 211400017 | Cotter Pin |
| 265 | 233201466 | Flange Elastic Nut M10 |
| 270 | 207605546 | Hex. Flange Screw M10 X 55 |
| 300 | 706205597 | Stabilizer Bar Ass'y |
| 340 | 250001233 | Screw Hex Flange M12 X 50 |
| 350 | 250001195 | Elastic Flange Nut M12 |
| 360 | 706205833 | LH Stabilizer Bar Link |
| 370 | 706205834 | RH Stabilizer Bar Link |
