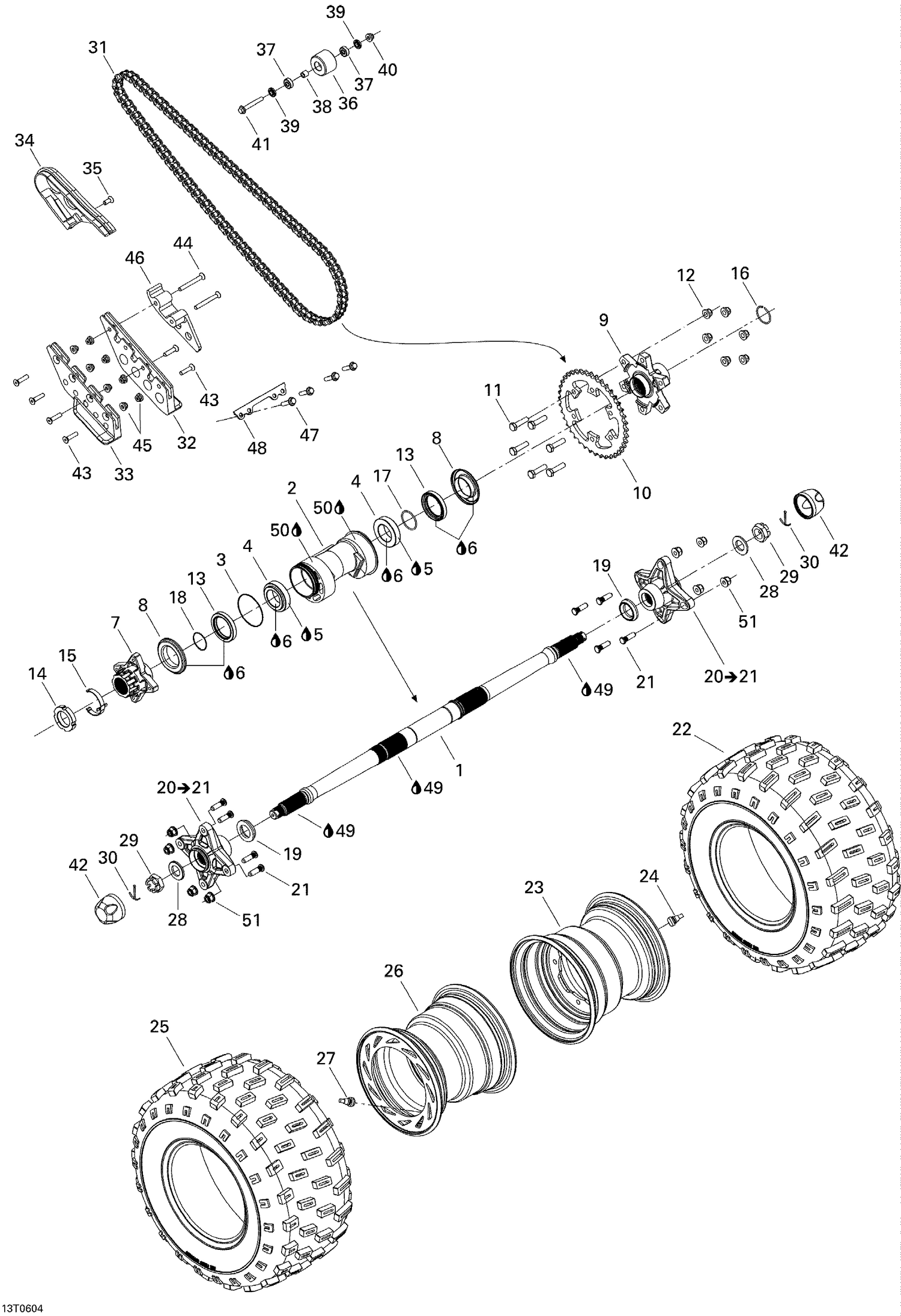

| Ref | Part Number | Description |
|---|
| 1 |
705500387 |
DRIVE AXLE - Call your local BRP dealership |
| 2 |
705500388 |
CHAIN TIGHTENER - Call your local BRP dealership |
| 3 |
293300085 |
O-RING - Call your local BRP dealership |
| 4 |
293350043 |
Cone Bearing |
| 5 |
413703100 |
Loctite 609, 10 ml |
| 6 |
293550010 |
Synthetic Grease, 400 G |
| 7 |
705500406 |
BRAKE HUB - Call your local BRP dealership |
| 8 |
705500408 |
WEAR RING - Call your local BRP dealership |
| 9 |
705500344 |
Wheel Hub |
| 10 |
705500390 |
Sprocket, 40 Teeth |
| 11 |
207004046 |
HEX. SCREW M10 X 40 - Call your local BRP dealership |
| 12 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 13 |
293250222 |
Joint Etanche *Oil Seal This part replaces 293250115. |
| 14 |
250100037 |
Slotted Round Nuts M38 |
| 15 |
250100038 |
Tab Lock |
| 16 |
705500108 |
RING RETAINER - Call your local BRP dealership |
| 17 |
293300099 |
O-RING - Call your local BRP dealership |
| 18 |
293300100 |
O-Ring |
| 19 |
705500067 |
RING SUPPORT - Call your local BRP dealership |
| 21 |
250000138 |
WHEEL STUD - Call your local BRP dealership |
| 22 |
705500331 |
Rear Tire |
| 23 |
705500332 |
RH REAR RIM - Call your local BRP dealership |
| 24 |
705400193 |
Rim Valve With Cap |
| 25 |
705500331 |
Rear Tire |
| 26 |
705500336 |
LH Rear Rim |
| 27 |
705400193 |
Rim Valve With Cap |
| 28 |
250200004 |
HARDENED WASHER - Call your local BRP dealership |
| 29 |
250100006 |
HEX. CASTELLATED NUT M24 - Call your local BRP dealership |
| 30 |
371003400 |
Cotter Pin This part replaces 211400011. |
| 31 |
705500672 |
CHAIN - Call your local BRP dealership |
| 32 |
705500414 |
PROTECTOR - Call your local BRP dealership |
| 33 |
705500415 |
PROTECTOR - Call your local BRP dealership |
| 34 |
705500442 |
Shoe Slider |
| 35 |
205882044 |
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership |
| 36 |
705500368 |
CHAIN ROLLER - Call your local BRP dealership |
| 37 |
293350039 |
BALL BEARING - Call your local BRP dealership |
| 38 |
705500397 |
Spacer |
| 39 |
705500398 |
SPACER - Call your local BRP dealership |
| 40 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 41 |
207686044 |
Hex. Flange Screw M8 x 60 |
| 42 |
705400012 |
WHEEL CAP - Call your local BRP dealership |
| 43 |
205383544 |
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership |
| 44 |
205387044 |
SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership |
| 45 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 46 |
705500116 |
PROTECTOR - Call your local BRP dealership |
| 47 |
207683544 |
Hex. Flange Screw M8 X 35 |
| 48 |
705500443 |
SEAL - Call your local BRP dealership |
| 49 |
293550062 |
Graisse *Grease This part replaces 293550019. |
| 50 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
