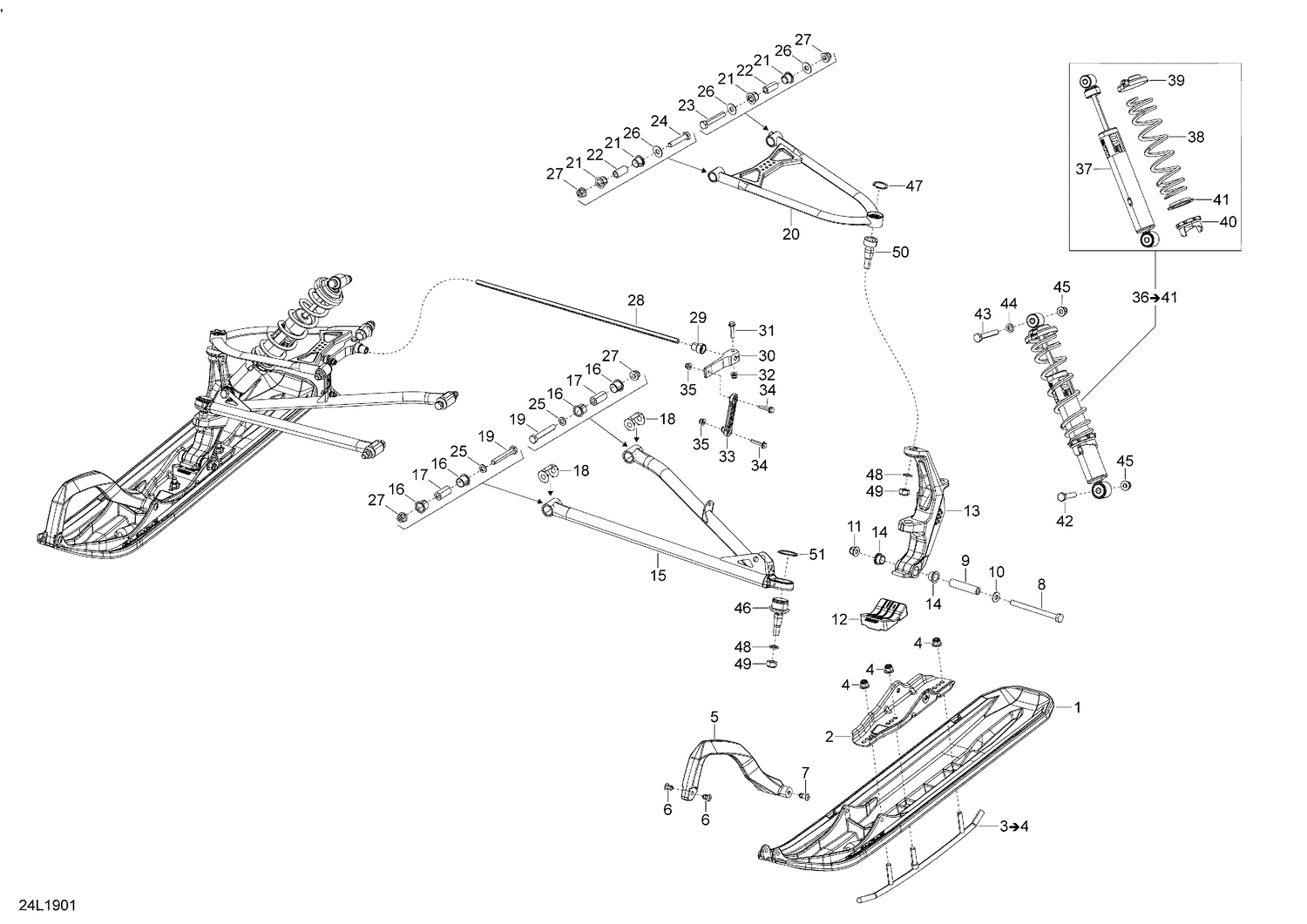

07- Front Suspension And Ski - Adventure - 600 ACE

Parts (53)

Ref	Part Number	Description
1	505074262	Black, Ski Blade Xc
2	505073240	Ski Bridge Weld
3	860202821	Round Carbide Runner Kit This part replaces 860200959.
4	233201414	Hex. Flanged Elastic Nut M10
5	505073109	Handle
6	505071812	Retainer 17mm long
7	505072133	Retainer 23mm Long
8	250000703	Hex. Screw M10 X 130
9	506133300	Spacer
10	503192496	Washer
11	233201464	Hex. Elast. Flanged Nut M10 x 1.5
12	505072594	Ski Stopper
13	505073428	Ski-leg Machined
13	505073430	Ski-leg Machined
14	505072690	Leg Bushing
15	505073420	LH Lower Arm 42", Black Epoxy
15	505073426	RH Lower Arm 42", Black Epoxy
16	505073330	Bushing
17	505072209	Bushing
18	505072634	Wear Plate
19	250001024	Screw Hex. M10 X 70
20	505073412	LH Upper Arm 42", Black Epoxy
20	505073416	RH Upper Arm 42", Black Epoxy
21	505073329	Bushing
22	505072143	Bushing
23	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
24	250001022	Screw Hex. M10 X 50 This part replaces 250000289.
25	503189564	Washer
26	505072392	Washer
27	250100165	Hex. Flanged Elastic Nut M10
28	505072602	Stabilisator
29	505072064	Bushing
30	505072394	Stabilisator Lever
31	207663046	Hex. Flange Screw M6 X 30
32	233261416	Elastic Flanged Nut M6 X 1.0
33	505072204	Sway Bar Double Joint Link
34	207663046	Hex. Flange Screw M6 X 30
35	233261416	Elastic Flanged Nut M6 X 1.0
37	505073345	Shock (ski)
38	505072882	Full Moon Spring 300mm-16N/MM
40	505073625	Adjustment Cam
41	503191872	Spring Guide
41a	706200881	Spring Stopper
42	207005544	Hex. Screw M10 X 55
43	207006544	Hex. Screw M10 X 1.5 X 65
44	503189564	Washer
45	233201414	Hex. Flanged Elastic Nut M10
46	505073636	Ball Joint
47	293370070	Circlip
48	234021410	Flat Washer 12 mm
49	250100089	Hex. Elastic Hex. Nut M12
50	505072913	Upper Ball Joint
51	293370035	Circlip
