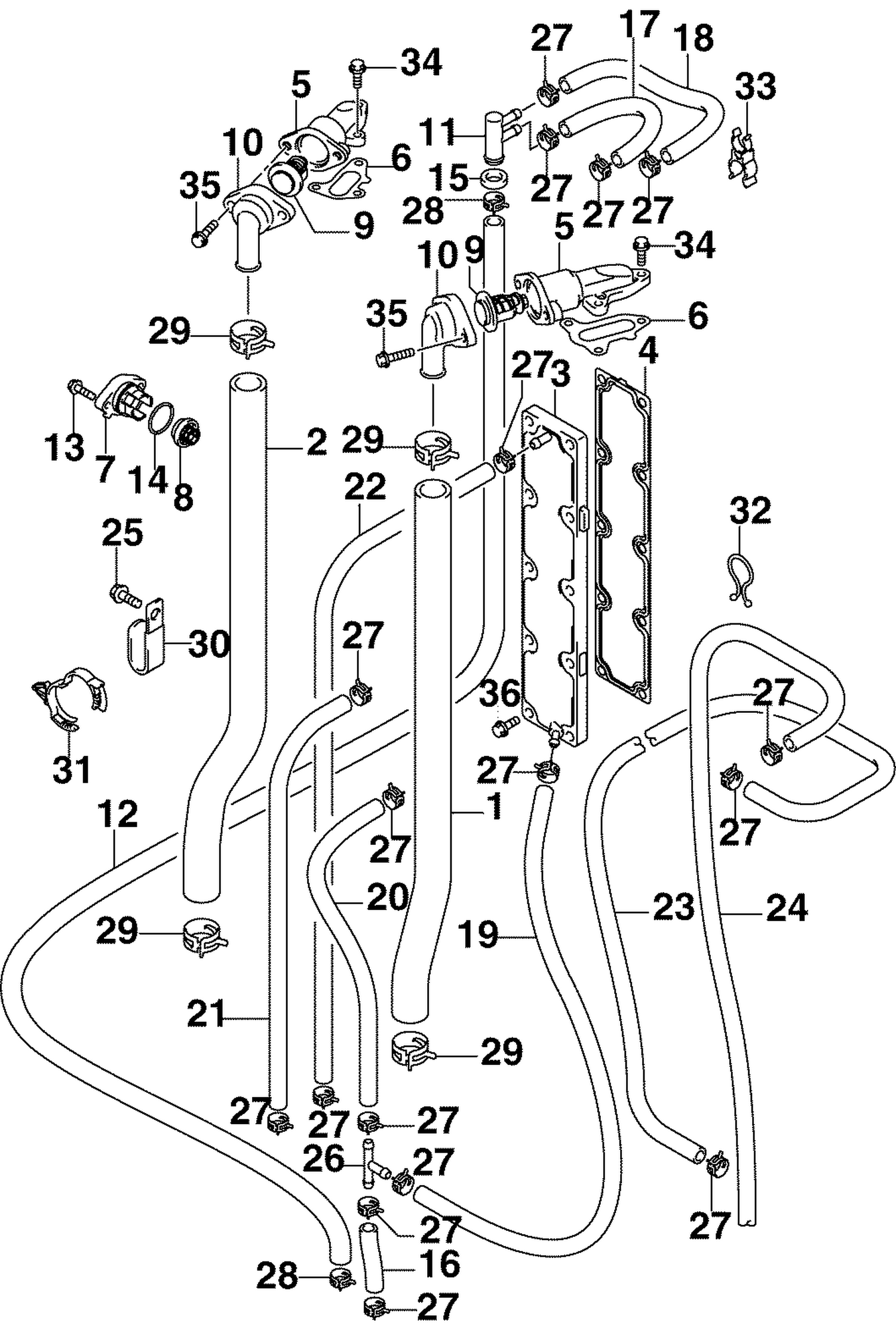

THERMOSTAT & COOLING HOSES
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034863 | HOSE, WATER RETURN STBD |
| 2 | 5034864 | HOSE, WATER RETURN PORT |
| 3 | 5034868 | PLATE, CYL BLOCK WTR JACKET |
| 5 | 5035047 | PIPE, OUTLET |
| 6 | 5035048 | GASKET, OUTLET PIPE |
| 7 | 5033718 | COVER, WATER PRESSURE VALVE |
| 8 | 5032471 | VALVE, WATER PRESS |
| 9 | 5033721 | THERMOSTAT (60.C) |
| 9 | 5033722 | THERMOSTAT (71.C) |
| 10 | 5035052 | COVER, THERMOSTAT |
| 12 | 5035053 | HOSE (3 WAY TO E/H COV) |
| 14 | 5030541 | O RING |
| 15 | 5035322 | CUSHION |
| 21 | 5030122 | HOSE (150mm) |
| 22 | 5030122 | HOSE (150mm) |
| 25 | 5030992 | BOLT |
| 28 | 5033626 | CLIP |
| 29 | 5030581 | CLAMP |
| 30 | 5035351 | CLAMP |
| 31 | 5031903 | CLAMP |
| 32 | 5031076 | CLAMP, FUEL PUMP LEAD |
| 33 | 5035359 | CLAMP |
