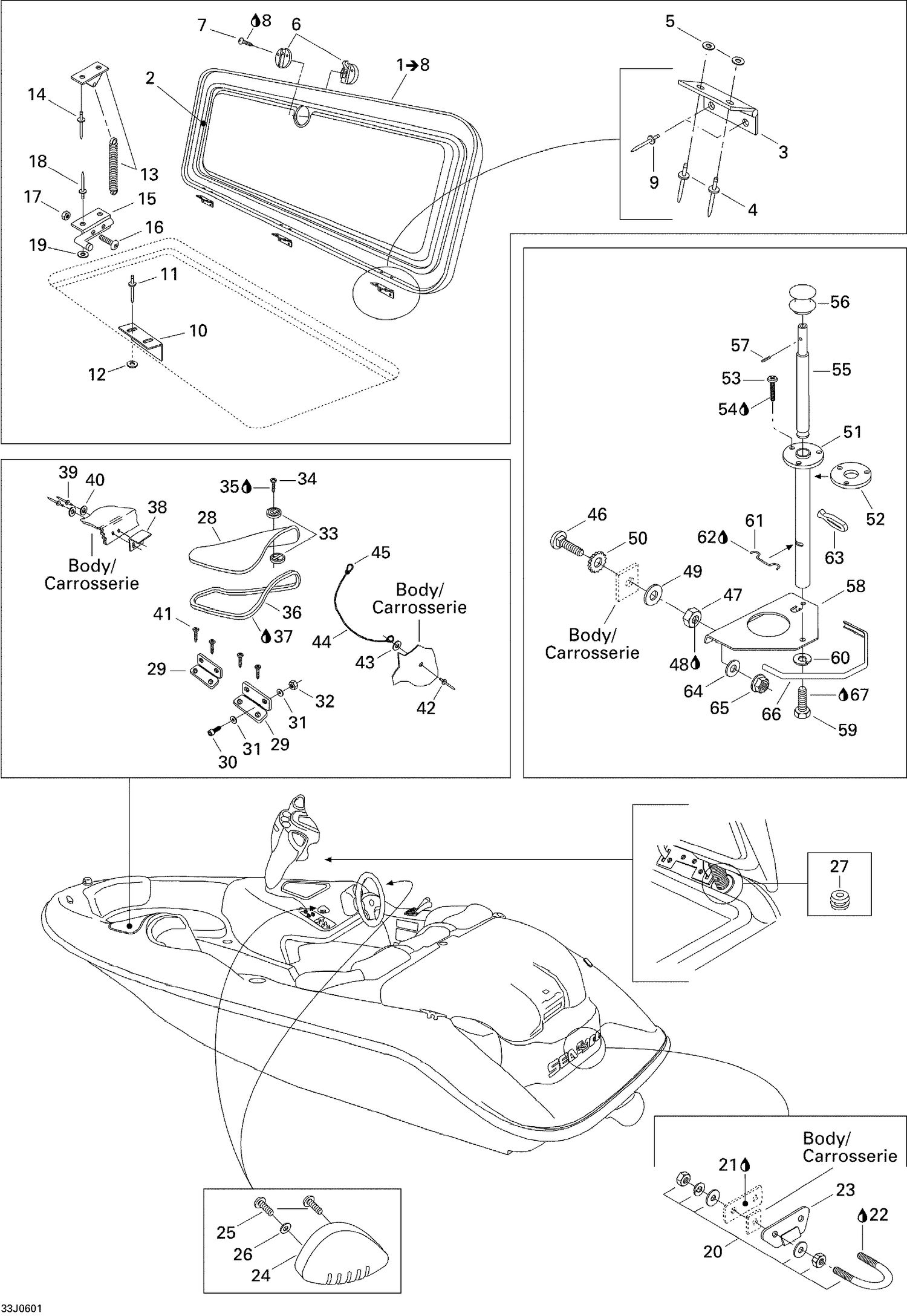

| Ref | Part Number | Description |
|---|
| 1 |
204072636 |
CENTRAL COVER - Call your local BRP dealership This part replaces 204072458. |
| 2 |
219704368 |
Seal Tray 1000Mm Long |
| 3 |
204072601 |
HINGE - Call your local BRP dealership This part replaces 291000538. |
| 4 |
293150088 |
Pop Rivet 3/16" |
| 5 |
234051600 |
Flat Washer M5, Stainless |
| 6 |
204070120 |
LATCH, WHITE - Call your local BRP dealership |
| 7 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 8 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 9 |
293150005 |
Pop Rivet 3/16" |
| 10 |
204070060 |
KEEPER - Call your local BRP dealership |
| 11 |
293150088 |
Pop Rivet 3/16" |
| 12 |
211200039 |
FLAT WASHER 3/16? - Call your local BRP dealership |
| 13 |
204000071 |
SPRING SEAT - Call your local BRP dealership |
| 14 |
293150055 |
RIVET_POP 3/16 - Call your local BRP dealership |
| 15 |
Not |
Available As Spare Part - Spring Bracket |
| 16 |
250000231 |
PHILLIPS SCREW 6-32 X 3/8 - Call your local BRP dealership |
| 17 |
Not |
Available As Spare Part - Hex Nut 6-32 |
| 18 |
293150043 |
Pop Rivet 3/16" |
| 19 |
211200039 |
FLAT WASHER 3/16? - Call your local BRP dealership |
| 20 |
204070418 |
U-Bolt |
| 21 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 22 |
293800005 |
Loctite 271, 10 ml |
| 23 |
204070054 |
Ski Tow Plate, Black |
| 24 |
291000829 |
Ventilation Grill, Yellow |
| 25 |
241642060 |
Flange Screw K40 X 20 |
| 26 |
234042600 |
Flat Washer 4 mm, Stainless |
| 27 |
204070238 |
Grommet |
| 28 |
204072062 |
STORAGE DOOR - Call your local BRP dealership |
| 29 |
269700031 |
Hinge |
| 30 |
205431060 |
Socket Head Screw M3 X 10 |
| 31 |
234031600 |
Flat Washer 3 mm, Stainless Steel |
| 32 |
232130600 |
HEX. JAM NUT 3 MM - Call your local BRP dealership |
| 33 |
204070120 |
LATCH, WHITE - Call your local BRP dealership |
| 34 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 35 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 36 |
204070055 |
BLACK TRIM, METER - Call your local BRP dealership |
| 38 |
204070060 |
KEEPER - Call your local BRP dealership |
| 39 |
293150039 |
Pop Rivet 3/16" |
| 40 |
234051600 |
Flat Washer M5, Stainless |
| 41 |
209631360 |
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership |
| 42 |
293150039 |
Pop Rivet 3/16" |
| 43 |
234052600 |
Flat Washer 5 mm, Stainless |
| 44 |
204000117 |
RETAINER CABLE - Call your local BRP dealership |
| 45 |
293750000 |
CABLE CLIP - Call your local BRP dealership |
| 46 |
204000130 |
Elevator Bolt |
| 47 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 48 |
293800005 |
Loctite 271, 10 ml |
| 49 |
234062600 |
Flat Washer M6, Stainless |
| 50 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 51 |
204071495 |
FIXED TUBE - Call your local BRP dealership |
| 52 |
293830045 |
RUBBER WASHER - Call your local BRP dealership |
| 53 |
208564060 |
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership |
| 54 |
293800060 |
Loctite 243, 10 ml |
| 55 |
204071624 |
SKI SHAFT - Call your local BRP dealership |
| 56 |
293000004 |
SKI SHAFT CAP - Call your local BRP dealership |
| 57 |
211400004 |
ROLLED PIN M3 X 30 - Call your local BRP dealership |
| 58 |
204071140 |
FIXATION PLATE - Call your local BRP dealership |
| 59 |
207181860 |
Hex. Screw M8 X 18 |
| 60 |
234181601 |
Lock Washer 8 mm, Stainless |
| 61 |
291001205 |
SPRING - Call your local BRP dealership |
| 62 |
293550010 |
Synthetic Grease, 400 G |
| 63 |
570023800 |
Windshield Latch |
| 64 |
234062600 |
Flat Washer M6, Stainless |
| 65 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 66 |
219704353 |
Was 271000110 Protection Trim |
