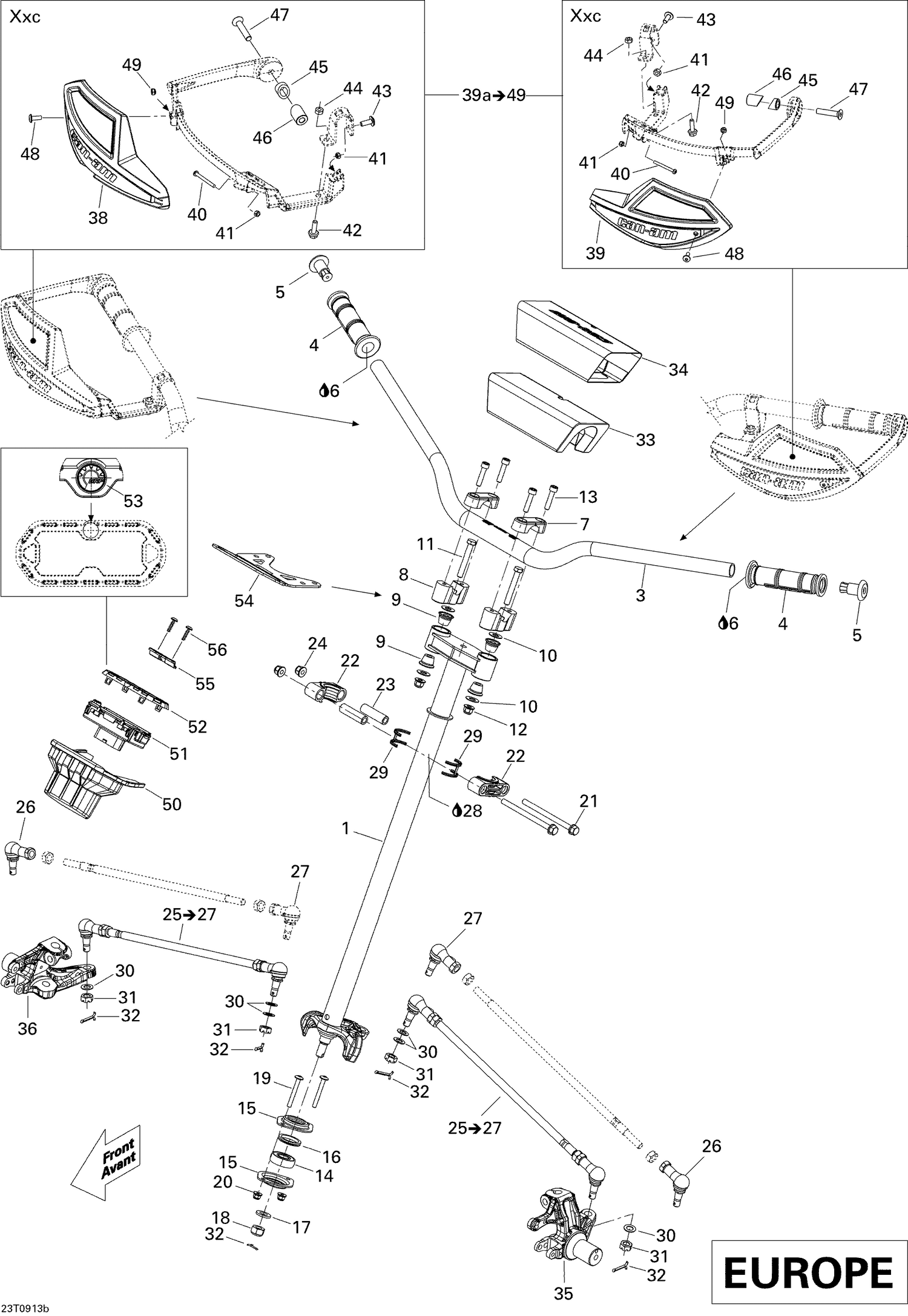

07- Steering Europe
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 709400668 | HANDLE BAR ALUMINUM - Call your local BRP dealership |
| 4 | 709400493 | Handle Grip |
| 6 | 293800100 | Loctite 406, 7 Oz |
| 7 | 709400496 | Support |
| 8 | 709400592 | ALUMINUM SUPPORT - Call your local BRP dealership |
| 9 | 293830131 | DAMPER BUSHING - Call your local BRP dealership |
| 10 | 506152194 | Washer |
| 11 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 12 | 232501416 | Elastic Flange Nut M10 |
| 13 | 205083534 | Socket Head Screw |
| 14 | 709400439 | Ball Bearing |
| 15 | 709400468 | THRUST WASHER - Call your local BRP dealership |
| 16 | 293250177 | Seal |
| 17 | 234021430 | Flat Washer |
| 18 | 250100090 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 19 | 250000317 | Torx Screw M6 X 50 |
| 20 | 233261434 | Flange Elastic Nut M6 |
| 21 | 230681034 | Hex. Flange Screw M8 X 110 |
| 22 | 709400471 | Half Bushing |
| 23 | 709400072 | BUSHING - Call your local BRP dealership |
| 24 | 233281434 | Hex. Flange Elastic Nut M8 |
| 26 | 715900053 | BALL JOINT - Call your local BRP dealership |
| 27 | 715900052 | BALL JOINT - Call your local BRP dealership |
| 28 | 293550010 | Synthetic Grease, 400 G |
| 29 | 293300120 | HALF-SEAL - Call your local BRP dealership |
| 30 | 250200084 | Flat Washer |
| 31 | 250100094 | CASTLE NUT - Call your local BRP dealership |
| 32 | 250400034 | Cotter Pin |
| 33 | 709400422 | Foam |
| 34 | 709400423 | Cover |
| 35 | 709400346 | LH KNUCKLE - Call your local BRP dealership |
| 36 | 709400348 | RH KNUCKLE - Call your local BRP dealership |
| 50 | 709400514 | Speedometer Cover |
| 51 | 710003288 | Calibrated Speedometer This part replaces 710001526. |
| 52 | 710001183 | Trim Ring Ass'y |
| 53 | 704904615 | BRP Logo13 mm This part replaces 704901270. |
| 54 | 709400671 | INDICATOR SUPPORT - Call your local BRP dealership |
| 55 | 709400573 | Latch Indicator Cover |
