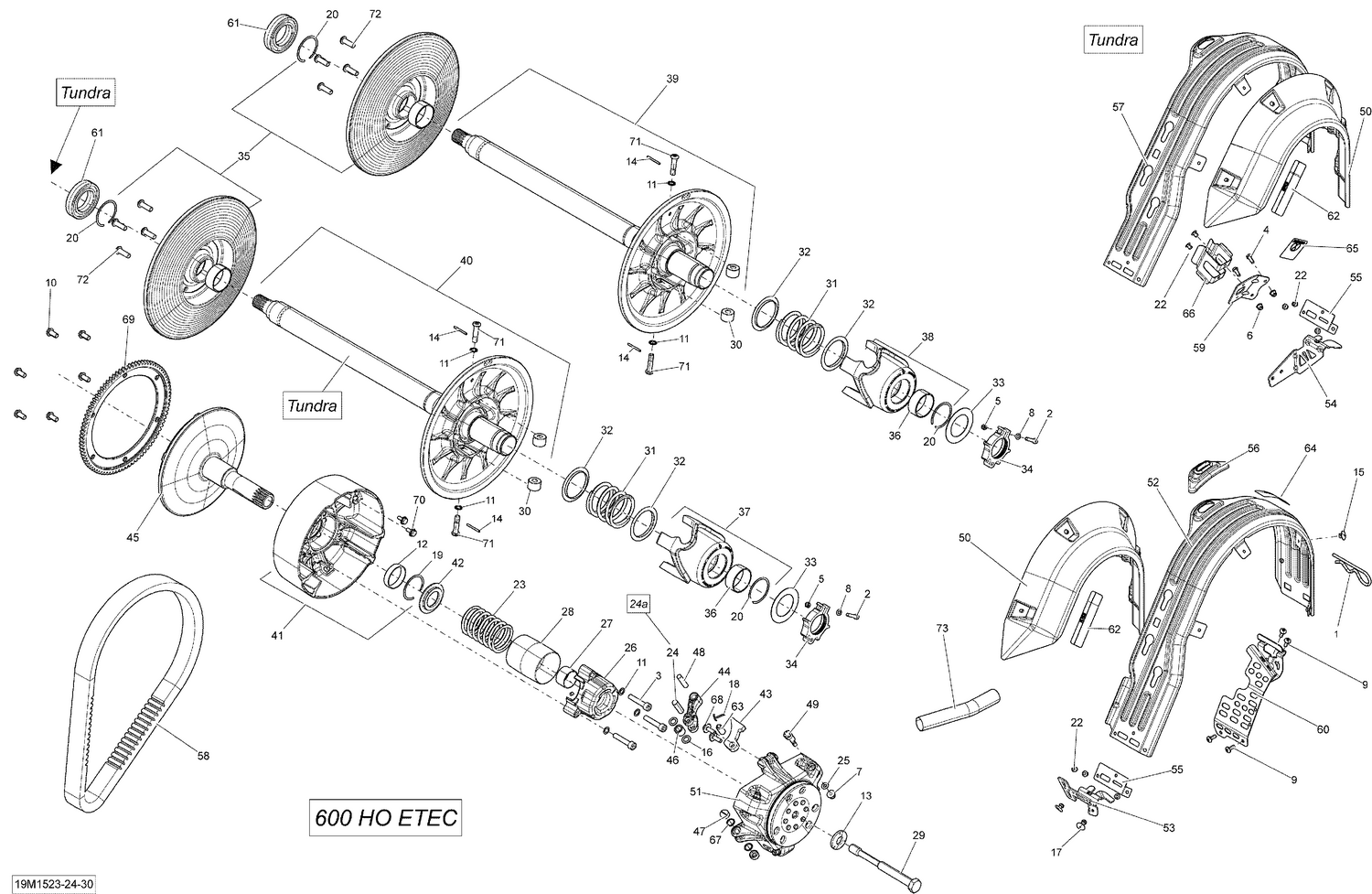

05- Pulley System _19M1523
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114045200 | Hair Pin |
| 2 | 205052544 | Socket Screw M5 X 25 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 4 | XXX | Not Available As Spare Parts |
| 5 | 232551414 | Elastic Stop Nut M5 |
| 6 | XXX | Not Available As Spare Parts |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 234051410 | Flat Washer M5 |
| 9 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 10 | 250000533 | Hex. Flange Screw M8 X 1.25 X 16 |
| 11 | 250200009 | Lock Washer 8 mm |
| 12 | 417222758 | Bushing |
| 13 | 250200144 | Conical Spring Washer M14 |
| 14 | 250400063 | Spring Pin M3 X 30 |
| 15 | 293150103 | Pop Rivet 3/16" |
| 16 | 417004302 | Stopper Washer |
| 17 | 293150104 | Pop Rivet 3/16" |
| 18 | 250400060 | Cotter Pin |
| 19 | 293370037 | Circlip |
| 20 | 293370049 | Circlip |
| 22 | 390909200 | Avex Rivet |
| 23 | 414689200 | Spring Clutch |
| 24 | 417004308 | Pin |
| 24a | XXX | Not Available As Spare Parts |
| 25 | 417005600 | Washer |
| 26 | 417007500 | Spring Cover Ass'y |
| 27 | 417009204 | Bushing |
| 28 | 417009205 | Guard |
| 29 | 417120000 | Drive Pulley Bolt |
| 30 | 417127016 | Pulley Roller |
| 31 | 417127137 | Green, Spring |
| 32 | 417127116 | Swivel Abutment |
| 33 | 417127155 | Washer |
| 34 | 415129604 | Calibration Ass'y |
| 35 | 417127317 | Sliding Flange Ass'y |
| 36 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 37 | XXX | Not Available As Spare Parts |
| 38 | 417127377 | Cam Ass'y |
| 39 | 417127387 | Fix Flange Ass'y |
| 40 | XXX | Not Available As Spare Parts |
| 41 | 417222181 | Sliding Flange Ass'y |
| 42 | 417222312 | Spring Seat |
| 43 | 417222546 | Ramp 414 |
| 44 | 417222671 | Lever |
| 45 | 417222937 | Fixed Flange Ass'y |
| 46 | 417222947 | Roller |
| 47 | 417222992 | Slider Shoe |
| 48 | 417223164 | Lever Axle |
| 49 | 417223501 | Calibration Screw |
| 50 | 417300356 | Side Protector |
| 51 | 417223669 | Governor Cup Ass'y |
| 52 | 417300357 | Belt Guard |
| 53 | 417300360 | FRONT BELT GUARD BRACKET - Call your local BRP dealership |
| 54 | XXX | Not Available As Spare Parts |
| 55 | 417300380 | Reinforcement |
| 56 | 417300381 | Guide |
| 57 | XXX | Not Available As Spare Parts |
| 58 | 417300551 | Drive Belt This part replaces 417300383. |
| 59 | XXX | Not Available As Spare Parts |
| 60 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership |
| 61 | 504152574 | Ball Bearing |
| 62 | 516005503 | Decal English |
| 63 | 250400050 | Spring Pin M10 X 22 |
| 64 | 516005509 | Safety Belt Guard Decal |
| 65 | XXX | Not Available As Spare Parts |
| 66 | XXX | Not Available As Spare Parts |
| 67 | 732401030 | O-Ring |
| 68 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip |
| 69 | 417225070 | Ring Gear_Starter This part replaces 417223738. |
| 70 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 71 | 417127294 | Pivot Stud |
| 72 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr This part replaces 250000707. |
