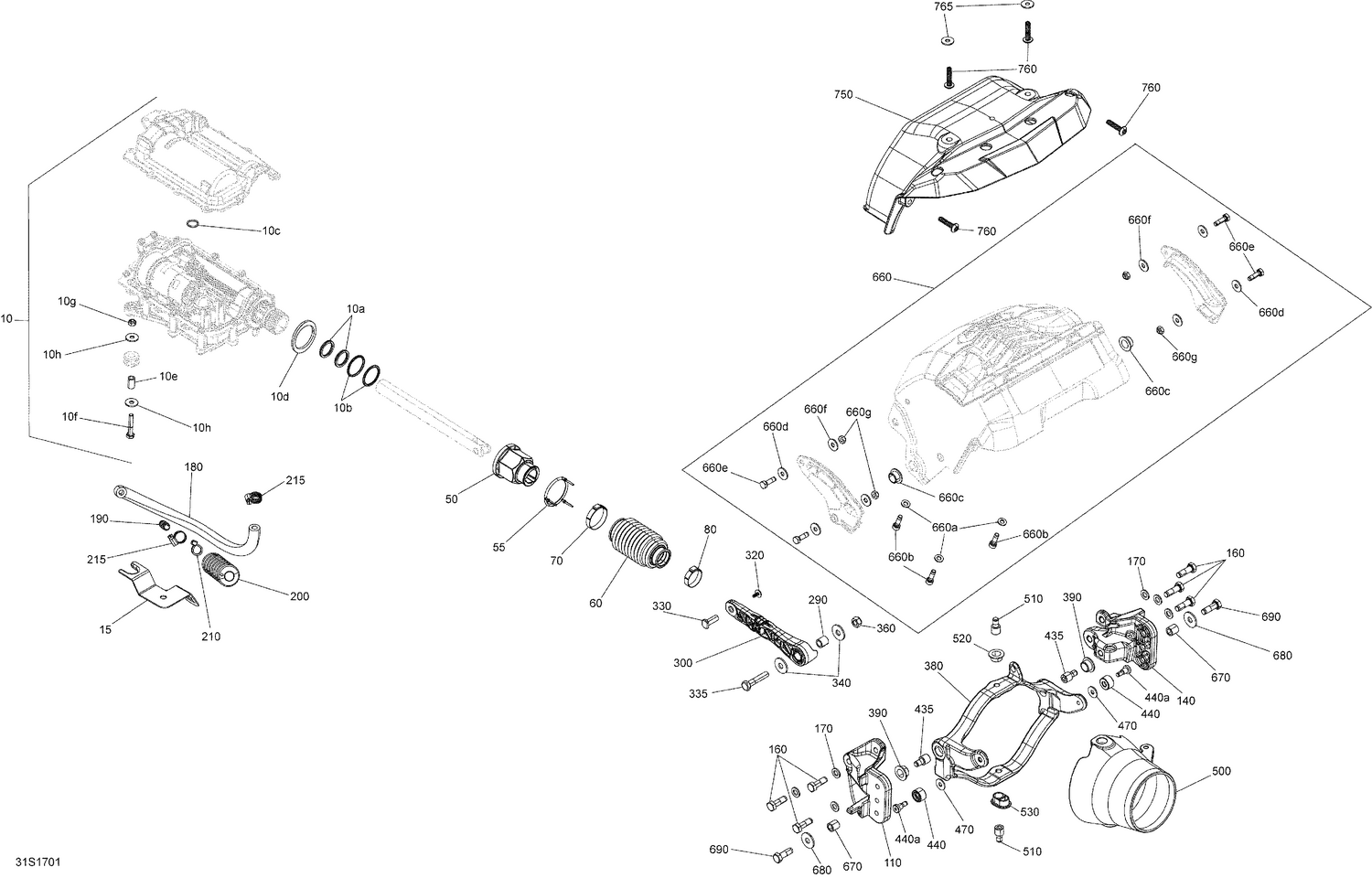

| Ref | Part Number | Description |
|---|
| 10a |
279000108 |
O-Ring |
| 10b |
293300107 |
O-Ring |
| 10c |
293300187 |
O-Ring |
| 10d |
268000208 |
Gasket |
| 10e |
271001020 |
Spacer |
| 10f |
207063560 |
Hex. Screw M6 X 35 |
| 10g |
232561200 |
Brass Elastic Stop Nut M6 |
| 10h |
234062600 |
Flat Washer M6, Stainless |
| 15 |
268000210 |
Actuator Support |
| 50 |
268000308 |
IBR Nut This part replaces 268000267. |
| 55 |
277001977 |
Rubber Gasket |
| 60 |
268000186 |
Boot |
| 70 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 80 |
293650099 |
Crimp Clamp |
| 110 |
268000163 |
LH Reverse Support |
| 140 |
268000166 |
RH Reverse Support |
| 160 |
207382560 |
Hex. Screw M8 X 25, Scotch Grip |
| 170 |
234080600 |
Flat Washer M8, Stainless |
| 180 |
219704420 |
Was 509000407 Hose 8 mm |
| 190 |
293710157 |
Fitting-Straig |
| 200 |
268000211 |
Inner Boot |
| 210 |
293750002 |
Tie Wrap 142 mm |
| 215 |
293650171 |
Tridon Gear Clamp |
| 290 |
271001039 |
Spacer |
| 300 |
268000187 |
Reverse Rod |
| 320 |
250000565 |
Hexalob Screw M4 X 10 |
| 330 |
268000309 |
Shoulder Pin This part replaces 268000207. |
| 335 |
207084060 |
Hex. Screw M8 X 40 |
| 340 |
234082600 |
Flat Washer 8 mm, Stainless |
| 360 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 380 |
268000179 |
Trimming Ring |
| 390 |
293900007 |
Venturi Bushing |
| 435 |
268000141 |
Socket Head Screw M8 X 13 |
| 440a |
250000775 |
Screw-Socket Shoulder M8X8 |
| 470 |
234062600 |
Flat Washer M6, Stainless |
| 500 |
267000705 |
Nozzle |
| 510 |
268000141 |
Socket Head Screw M8 X 13 |
| 520 |
293900007 |
Venturi Bushing |
| 530 |
293900010 |
Plastic Bushing |
| 660a |
234061600 |
Stainless Flat Washer M6 |
| 660b |
205562060 |
Socket Head Screw M6 X 20, Scotch Grip |
| 660c |
293900007 |
Venturi Bushing |
| 660d |
234062600 |
Flat Washer M6, Stainless |
| 660e |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 660f |
234062600 |
Flat Washer M6, Stainless |
| 660g |
232561200 |
Brass Elastic Stop Nut M6 |
| 670 |
271001039 |
Spacer |
| 680 |
234082600 |
Flat Washer 8 mm, Stainless |
| 690 |
207382560 |
Hex. Screw M8 X 25, Scotch Grip |
