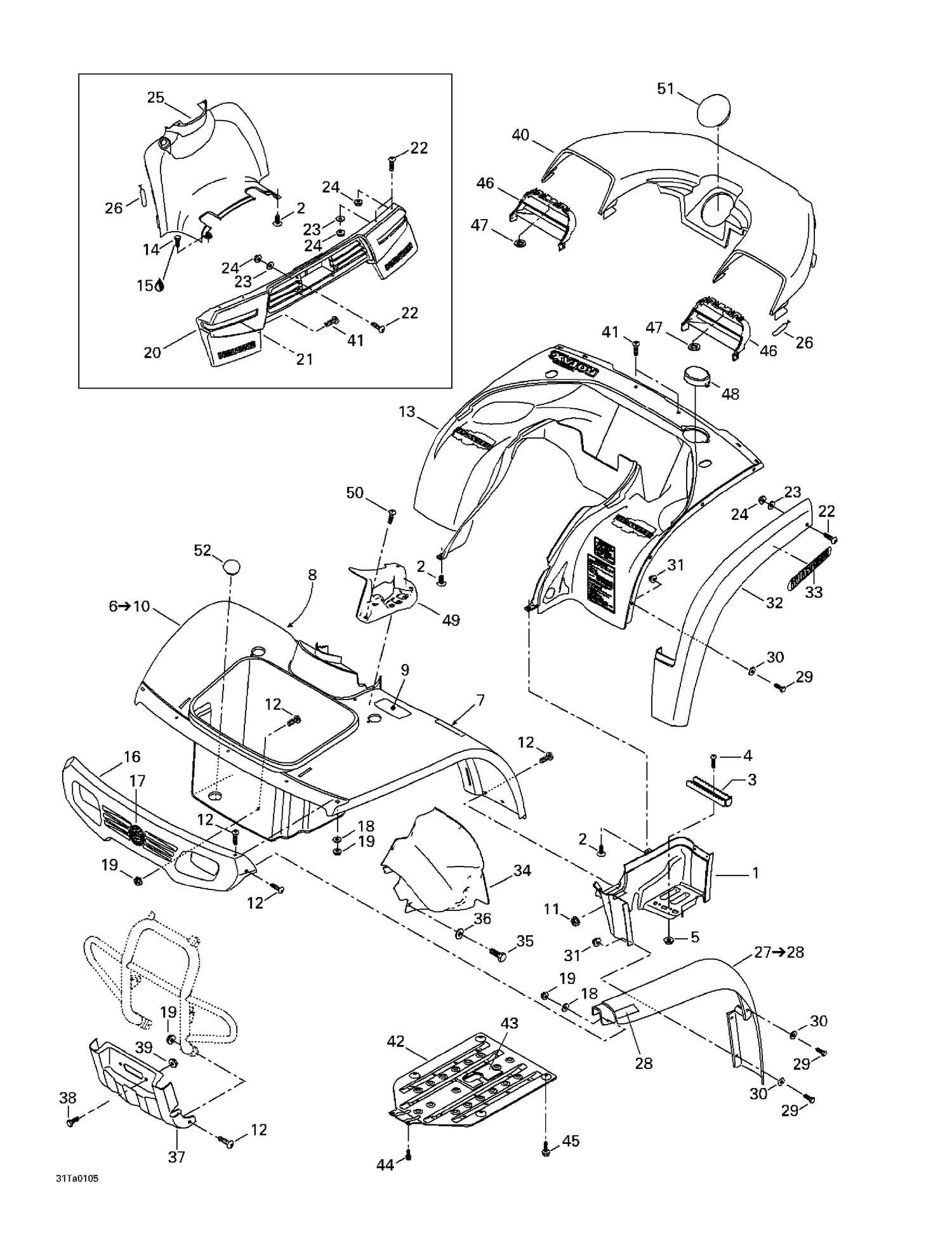

| Ref | Part Number | Description |
|---|
| 1 |
705000017 |
RH Footboard, Black |
| 2 |
293730011 |
Black, Dart |
| 3 |
705000279 |
Foot Pegs |
| 4 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 5 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
Not |
Available As Spare Part - Warning Label (Injuries/Death) |
| 8 |
Not |
Available As Spare Part - Warning Label (16 Years) |
| 9 |
704900434 |
Caution Decal, Lever And 4wd Switch This part replaces 704900007. |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 12 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 14 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 15 |
293800060 |
Loctite 243, 10 ml |
| 17 |
516008739 |
BRP Logo 68mm This part replaces 704900027. |
| 18 |
224060201 |
Flat Washer |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 21 |
704900085 |
RH Rear Reflector |
| 22 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 23 |
224060201 |
Flat Washer |
| 24 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 25 |
705000010 |
Tank Cover |
| 26 |
570023800 |
Windshield Latch |
| 28 |
705000083 |
LH FRONT REFLECTOR - Call your local BRP dealership |
| 29 |
207162044 |
Hex. Screw M6 X 20 |
| 30 |
224060201 |
Flat Washer |
| 31 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
704900026 |
Bombardier label |
| 34 |
705000133 |
LH TANK PROTECTOR - Call your local BRP dealership |
| 35 |
210661940 |
Screw Hex. M6.3 x 19 |
| 36 |
224060201 |
Flat Washer |
| 37 |
705000135 |
Front Protection Plate, black |
| 38 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 39 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 41 |
732600009 |
PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 43 |
293830084 |
Rubber Protector |
| 44 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 45 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 46 |
705000180 |
LH Grill, Black |
| 47 |
250100000 |
PUSH NUT - Call your local BRP dealership |
| 48 |
705000132 |
COVER, BLACK - Call your local BRP dealership |
| 49 |
705000081 |
Lever Indicator |
| 50 |
414745900 |
Tuflock Phillips Plastic Screw |
| 51 |
705000207 |
CAP - Call your local BRP dealership |
| 703500015 |
RH |
Front Mudguard Kit 703500015 |
| 703500017 |
Garde-Boue |
Arrière Droit 703500017 |
| 703500017 |
RH |
Rear Mudguard 703500017 |
| 704900086 |
Bande |
Réfléchissante Arrière GA 704900086 |
| 704900086 |
LH |
Rear Reflector 704900086 |
| 705000026 |
Bande |
Réflechissante Avant DR - Appelez votre concessionnaire BRP local 705000026 |
| 705000026 |
RH |
FRONT REFLECTOR - Call your local BRP dealership 705000026 |
| 705000134 |
Protecteur |
De Réservoir DR - Appelez votre concessionnaire BRP local 705000134 |
| 705000134 |
RH |
TANK PROTECTOR - Call your local BRP dealership 705000134 |
| 705000181 |
Louvre |
DR, Noir 705000181 |
| 705000181 |
RH |
Grill, Black 705000181 |
| 705000208 |
Foot |
Well LH 705000208 |
