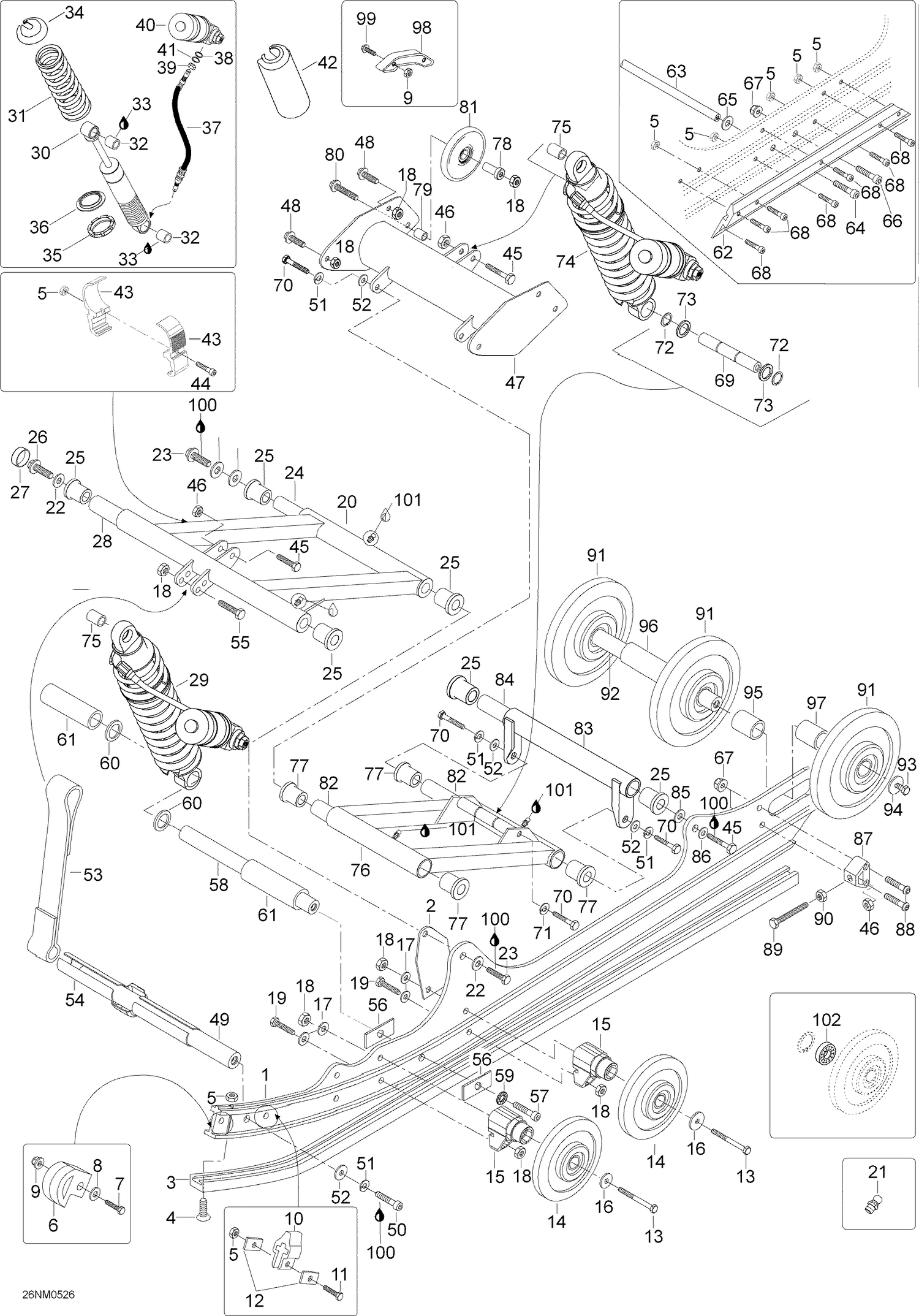

08- Rear Suspension

08- Rear Suspension

Parts (102)

RefPart NumberDescription
1 605250436 Runner
2 605452387 Support plate
3 605351309 Shoe
4 40059 Socket head screw M6 x 60
5 33010 Lock Nut M6 (1=10Pcs)
6 605348954 Runner protector
7 40031 Hex. screw M6 x 25
8 20003 Washer A6,4
9 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
10 5442328 STOPPER-RUBBER - Call your local BRP dealership
11 40032 Hex. screw M6 x 30
12 548470 Washer
13 40089 M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership
14 503191029 Support wheel, 135mm This part replaces 503190802.
15 605450182 SUPPORT - Call your local BRP dealership
16 503183100 Washer
17 234081410 Flat Washer 8 mm This part replaces 20104.
18 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
19 40037 Hex. screw M8 x 25
20 5145588 Front arm
21 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
22 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
23 40099 Hex. screw M12 x 45
24 605352730 Shaft
25 31024 Cushion
26 40243 Hex. screw M12 x 60
27 5448025 Cap
28 5346135 Shaft
30 23210 Shock, front arm
30 23211 Shock, rear arm
31 25056 Spring, rear arm
31 25073 Spring, front arm
32 31094 Cushion
33 320006 Loctite 641, 50ml
34 5346750 Spring stopper
35 230048 Cam
36 230049 Spring guide
37 230111 Hose, front arm shock
37 619300001 Hose, rear arm shock
38 230112 Washer
39 Not Available As Spare Part - Nut
40 619300002 Reservoir
41 619300003 O-ring
42 5346754 Shock protector
43 605352257 Bracket
44 40806 Socket head screw M6 x 50
45 40016 Hex. screw M10 x 45
46 33012 Elastic stop nut M10
47 605249846 Upper arm
48 40058 Locking screw M8 x 20
49 5343471 Shaft
50 40134 Screw Socket HD.DIN 912
51 20047 Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership
52 20105 Washer, hardened, 10mm
53 605449385 Stopper strap
54 605349381 Retainer for stopper strap - Call your local BRP dealership
55 207084544 Hex. Screw M8 X 45 This part replaces 40008.
56 605449294 Support Plate
57 40371 Socket head screw M12 x 55
58 605350691 Shaft
59 20074 Lock washer 12mm
60 31013 Shim Ring
61 605349896 Sleeve
62 605352384 Runner reinforcement
63 605449400 Shaft
64 40135 Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership
65 234081410 Flat Washer 8 mm This part replaces 20004.
66 40289 Socket head screw M8 x 25
67 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
68 40052 Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership
69 605451897 REARSHOCK SHAFT - Call your local BRP dealership
70 40014 Hex. screw M10 x 40
71 20068 Lock washer 10mm
72 293370056 Circlip 20X1.75 DIN471 This part replaces 31007.
73 31091 Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership
75 5446652 Bushing
76 605349313 Rear arm
77 31027 Cushion
78 5446700 Sleeve
79 5446701 Sleeve
80 40376 Locking screw M8 x 80
81 46027 Idler Wheel - Call your local BRP dealership
82 605352731 Shaft
83 5345535 Rear arm
84 605352732 Shaft
85 20116 Washer
86 512056700 Lock washer
87 5341633 Tensioner
88 40392 Socket head screw M8 x 45
89 40239 Hex. screw M10 x 100
90 232006414 Hex. Nut M10 This part replaces 33004.
91 503190799 Wheel 180 This part replaces 503190232.
92 5341511 Shaft
93 40050 Hex. screw M10 x 35
94 503183300 Aluslevy M10 hardened
95 5441512 Sleeve
96 5448027 Sleeve
97 5444099 Sleeve
98 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
99 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
100 293800005 Loctite 271, 10ml
101 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
