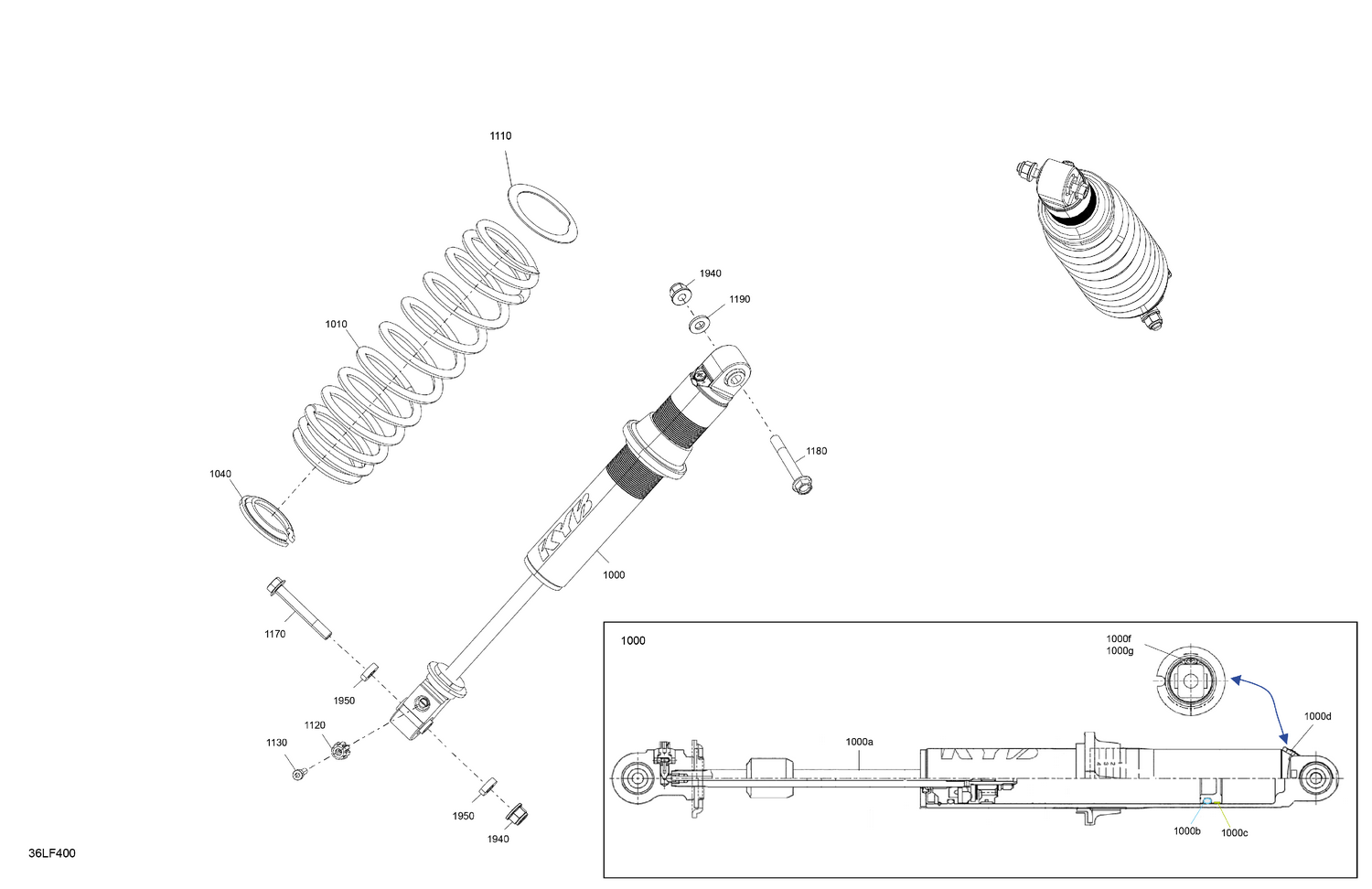

05- Suspension - Front Shocks
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1000a | 619300225 | Rod sub ass'y |
| 1000b | 414888312 | O-Ring |
| 1000c | 503189308 | Piston Ring |
| 1000d | 505070398 | Air Valve |
| 1000f | 505070399 | Screw |
| 1000g | 505070400 | O-Ring |
| 1010 | 505074423 | Black, Spring 280 MM 20 N/MM |
| 1040 | 503194270 | Spring Stopper |
| 1110 | 505073150 | Washer |
| 1120 | 505072753 | Adjustment Knob |
| 1130 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1170 | 250000824 | Hexagonal Flange Screw M8 X 58 |
| 1180 | 250000824 | Hexagonal Flange Screw M8 X 58 |
| 1190 | 503192494 | Washer |
| 1940 | 233281466 | Elastic Flang Nut M8 |
