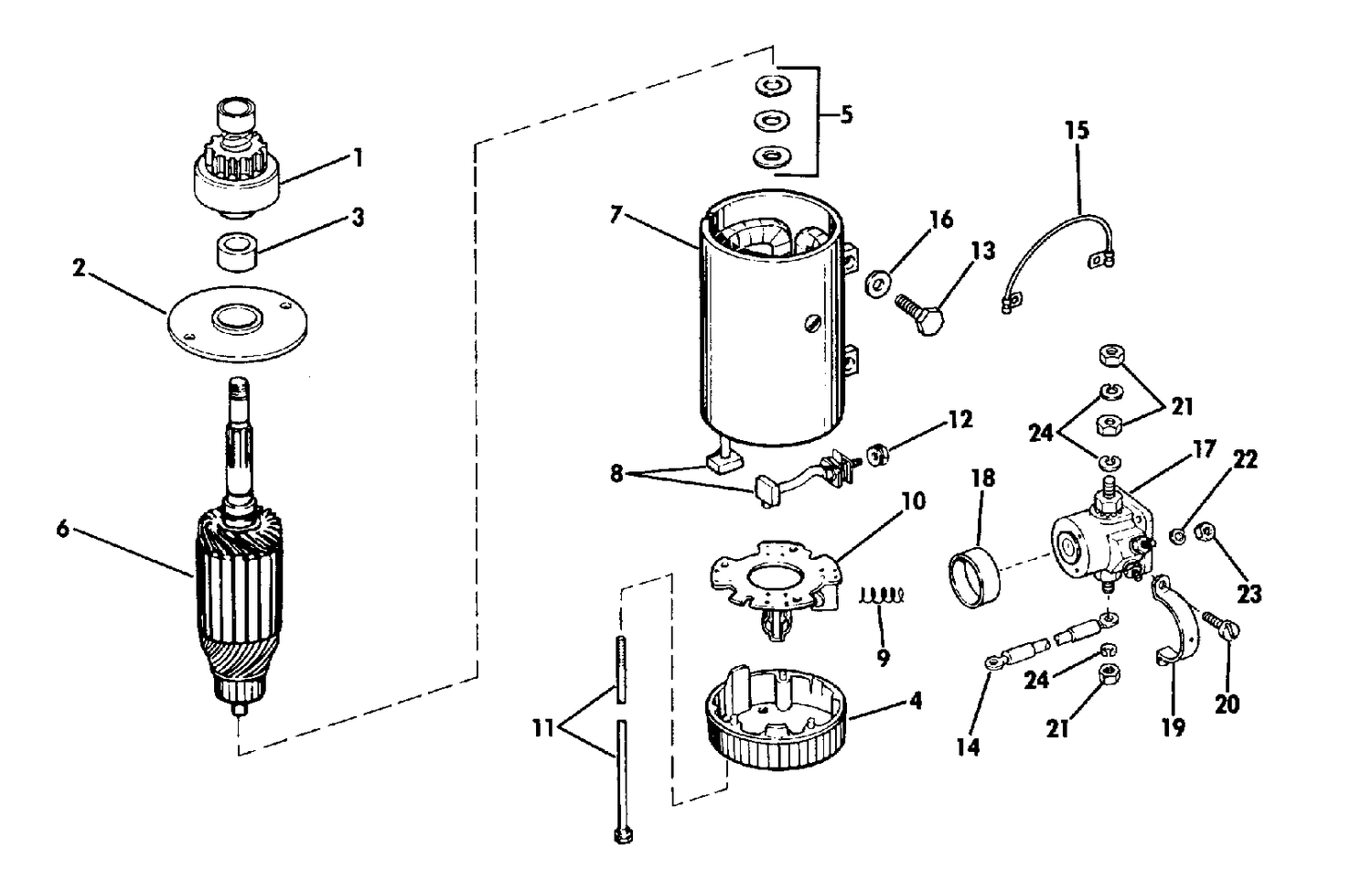

| Ref | Part Number | Description |
|---|
| 1 |
0391047 |
DRIVE ASSY |
| 1 |
0391744 |
DRIVE ASSY. |
| 2 |
0385059 |
HEAD ASSY, Drive end |
| 2 |
0391748 |
HEAD ASSY, Drive end |
| 4 |
0390106 |
HEAD ASSY, Commutator |
| 4 |
0391747 |
HEAD ASSY, Commutator, (includes 8 & 10) |
| 5 |
0384306 |
THRUSH WASHER PKG. |
| 5 |
0391658 |
THRUST WASHER PKG |
| 6 |
0318902 |
ARMATURE |
| 6 |
0391743 |
ARMATURE |
| 7 |
0391087 |
FRAME & FIELD COIL ASSY |
| 8 |
0391750 |
BRUSH SET, (included in item 4) |
| 9 |
0383891 |
SPRING SET |
| 9 |
0391749 |
SPRING SET, Brush |
| 10 |
0327097 |
PLATE ASSY., Brush |
| 10 |
0379967 |
BRUSH PLATE & HOLDER |
| 11 |
0391751 |
THRU BOLT ASSY. |
| 13 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 13 |
0306423 |
BOLT |
| 14 |
0385806 |
LEAD, Starter to solenoid |
| 15 |
0580733 |
FIL, masse solénoïde |
| 18 |
0311217 |
MANCHON, solénoïde |
| 19 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 0387735 |
0387735 |
DAMPER PAD REPAIR KIT |
| 0391746 |
0387735 |
DAMPER PAD REPAIR KIT This part replaces 0391746. |
