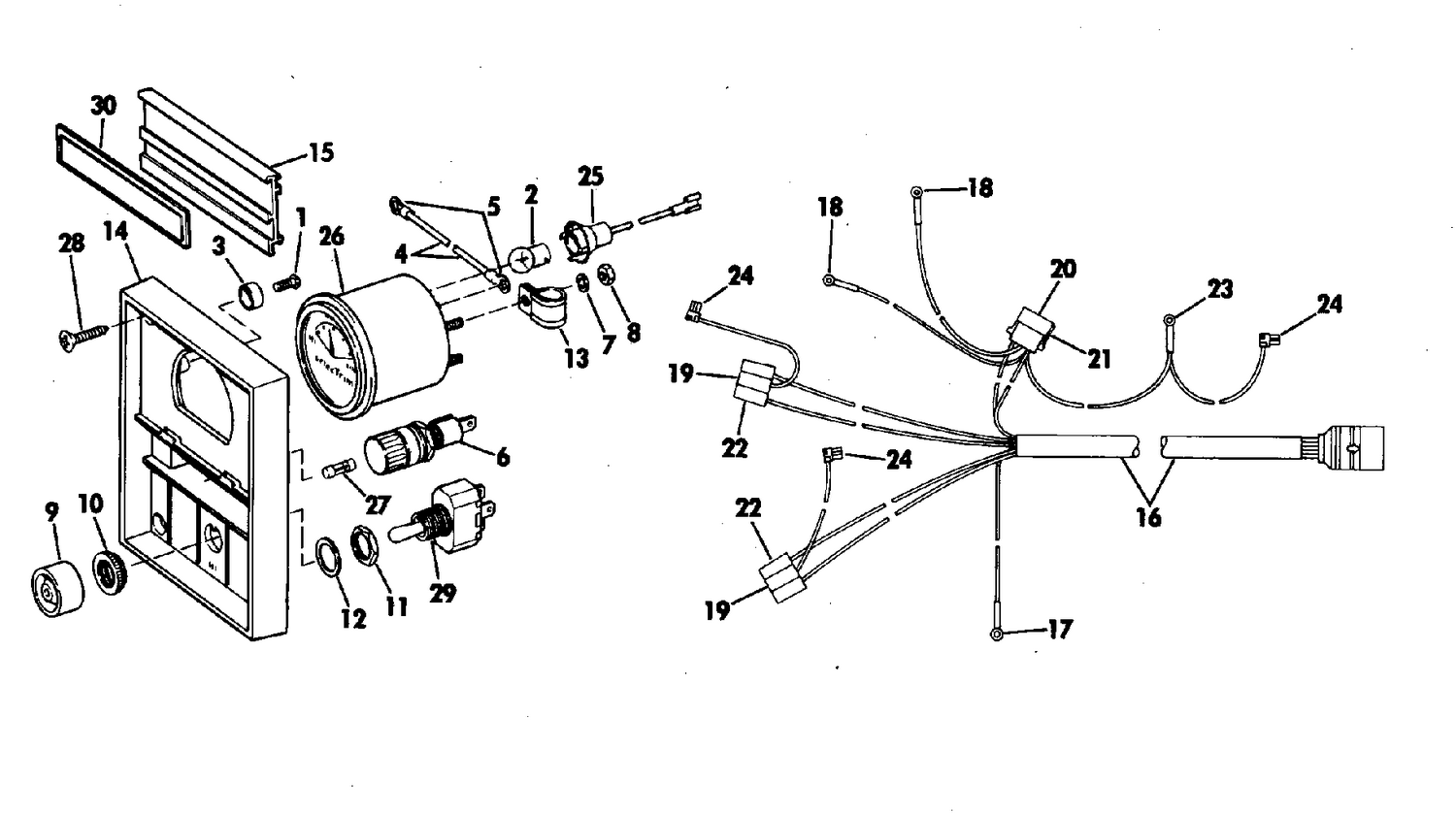

PANEL & CABLE GROUP 120, 140 & 165 HP WITH SELECTRIM
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0121354 | MOUNTING SCREW, Instrument |
| 3 | 0122294 | WASHER |
| 4 | 0172149 | LEAD ASSEMBLY |
| 6 | 0172410 | FUSE HOLDE ASSEMBLY |
| 12 | 0900696 | WASHER |
| 13 | 0901463 | CLAMP |
| 14 | 0980030 | DASH PANEL & BASE ASSY |
| 15 | 0907977 | FUSE COVE, Front |
| 16 | 0979784 | CABLE ASSEMBLY |
| 21 | 0311740 | CONNECTOR |
| 25 | 0979812 | SOCKET & LEAD ASSY |
| 26 | 0979813 | GAUGE ASSEMBLY |
| 28 | 0122295 | SCREW |
