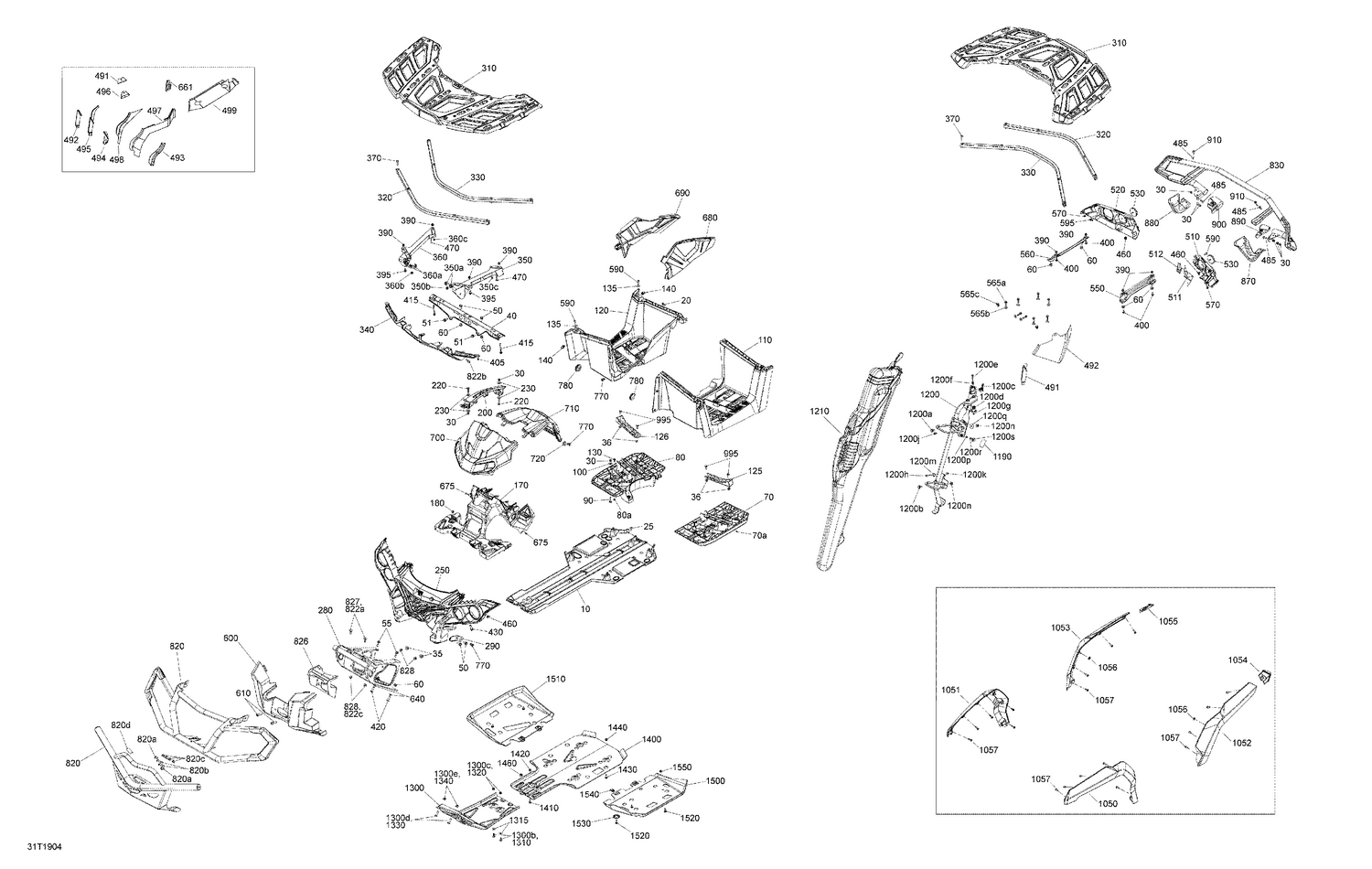

09- Body And Accessories - 1000R - Except XMR
Parts (83)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 35 | 233201434 | Hex. Flange Elastic Nut M10 |
| 40 | 705006812 | Cargo Rack Center Support |
| 50 | 207682044 | Hex. Flange Screw M8 X 20 |
| 51 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 55 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 70a | 232862412 | Square Nut M6 |
| 80a | 232862412 | Square Nut M6 |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705007040 | LH Step |
| 120 | 705007039 | RH Step |
| 130 | 207661654 | Hex. Flange Screw M6 X 16 |
| 135 | 224061201 | Flat Washer |
| 140 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 170 | 715006101 | Console Support Ass'y This part replaces 715002245. |
| 180 | 293830005 | Rubber Bumper |
| 220 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 230 | 224061201 | Flat Washer |
| 250 | 705012822 | Fascia |
| 280 | 705016893 | Front Bumper Support This part replaces 705009253. |
| 290 | 705004565 | Lower Fender Support |
| 310 | 715001852 | Luggage Rack Kit |
| 320 | 705016640 | Sectional Bent Tube This part replaces 705005469. |
| 330 | 705016092 | Bent Sectional Tube This part replaces 705005470. |
| 340 | 705004523 | Lugage Rack Moulding |
| 350b | 232581200 | Hex. Elastic Nut M8 Brass |
| 350c | 232561600 | Hex. Elastic Stop Nut M6 |
| 360b | 232581200 | Hex. Elastic Nut M8 Brass |
| 360c | 232561600 | Hex. Elastic Stop Nut M6 |
| 370 | 250000646 | Black, Torx Screw M6 X 35 |
| 390 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 395 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 400 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 405 | 241140060 | Screw K40 X 10 |
| 415 | 207567044 | Hex. Flange Screw M6x70, Scotch Grip |
| 420 | 250000886 | Torx Screw M8 X 30 |
| 430 | 207683534 | Hex. Flange Screw M8 X 35 |
| 460 | 517302785 | Edge Clip |
| 470 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 491 | 707002456 | Heat Shield |
| 492 | 707002457 | Heat Shield |
| 493 | 707002458 | Heat Shield |
| 494 | 707002459 | Heat Shield |
| 495 | 707002460 | Heat Shield |
| 496 | 707002461 | Heat Shield |
| 497 | 707002462 | Heat Shield |
| 498 | 707002583 | Heat Shield |
| 499 | 707002464 | Heat Shield |
| 510 | 705006643 | LH Rear Facia |
| 511 | 707002103 | Heat Shield |
| 512 | 707002107 | Heat Shield |
| 513 | 707002293 | Heat Shield |
| 520 | 705006650 | RH Rear Facia |
| 530 | 705011221 | Red Reflector |
| 550 | 705007277 | LH Support |
| 560 | 705007278 | RH Support |
| 565a | 250000841 | Hex Flange Screw M6 X 25 |
| 565b | 234062670 | Stainless Steel Flat Washer |
| 565c | 293150230 | Tuflok Plastic Rivet |
| 570 | 732610072 | Push Nut |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 595 | 207661654 | Hex. Flange Screw M6 X 16 |
| 600 | 705006299 | Front Guard Plate |
| 640 | 705004497 | Ring |
| 661 | 707002467 | Heat Shield |
| 675 | 250000723 | Phillips Screw K40 X 16 |
| 680 | 715007008 | Deflector_Body Panel Kit This part replaces 705004147. |
| 690 | 705003444 | Engine Cover |
| 710 | 715006098 | Dash Kit This part replaces 715001765. |
| 720 | 705003264 | Grommet |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 780 | 293250242 | Rubber Cover |
| 1050 | 705003914 | LH Front Mudguard |
| 1051 | 705003915 | RH Front Mudguard |
| 1052 | 705003918 | LH Rear Mudguard |
| 1053 | 705003920 | RH Rear Mudguard |
| 1054 | 705004888 | LH Mudgard Cap |
| 1055 | 705004889 | RH Mudgard Cap |
| 1056 | 732610072 | Push Nut |
| 1057 | 250001072 | Self Tapping Screw 8 X 5/8 |
