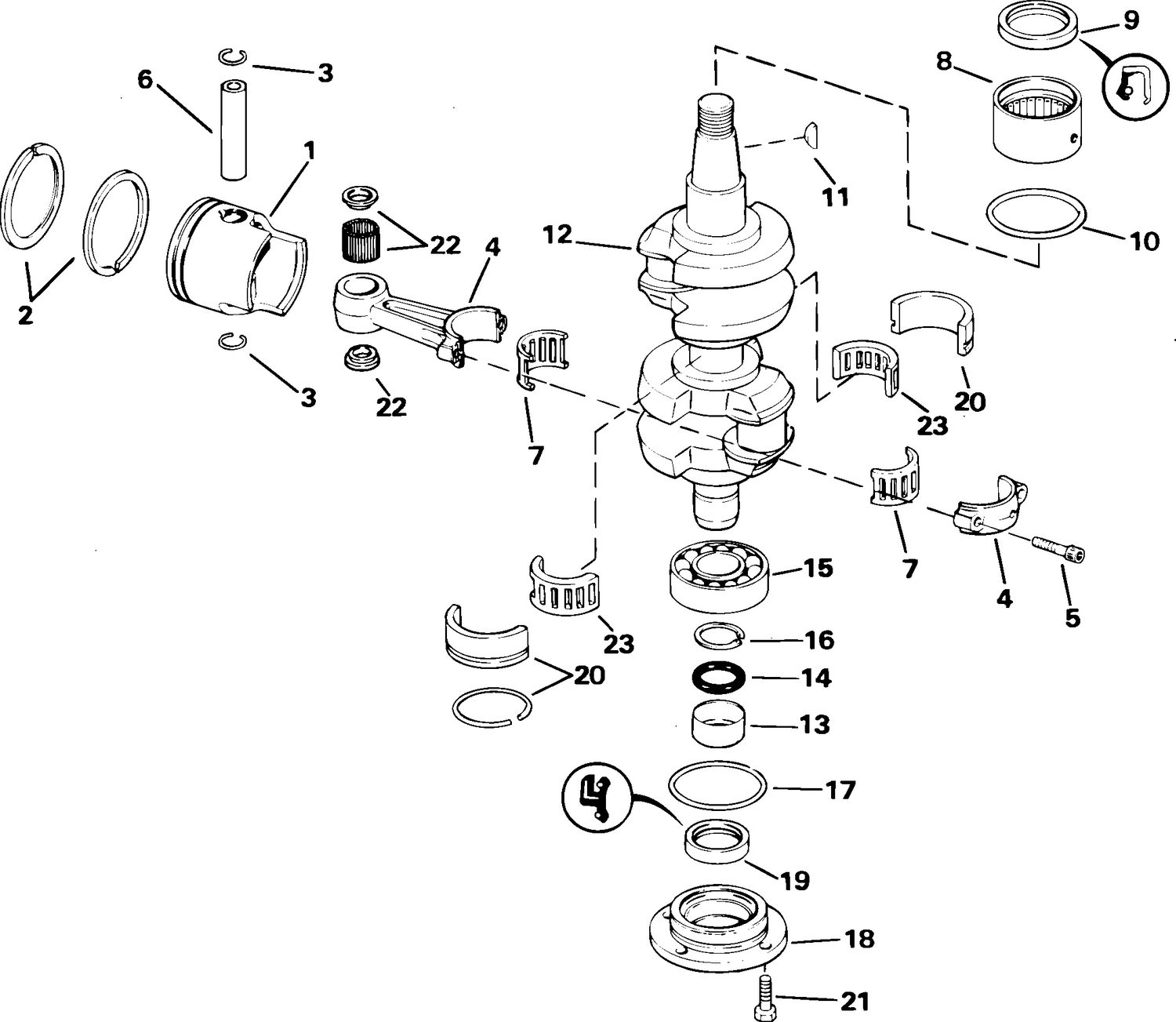

CRANKSHAFT & PISTONS
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0435546 | PISTON & PIN ASSY., Standard |
| 1 | 5006689 | Piston & Ring Kit This part replaces 0436734. |
| 2 | 0436731 | JEU DE SEGMENTS, standard |
| 4 | 0395861 | CONNECTING ROD |
| 6 | 0322188 | WRIST PIN |
| 7 | 0437088 | BEARING Assy |
| 8 | 0398529 | BEARING & SEAL ASSY., Crankshaft |
| 10 | 0313754 | O RING |
| 11 | 0120395 | KEY |
| 12 | 0439939 | CRANKSHAFT |
| 17 | 0308876 | O RING CRANKCASE HEAD LOWER |
| 18 | 0439210 | CRANKCASE HEAD Assy |
| 20 | 0310433 | SLEEVE |
| 21 | 0553556 | SCREW, Housing to cylinder |
| 22 | 0395627 | BEARING & RETAINER |
