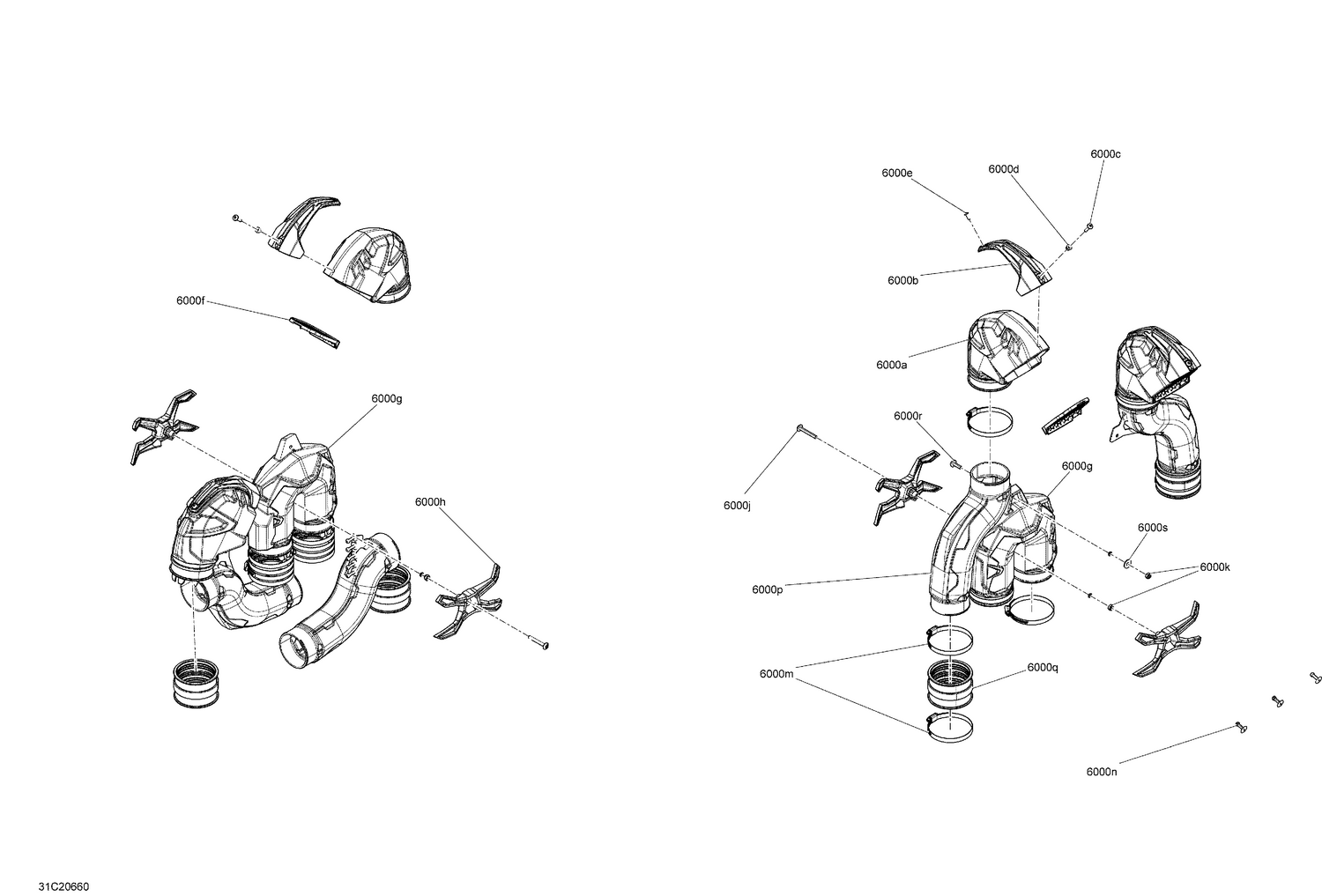

09- Body - Air Intake - XMR
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 6000a | 706600236 | Air Inlet |
| 6000b | 707001523 | Black, Cap |
| 6000b | 707001630 | Manta Green - Cap |
| 6000c | 250000792 | Torx Screw M5 X 20 |
| 6000d | 233251494 | Elastic Flange Nut M5 |
| 6000e | 250000577 | Torx Truss Screw K40 X 12 |
| 6000f | 706600221 | Grate |
| 6000g | 706600205 | CVT Outlet |
| 6000h | 705012555 | Trim |
| 6000j | 250000647 | Torx Screw M6 X 45 |
| 6000k | 232561494 | Elastic Stop Nut M6 |
| 6000m | 293650272 | Clamp |
| 6000n | 293150101 | Pop Rivet 3/16” This part replaces 293150101. |
| 6000p | 706600277 | Intake Tube |
| 6000q | 706600278 | Flexible Joint |
| 6000r | 250000712 | Torx Screw M6 X 20 |
