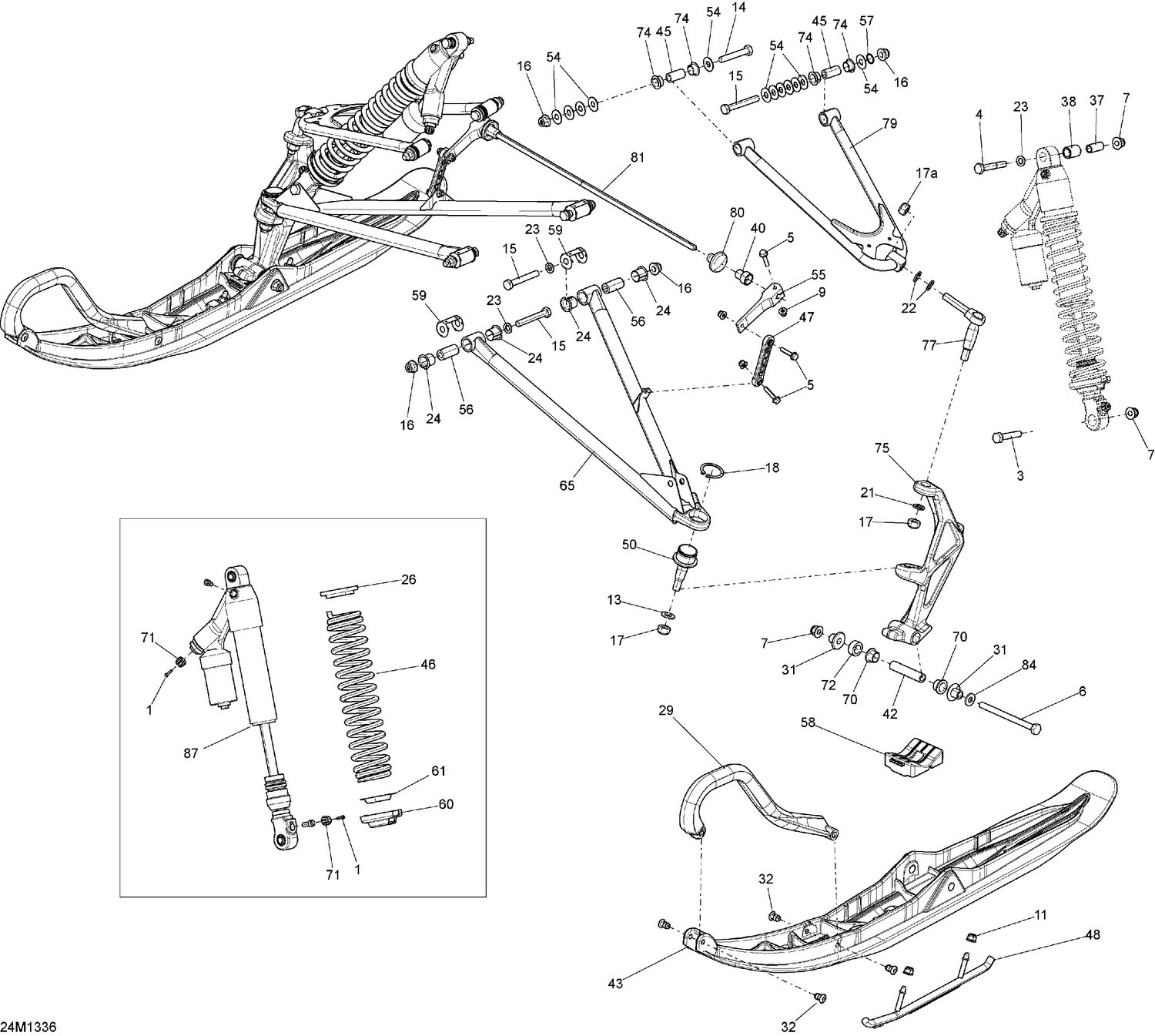

07- Front Suspension And Ski
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 3 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 4 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 5 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 6 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003054. |
| 7 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 9 | 233261466 | Hex. Flange Elastic Nut M6 |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 13 | 503192491 | Washer |
| 14 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 15 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 16 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100088. |
| 17 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 17a | 250100089 | Hex. Elastic Hex. Nut M12 |
| 18 | 293370035 | Circlip |
| 21 | 503189276 | Washer |
| 22 | 503189276 | Washer |
| 23 | 503189564 | Washer |
| 24 | 503191766 | Cushion |
| 29 | 505073138 | Black Handle |
| 31 | 505071781 | Ski Bushing |
| 32 | 505071812 | Retainer 17mm long |
| 32b | 505072133 | Retainer 23mm Long |
| 40 | 505072064 | Bushing |
| 42 | 506133300 | Spacer |
| 43 | 505072205 | Black Pilot Ski 5.7X |
| 45 | 505072143 | Sleeve |
| 46 | 505073272 | BRONZE SPRING - Call your local BRP dealership |
| 47 | 505072204 | Sway Bar Double Joint Link |
| 48 | 860201043 | Round Carbide Runner This part replaces 860200031. |
| 50 | 505073636 | Ball Joint This part replaces 505072682. |
| 54 | 505072392 | Washer |
| 55 | 505072394 | Stabilisator Lever |
| 56 | 505072401 | Aluminum Bushing |
| 57 | 505072448 | O-Ring |
| 58 | 505072594 | Ski Stopper |
| 59 | 505072634 | Wear Plate |
| 60 | 505072635 | Spring Stopper |
| 61 | 706200793 | Cap |
| 65 | 505072654 | RH LOWER ARM - Call your local BRP dealership |
| 65 | 505072655 | LH LOWER ARM - Call your local BRP dealership |
| 70 | 505072690 | Leg Bushing |
| 71 | 505072753 | Adjustment Knob |
| 72 | 505072807 | Spacer |
| 74 | 505073018 | Bushing |
| 75 | 505073273 | BRONZE LH SKI LEG - Call your local BRP dealership |
| 75 | 505073274 | BRONZERH SKI LEG - Call your local BRP dealership |
| 77 | 505073316 | Upper Ball Joint |
| 79 | 505073322 | LH Upper Arm |
| 79 | 505073323 | RH UPPER ARM - Call your local BRP dealership |
| 80 | 572091300 | Cap |
| 81 | 505072602 | Stabilisator |
| 84 | 503192496 | Washer |
| 87b | Not | Available As Spare Part - Free Piston |
| 87c | 415093807 | O-Ring |
| 87d | 415093806 | Piston Ring |
| 87e | 505070398 | Air Valve |
| 87f | 505070399 | Screw |
| 87g | 505070400 | O-Ring |
