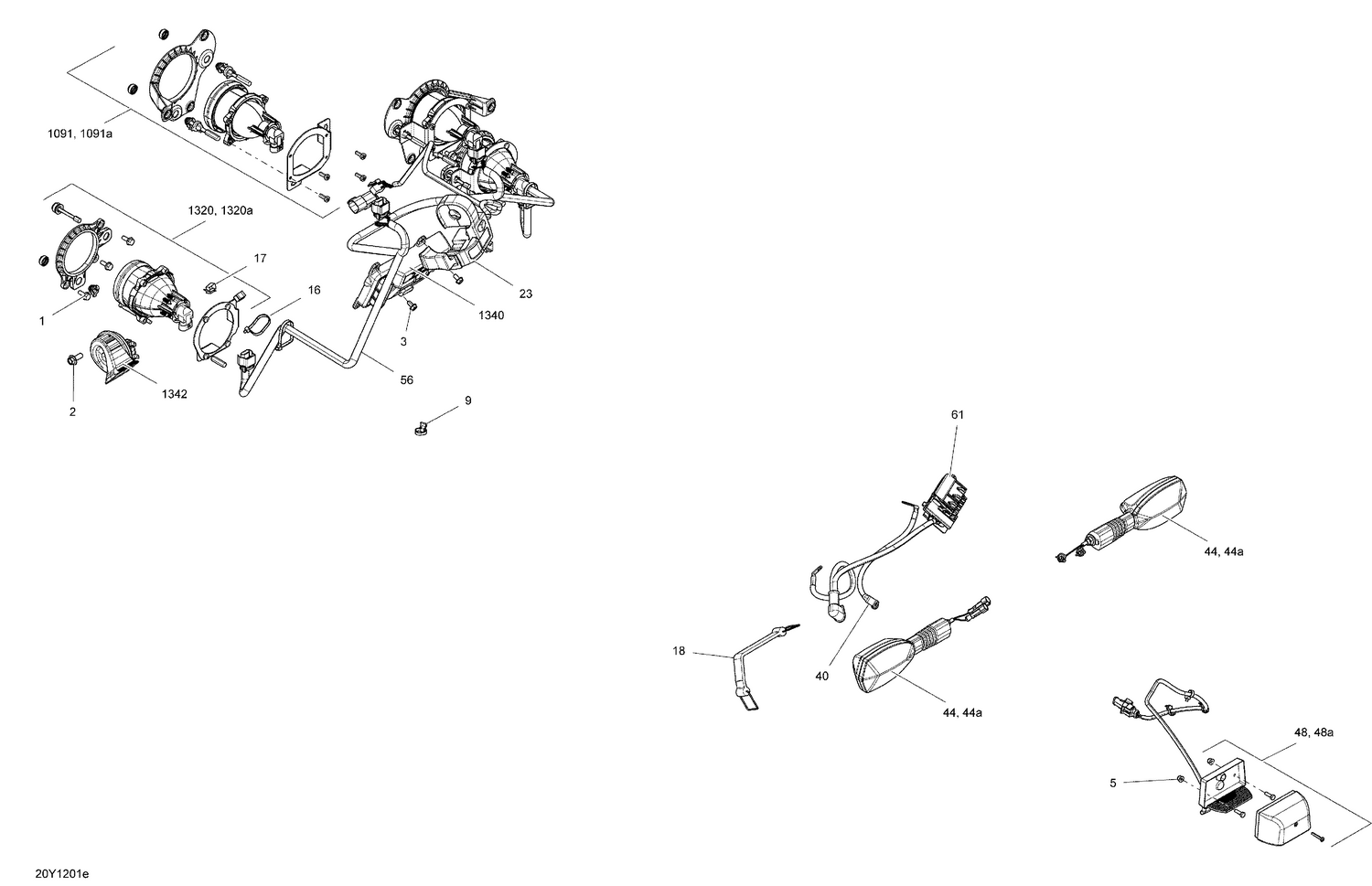

| Ref | Part Number | Description |
|---|
| 1 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 3 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 5 |
233251494 |
Elastic Flange Nut M5 |
| 9 |
293750009 |
Tie-Rap 173 mm |
| 16 |
414115200 |
Tie-Rap 180 mm |
| 17 |
414227300 |
Clip |
| 18 |
515176044 |
Battery Strap |
| 23 |
515176198 |
SE5 Switch Housing |
| 40 |
710000830 |
Battery/Frame Ground Cable Ass'y |
| 44 |
710007006 |
Amber, Rear Turn Signal This part replaces 710000707. |
| 44a |
715900043 |
Bulb 12V 21W |
| 48 |
710001993 |
LICENCE LIGHT - Call your local BRP dealership |
| 56 |
710000793 |
BEAM HARNESS ASS'Y - Call your local BRP dealership |
| 61 |
710002079 |
POSITIVE CABLE (BAT/SOL/FUS) - Call your local BRP dealership |
| 1091 |
710002499 |
RH HIGH BEAM ASS'Y - Call your local BRP dealership |
| 1091 |
710002500 |
LH HIGH BEAM ASS'Y - Call your local BRP dealership |
| 1091a |
415129249 |
Halogen Bulb |
| 1320 |
710002497 |
RH LOW BEAM ASS'Y - Call your local BRP dealership |
| 1320 |
710002498 |
LH LOW BEAM ASS'Y - Call your local BRP dealership |
| 1320a |
415129249 |
Halogen Bulb |
| 1340 |
710001946 |
TCM MODULE - Call your local BRP dealership |
| 1342 |
710004229 |
HORN - Call your local BRP dealership This part replaces 710002318. |
