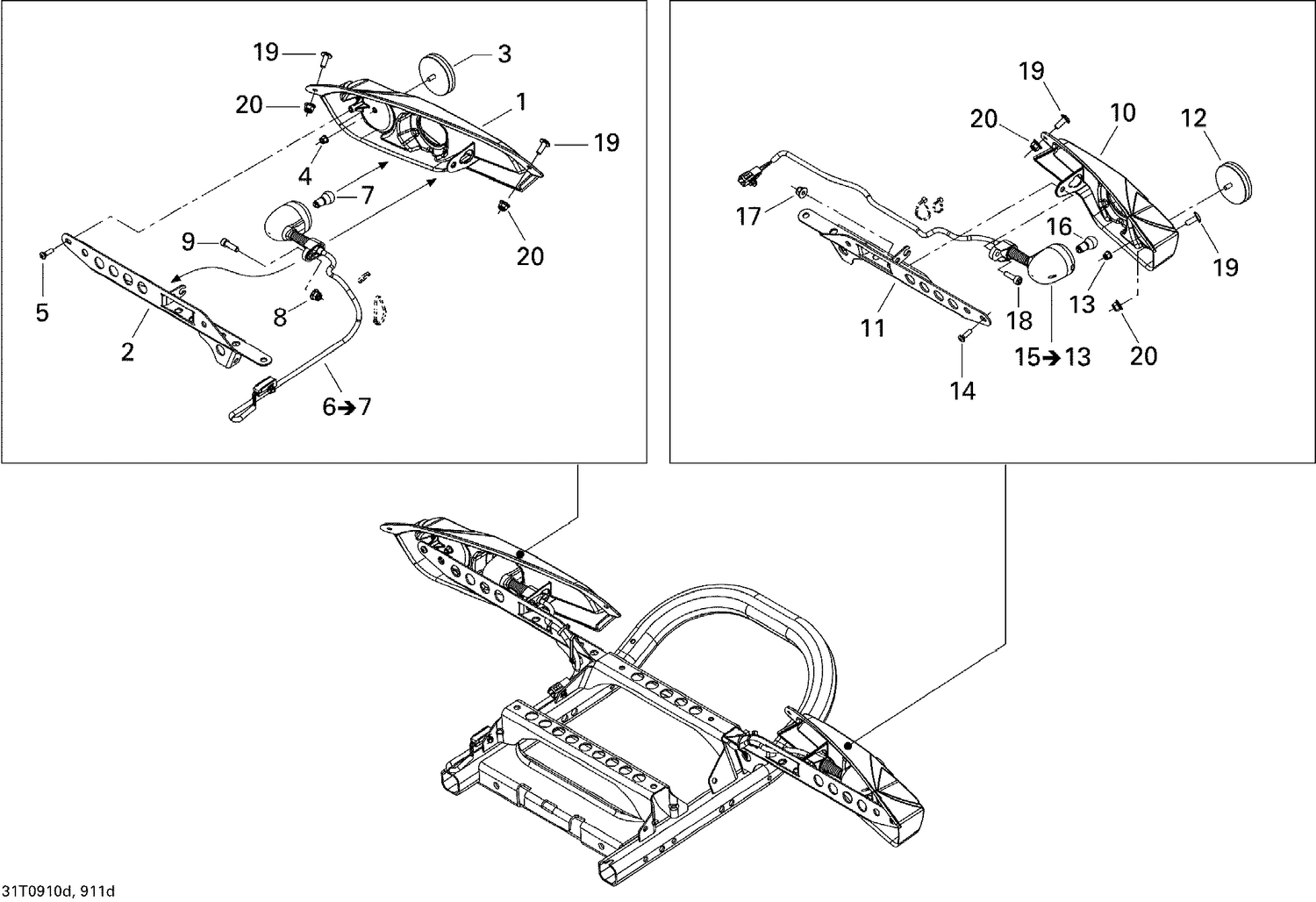

| Ref | Part Number | Description |
|---|
| 1 |
705002265 |
RH REAR FACIA - Call your local BRP dealership |
| 2 |
705002431 |
RH Rear Facia Support |
| 3 |
705011221 |
Red Reflector This part replaces 705002408. |
| 4 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 5 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 6 |
710001079 |
FLASHING LIGHT ASS'Y - Call your local BRP dealership |
| 7 |
205062044 |
Socket Head Screw M6 X 20 |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 9 |
415129258 |
BULB - Call your local BRP dealership |
| 10 |
705002266 |
LH REAR FACIA - Call your local BRP dealership |
| 11 |
705002432 |
LH REAR FACIA SUPPORT - Call your local BRP dealership |
| 12 |
705011221 |
Red Reflector This part replaces 705002408. |
| 13 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 14 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 15 |
710001080 |
FLASHING LIGHT ASS'Y - Call your local BRP dealership |
| 16 |
205062044 |
Socket Head Screw M6 X 20 |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
415129258 |
BULB - Call your local BRP dealership |
| 19 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
