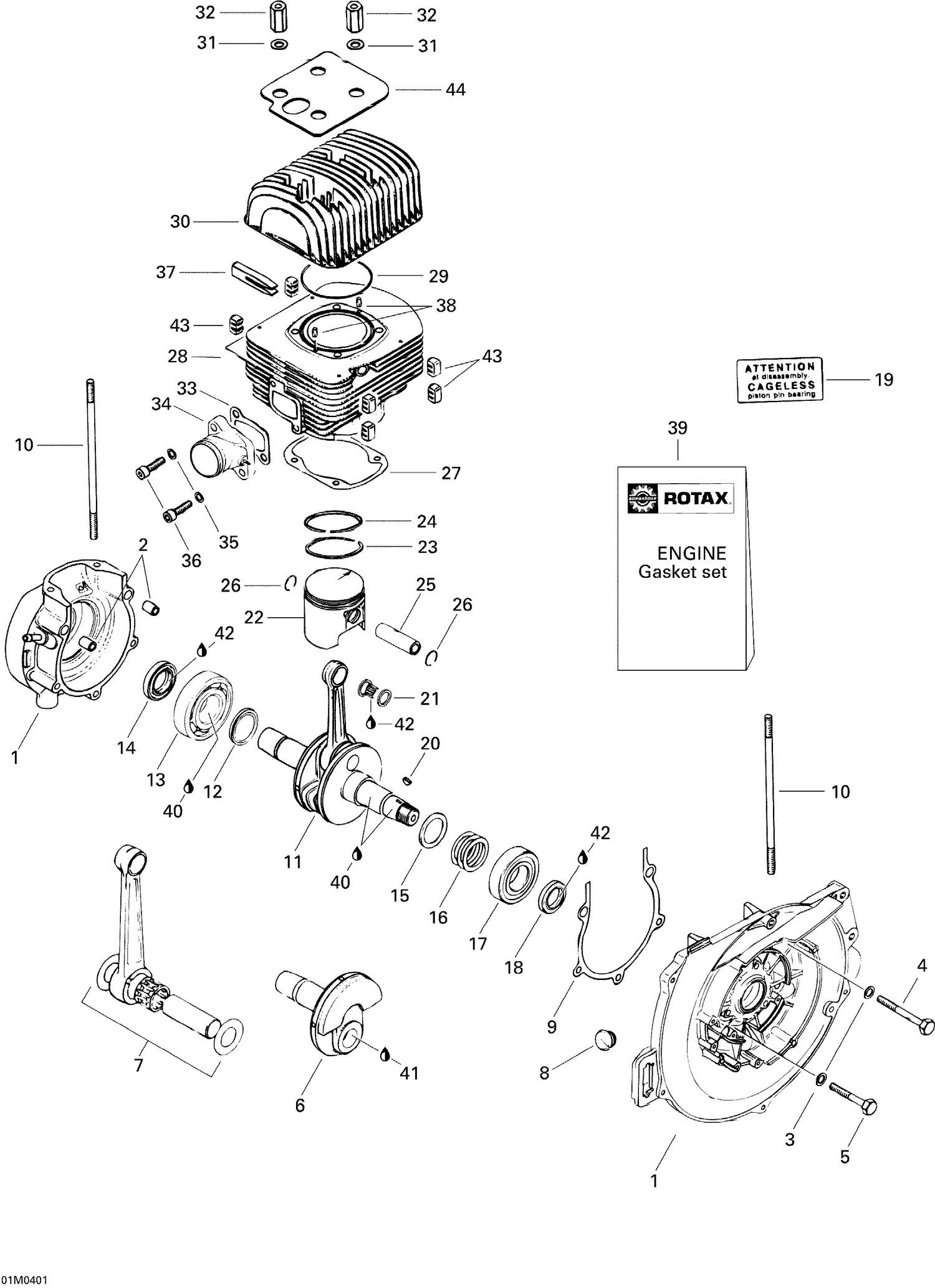

01- Crankcase And Cylinder

01- Crankcase And Cylinder

Parts (50)

RefPart NumberDescription
2 420229150 DOWEL - Call your local BRP dealership
3 420945832 Washer-Lock Din.128 This part replaces 420945752.
4 207087544 HEX. SCREW M8 X 75 - Call your local BRP dealership
5 207085596 HEX. SCREW M8 X 55 - Call your local BRP dealership
6 420919951 PTO CRANKSHAFT - Call your local BRP dealership
7 Not Available As Spare Part - Rod Repair Kit
8 420860962 Cable Grommet
9 420850060 GASKET CRANKCASE - Call your local BRP dealership
10 420840620 STUD M8 X 175 - Call your local BRP dealership
11 420995301 Crankshaft
12 420827441 SPACER RING - Call your local BRP dealership This part replaces 420827440.
13 420932571 BALL BEARING - Call your local BRP dealership
14 420850050 Oil Seal
15 420827441 SPACER RING - Call your local BRP dealership This part replaces 420827440.
16 420944582 SHIM 0.3 - Call your local BRP dealership
16 420944583 SHIM 0.1 - Call your local BRP dealership
16 420944584 Shim 0.5
16 420944586 SHIM 0.2 - Call your local BRP dealership
17 420932581 Ball Bearing
18 420230425 Oil Seal
19 420897280 Cageless Label
20 420246055 Woodruff Key
21 420832320 Needle Bearing
22 420890071 Piston 72.16, 1st Oversize This part replaces 420888176.
22 420890072 Piston 72.41, 2nd Oversize This part replaces 420888177.
23 420915850 RECTANGULAR RING 72 MM, STD - Call your local BRP dealership
23 420915851 RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership
23 420915852 RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership
24 420815200 SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership
24 420815201 SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership
24 420815202 SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership
25 420916186 GUDGEON PIN - Call your local BRP dealership
26 420945735 Piston Circlip
27 420831858 Gasket 0.4 mm
28 420913219 Cylinder With Sleeve
29 293300026 O-Ring
30 420823788 Cylinder Head
31 420250315 Flat Washer 8.4 mm This part replaces 420250311.
32 420842010 DISTANCE NUT M8 X 27.5 - Call your local BRP dealership
33 420831861 INTAKE GASKET - Call your local BRP dealership
34 420867408 INTAKE SOCKET ASS?Y - Call your local BRP dealership
35 420945832 Washer-Lock Din.128 This part replaces 420945752.
36 205083044 Socket Head Screw M8 X 30
37 420860100 RUBBER FIN - Call your local BRP dealership
38 420929650 Drive Pin 5 X 10
39 420992069 Ens.Joint Etanc*Kit-Gasket This part replaces 420992068.
40 219704461 LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
41 219703000 Sealant Loctite 648 This part replaces 413711400.
42 413707000 Dow Corning 111, 150 g
43 420860097 NOISE DAMPER - Call your local BRP dealership
