Parts Catalog

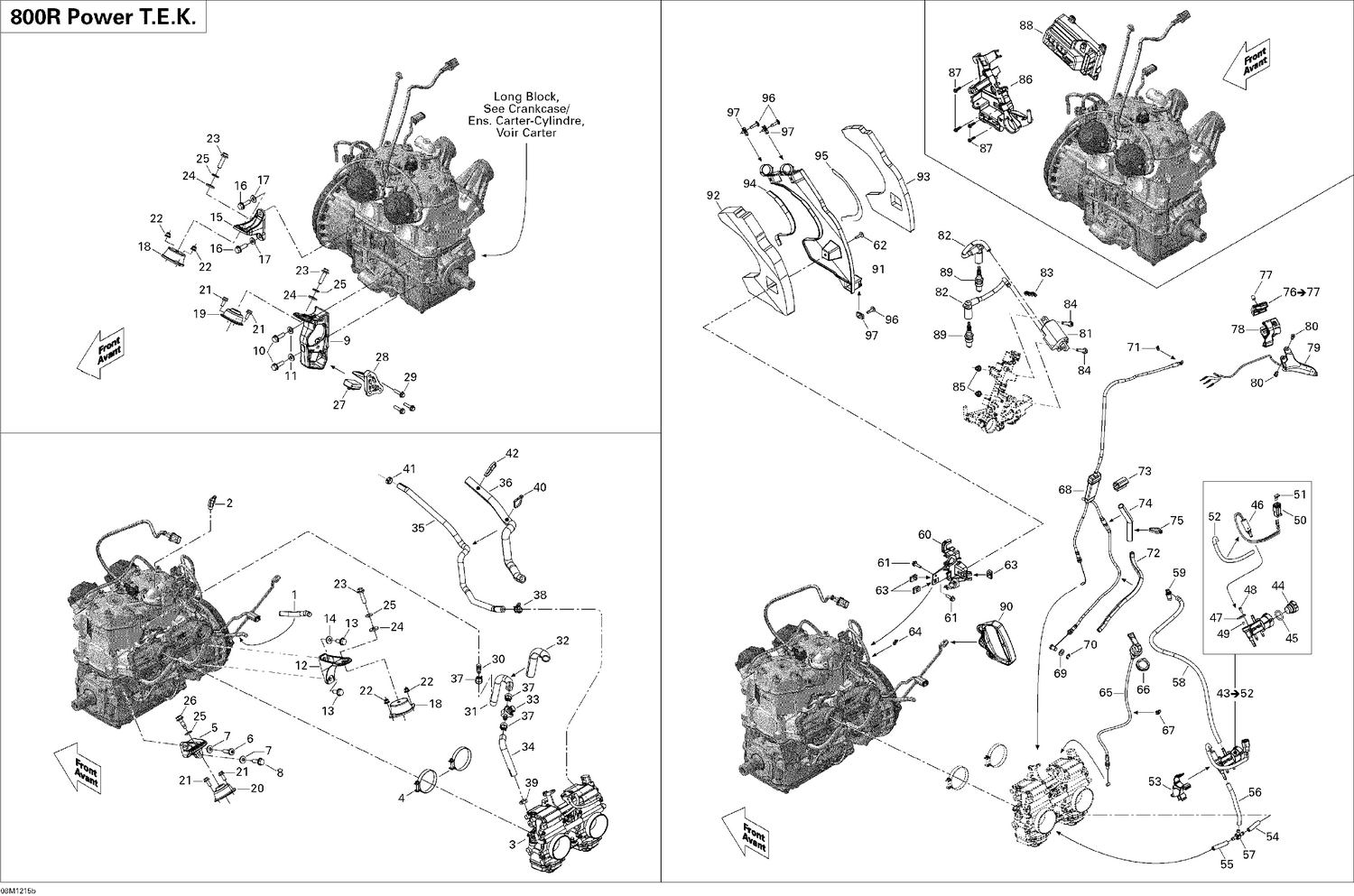

01- Engine 800RPTEK

Parts (94)

Ref	Part Number	Description
1	219704407	Tubing 10 MM 1000MM Long
2	293700045	ELBOW FITTING 90 - Call your local BRP dealership
3	403138805	CARBURATOR KIT, TM40-B397 - Call your local BRP dealership
4	512059835	Gemi Clamp
5	512060478	Rear Support, PTO
6	250000752	Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
7	234281474	Conical Spring Washer M8
8	207582586	Hex. Flange Screw M8 X 25, Scotch Grip
9	512060714	Front Support, PTO This part replaces 512060701.
10	207582586	Hex. Flange Screw M8 X 25, Scotch Grip
11	234281474	Conical Spring Washer M8
12	512060559	Rear Support, MAG
13	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
14	234281474	Conical Spring Washer M8
15	512060469	Front Support, MAG
16	207582586	Hex. Flange Screw M8 X 25, Scotch Grip
17	234281474	Conical Spring Washer M8
18	512060729	Rubber Mount
19	512061507	Vibration Damper This part replaces 512060387.
20	512060448	Rubber Mount
21	207561644	Hex. Flange Screw M6 X 16, Scotch Grip
22	233261414	Hex. Flange Elastic Nut M6 x 1.0
23	207683044	Hex. Flange Screw M8 X 30
24	503183200	Yellow, Washer
25	234281474	Conical Spring Washer M8
26	250000796	Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570.
27	512060766	Stopper
28	512060576	Stopper Support
29	207562544	Hex. Flange Screw M6 X 25
30	512060196	Male Connector 1/8"-27 NPT
31	512060357	HOSE FORMED ENGINE OUTLET - Call your local BRP dealership
32	219704408	Tubing 16 Mm 1000Mm Long
33	512059324	Valve 5/16”
34	512060353	Hose Formed
35	512060347	Hose Formed
36	219704408	Tubing 16 Mm 1000Mm Long
37	414655700	Spring Clamp
38	293650214	Norma Spring Clamp
39	293650125	Oetiker Clamp
40	414115200	Tie-Rap 180 mm
41	293650046	Oetiker Clamp
42	414115200	Tie-Rap 180 mm
44	270600009	CAP - Call your local BRP dealership
45	293300042	O-RING - Call your local BRP dealership
46	515175701	PRESSURE MANIFOLD HARNESS - Call your local BRP dealership
47	415061600	SOLENOID LOCK - Call your local BRP dealership
48	241140060	Screw K40 X 10
49	404161825	STARTER JET - Call your local BRP dealership
50	515175670	Female Terminal Housing, 2 Circuits
51	515175675	Female Lock, 2 Circuits
52	219704424	Vinyl Tubing, Low Temp 3000Mm Long
53	512060229	DPM SUPPORT - Call your local BRP dealership
54	219704410	Polyurethane Hose 10000Mm Long
55	219704410	Polyurethane Hose 10000Mm Long
56	219704410	Polyurethane Hose 10000Mm Long
57	414729300	T-FITTING - Call your local BRP dealership
58	219704410	Polyurethane Hose 10000Mm Long
59	414580700	Male Connector
60	512060298	Solenoid Support
61	207652044	Hex.Flange Screw M5 X 20
62	250000528	Torx Screw M5 X 20
63	250000958	Panel Nut M5 X 0.8 This part replaces 250000079.
64	293750001	Tie Wrap 94 mm
65	512060672	Choke Cable
66	512060671	Plastic Nut
67	414115200	Tie-Rap 180 mm
68	512060893	Throttle Cable This part replaces 512060547.
69	234081100	Flat Washer 8 mm, Nylon
70	414753500	Circlip
71	414274500	Circlip
72	219704425	Tubing 6 Mm 3000Mm Long
73	512060313	Protector
74	219704407	Tubing 10 MM 1000MM Long
75	414115200	Tie-Rap 180 mm
77	414440800	Socket Set Screw M8 X 10
78	512060860	Lower Housing This part replaces 512060430.
79	512061252	Throttle Handle Ass'y This part replaces 512060616.
80	732601143	Flange Screw
81	512059968	Ignition Coil
82	512060291	Cable
83	410914600	Plastic Clip, Spark Plug Wire
84	207563034	Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044.
85	233261414	Hex. Flange Elastic Nut M6 x 1.0
86	512060924	Coils Support This part replaces 512060745.
87	241151640	Hex. Flange Screw K50 X 2.24 X 16
88	512060684	CALIBRATED MODULE, 800R POWERT.E.K. - Call your local BRP dealership
89	415128524	Spark Plug NGK BR9ECS
90	512060136	Starter Grip
91	512060338	Noise Shield
92	512060341	Inner Noise Foam
93	512060342	Outer Noise Foam
94	512060574	Heat Shield
95	512060575	Heat Shield
96	250000528	Torx Screw M5 X 20
