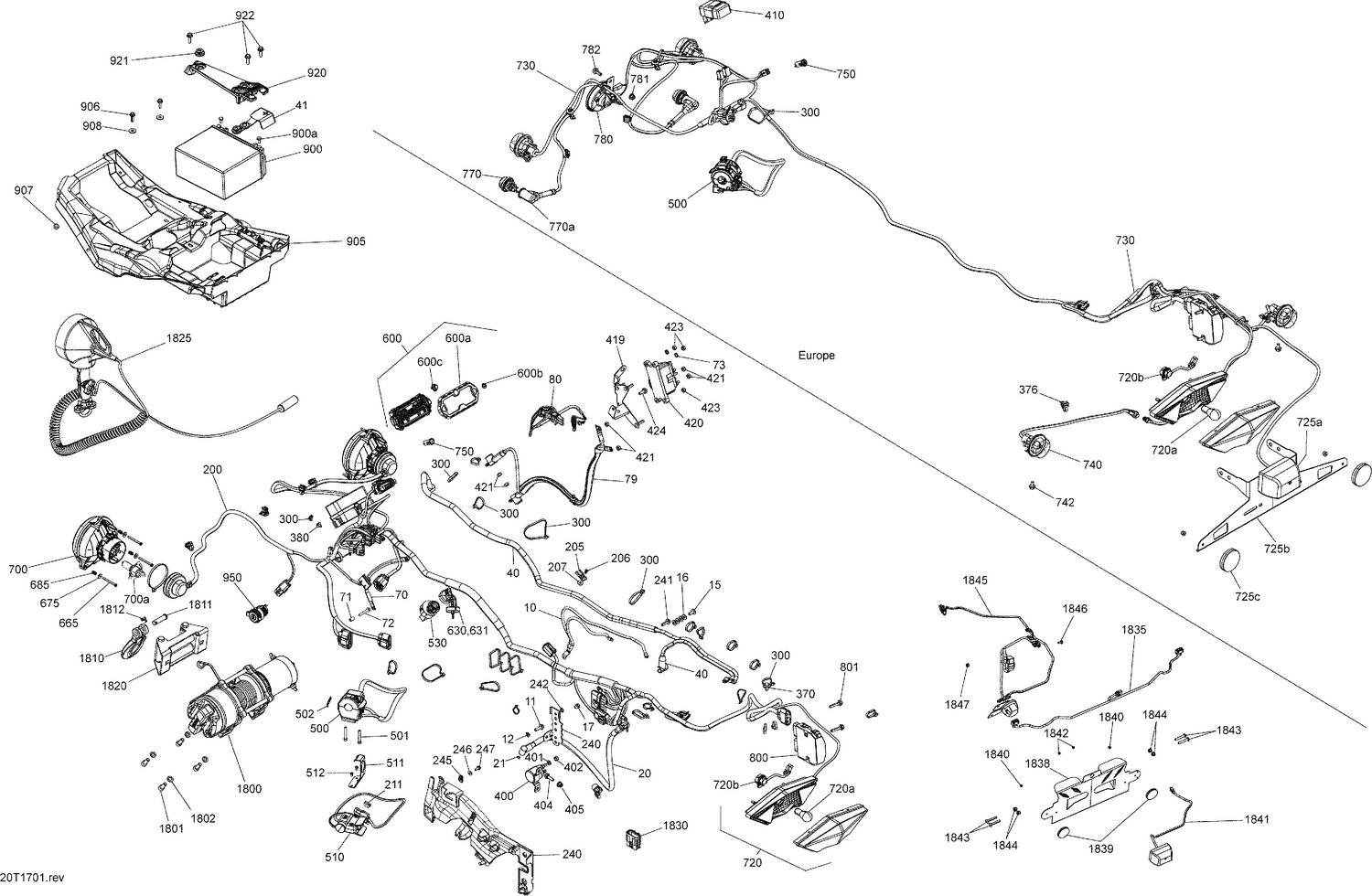

10- Electrical System - All Models
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 11 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 12 | 234161601 | Lock Washer Helical M6 |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 41 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 241 | 210262040 | Hex. Flange Screw M6 X 20 |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 300 | 293750001 | Tie Wrap 94 mm |
| 300 | 293750002 | Tie Wrap 142 mm |
| 300 | 293750008 | Tie Wrap 368 mm |
| 300 | 293750041 | Tie-rap 627 mm |
| 300 | 414115200 | Tie-Rap 180 mm |
| 370 | 293730040 | Mount Dart |
| 400 | 710007777 | Starter Relay This part replaces 710001364. |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561414 | Elastic Stop Nut M6 |
| 404 | 207662054 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 600a | 710001183 | Trim Ring Ass'y |
| 600b | 704904615 | BRP Logo13 mm This part replaces 704901270. |
| 600c | 715900265 | Button |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 675 | 517225900 | Flat Washer |
| 685 | 517168600 | Spring |
| 700a | 710000871 | Bulb, 12V 35/35W |
| 720a | 520000758 | Bulb |
| 720b | 515175494 | Male Housing, 3 Circuits |
| 801 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 710008370 | Battery Support This part replaces 710003990. |
| 906 | 210262050 | Hexagonal Head Screw |
| 907 | 293830005 | Rubber Bumper |
| 908 | 234062670 | Stainless Steel Flat Washer |
| 920 | 710009129 | Retaining Plate This part replaces 710002404. |
| 921 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 922 | 207662054 | Hex. Flange Screw M6 X 20 |
| 950 | 710001248 | DC Outlet |
