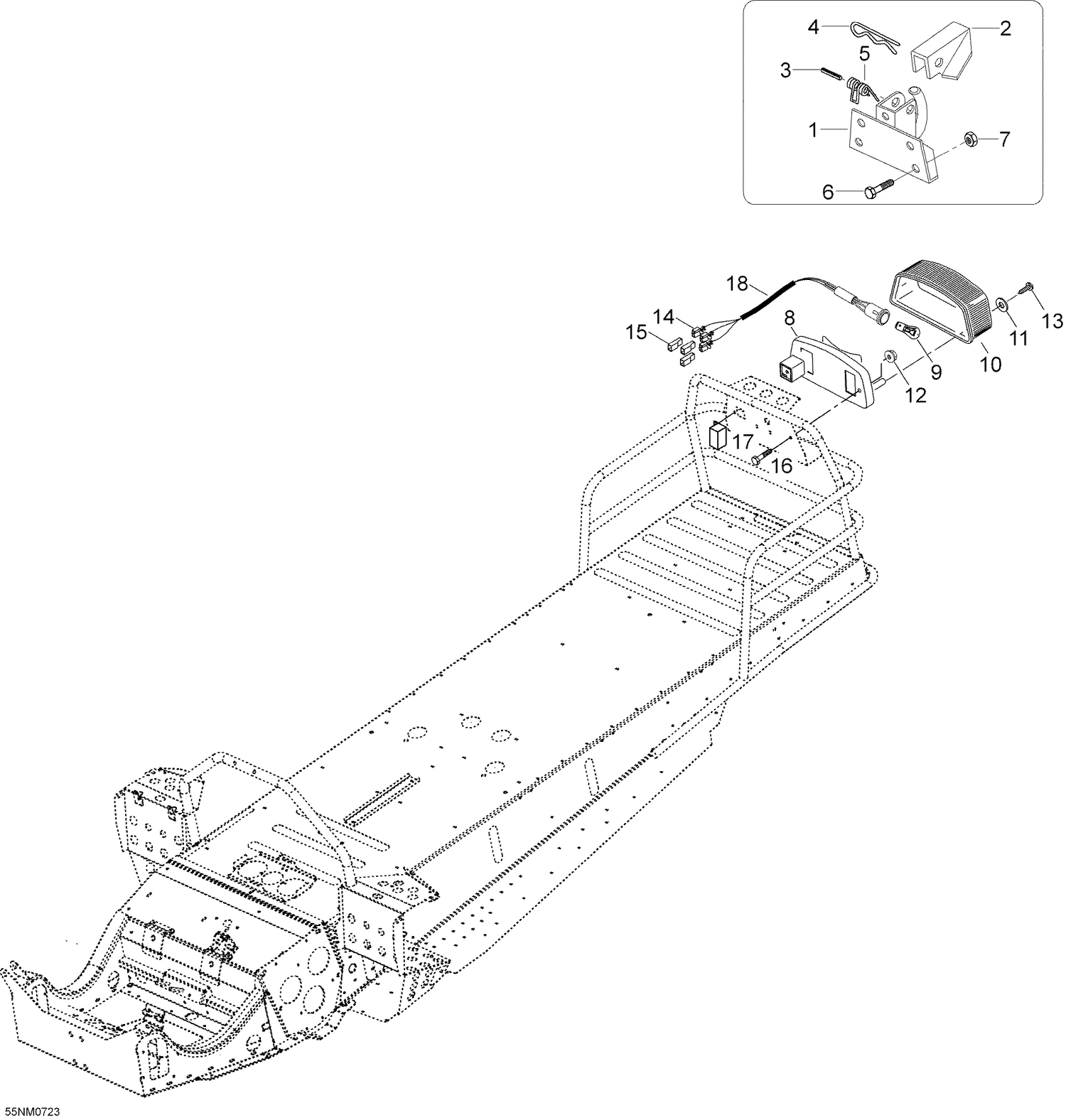

| Ref | Part Number | Description |
|---|
| 1 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 2 |
5440767 |
Lock |
| 3 |
41012 |
Spring Pin |
| 4 |
41029 |
Needle Pin |
| 5 |
545693 |
SPRING - Call your local BRP dealership |
| 6 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 8 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership |
| 9 |
520000758 |
Bulb This part replaces 410504000. |
| 10 |
414513700 |
Lens |
| 11 |
414516400 |
Washer - Call your local BRP dealership |
| 12 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 13 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 14 |
42178 |
Connector |
| 15 |
42179 |
Connector housing |
| 16 |
40032 |
Hex. screw M6 x 30 |
| 17 |
5345713 |
Cover - Call your local BRP dealership |
