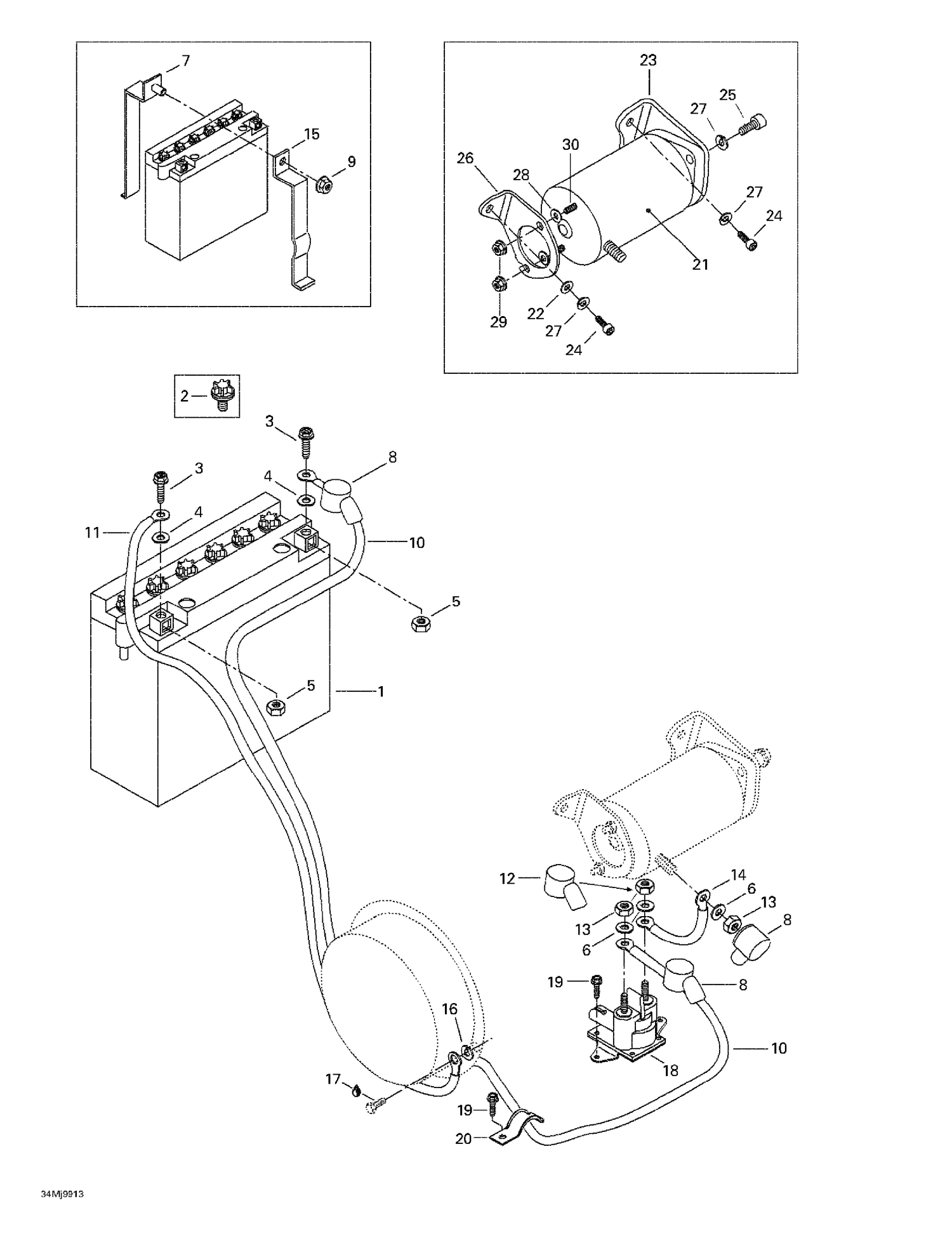

| Ref | Part Number | Description |
|---|
| 2 |
410300800 |
Battery Cap |
| 3 |
207161644 |
Hex. Screw M6 X 16 |
| 4 |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 5 |
232061414 |
Hex. Nut M6 This part replaces 228061045. |
| 6 |
234061410 |
Flat Washer 6 mm |
| 7 |
517290400 |
Steel Strip (Weld) |
| 8 |
570064200 |
PROTECTION CAP - Call your local BRP dealership |
| 9 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 10 |
515175153 |
Battery Wire |
| 11 |
515175151 |
Ground Wire |
| 12 |
278000020 |
PROTECTION CAP - Call your local BRP dealership |
| 13 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 14 |
515175101 |
Battery Wire |
| 15 |
517290402 |
Steel Strip |
| 16 |
394001900 |
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 17 |
293800005 |
Loctite 271, 10 ml |
| 18 |
278003012 |
Starter Relay This part replaces 278001376. |
| 19 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership This part replaces 732601067. |
| 20 |
414176000 |
Open Clamp |
| 21 |
515175305 |
Electric Starter |
| 22 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 23 |
512059081 |
Starter Bracket (PTO) |
| 24 |
205082044 |
Socket Head Screw M8 X 20 This part replaces 222982065. |
| 25 |
205082544 |
Socket Head Screw M8 X 25 This part replaces 222982565. |
| 26 |
512056600 |
Starter Bracket (MAG) |
| 27 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 28 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 29 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 30 |
278000170 |
RETAINER STUD - Call your local BRP dealership |
