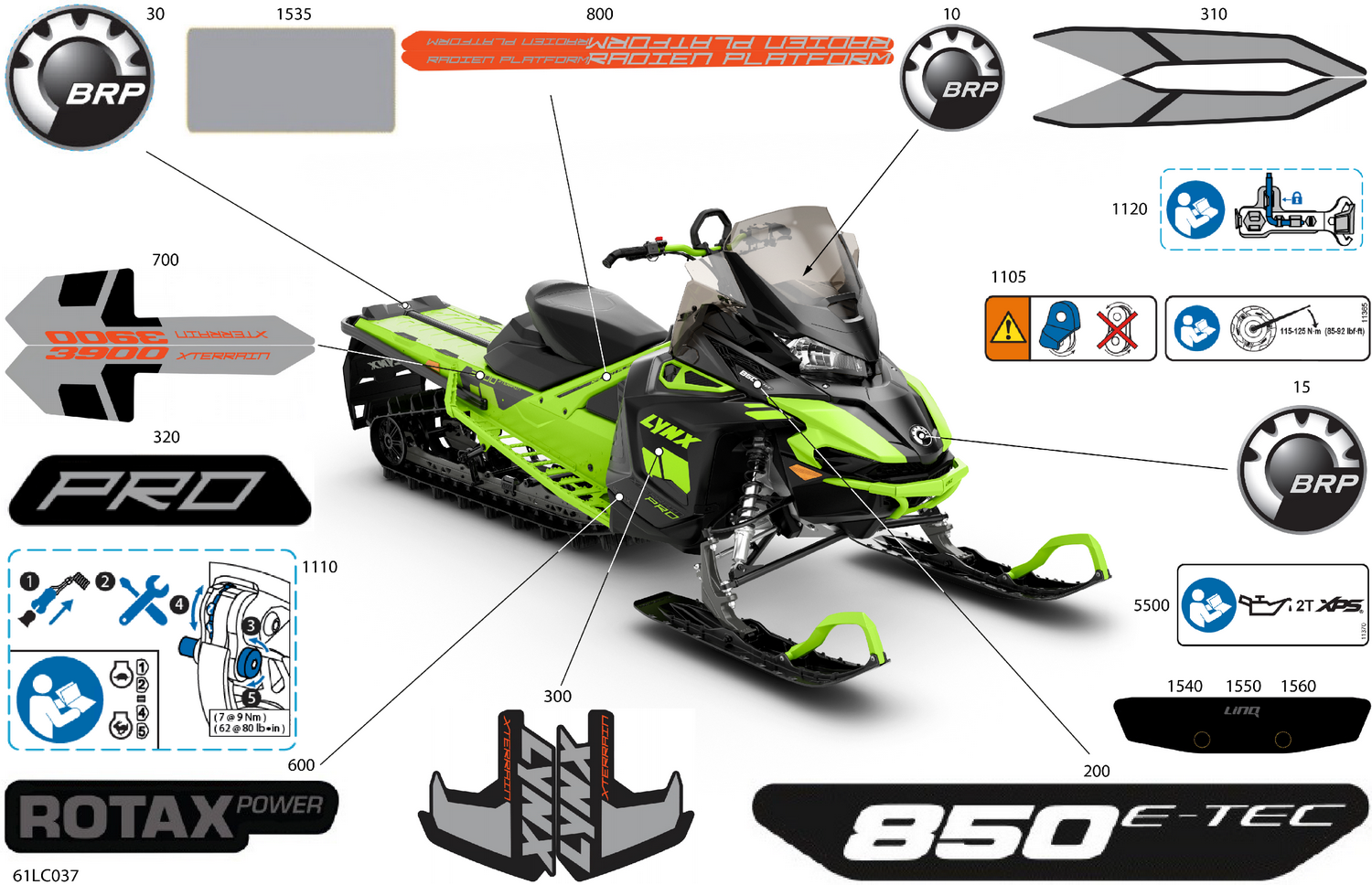

07- Body - Decals
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 516010651 | BRP Logo 20 MM x 2 MM |
| 15 | 704909040 | Emblem BRP Logo 48 MM UV |
| 30 | 704909040 | Emblem BRP Logo 48 MM UV |
| 200 | 516009560 | Upper Side Panel Decal 850 E-TEC |
| 300 | 516010629 | LH/RH Side Panel Decal "Lynx X Terrain" |
| 310 | 516010970 | LH/RH Side Panel Decal |
| 320 | 516010630 | LH/RH Side Panel Decal "PRO" |
| 600 | 516008760 | Decal "Rotax Power" |
| 700 | 516010631 | LH/RH Tunnel Decal |
| 800 | 516010636 | LH/RH Platform Decal |
| 1105 | 516011365 | Clutch Instruction Label |
| 1110 | 516011437 | Ramp Instruction Label |
| 1120 | 516011629 | Tool Instruction Label |
| 1535 | 516009954 | Protective Decal |
| 1540 | 516011681 | Decal Q-Link |
| 1550 | 516011681 | Decal Q-Link |
| 1560 | 516011681 | Decal Q-Link |
